onsemiDatasheet (PDF)

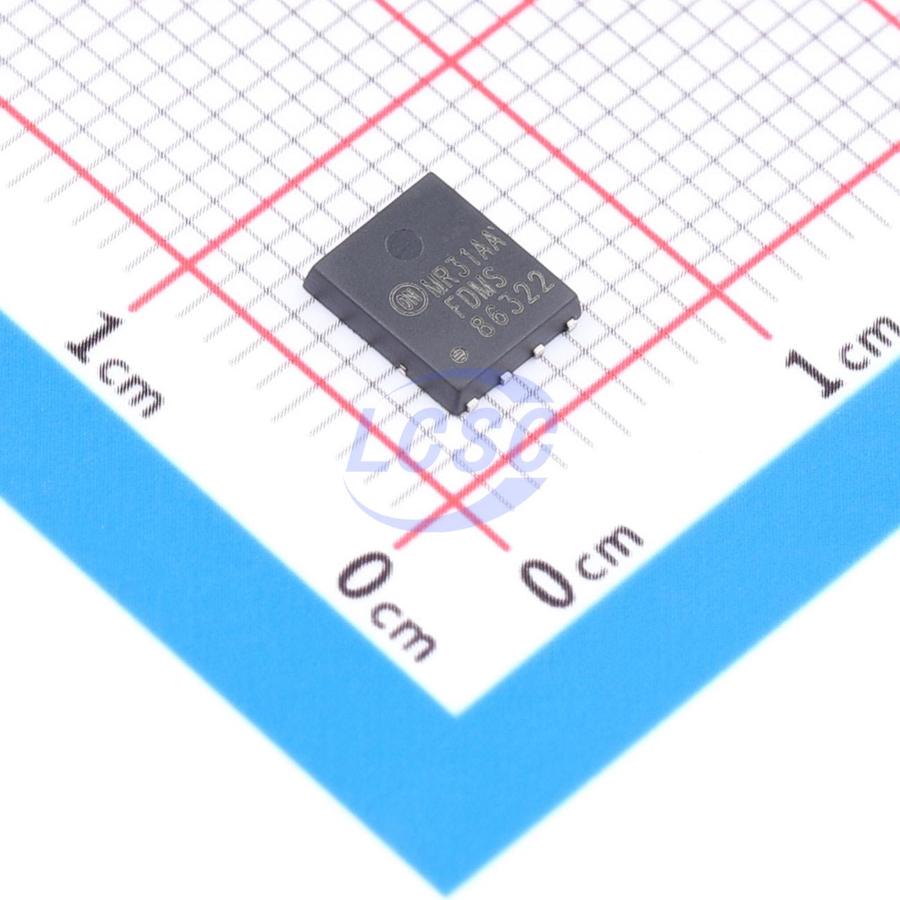

FDMS86322
N-Channel 80V 60A 104W Power56-8
Power56-8ROHS3 CompliantActive
MOSFET N-CH 80V 60A Power56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS86322
- Store part #
- C606111
- Package / case
- Power56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
154 in stock
#C606111
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹245.96 | ₹245.96 |
| 10+ | ₹208.69 | ₹2,086.90 |
| 30+ | ₹185.47 | ₹5,564.10 |
| 100+ | ₹161.63 | ₹16,163.00 |
| 500+ | ₹150.77 | ₹75,385.00 |
| 1,000+ | ₹146.30 | ₹1,46,300.00 |
1 × ₹245.96
₹245.96
excl. GST
₹290.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS86322
₹245.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 460pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 7.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
Overview
This N-Channel MOSFET is produced using advanced PowerTrench® process that incorporates Shielded Gate technology. This process has been optimized for the on-state resistance and yet maintain superior switching performance.
Applications
- DC-DC Conversion
Key features
- Shielded Gate MOSFET Technology
- Max rDS(on)=7.65 mΩ at VGS = 10 Vs , ID = 13 A
- Max rDS(on)=12 mΩ at VGS = 6 V; , ID = 7.2 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA8048#C508833HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,288 | ₹79.54 · 2,288 in stock | View |
 | FDMS86103L#C605043onsemi · PDFN-8(5.9x5.2) | onsemi | PDFN-8(5.9x5.2) | 3 | ₹346.60 · 3 in stock | View |
 | SP010N06GNK#C54102087Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 2,680 | ₹31.87 · 2,680 in stock | View |
| FDMS86101A#C605041onsemi · Power56-8 | onsemi | Power56-8 | 985 | ₹375.90 · 985 in stock | View | |
 | PGN10N100#C49384067HT(Shenzhen Jinyu Semicon) · PDFN-8L(5x6) | HT(Shenzhen Jinyu Semicon) | PDFN-8L(5x6) | 4,725 | ₹33.72 · 4,725 in stock | View |
