onsemiDatasheet (PDF)

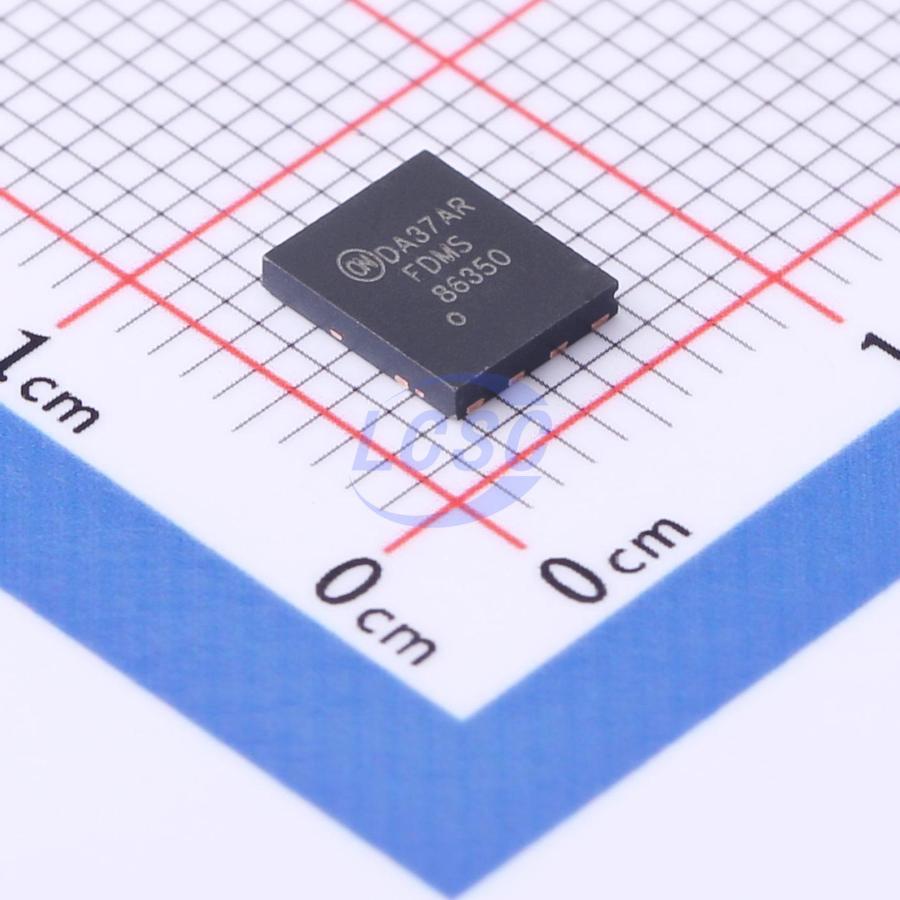

FDMS86350
N-Channel 80V 130A 156W Surface Mount Power(5x6)
Power(5x6)ROHS3 CompliantActive
MOSFET N-CH 80V 130A Power(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS86350
- Store part #
- C2847346
- Package / case
- Power(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
234 in stock
#C2847346
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.75 | ₹264.75 |
| 10+ | ₹222.22 | ₹2,222.20 |
| 30+ | ₹195.39 | ₹5,861.70 |
| 100+ | ₹168.14 | ₹16,814.00 |
| 500+ | ₹155.70 | ₹77,850.00 |
| 1,000+ | ₹150.25 | ₹1,50,250.00 |
1 × ₹264.75
₹264.75
excl. GST
₹312.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS86350
₹264.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.825nF
- Ciss-Input Capacitance
- 10.68nF
- Pd - Power Dissipation
- 156W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 130A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 3.2mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 155nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This N-Channel MOSFET is produced using advanced Power Trench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
Applications
- Primary MOSFET
- Synchronous Rectifier
- Load Switch
- Motor Control Switch
Key features
- Max rDS(on) = 2.4 mΩ at VGS = 10 V, ID = 25 A
- Max rDS(on) = 3.2 mΩ at VGS = 8 V, ID = 22 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
