onsemiDatasheet (PDF)

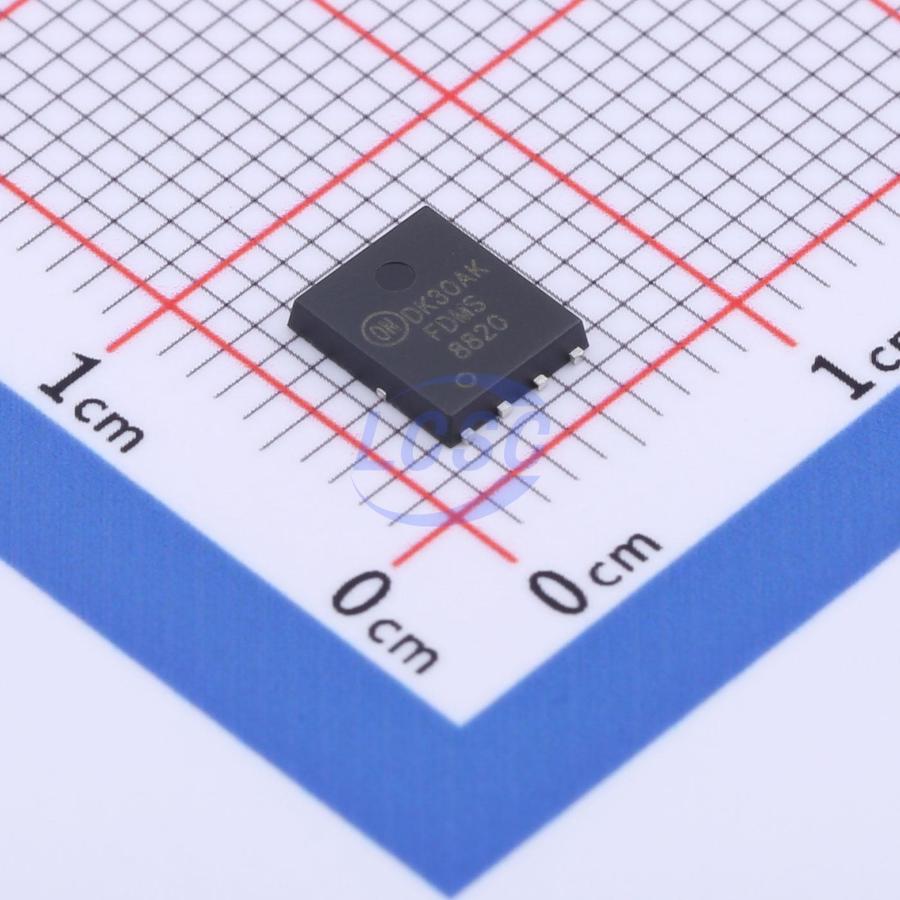

FDMS8820
N-Channel 30V 160A 78W Surface Mount Power-56-8
Power-56-8ROHS3 CompliantActive
MOSFET N-CH 30V 160A Power-56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS8820
- Store part #
- C236897
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C236897
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.56 | ₹134.56 |
| 10+ | ₹132.41 | ₹1,324.10 |
| 30+ | ₹130.90 | ₹3,927.00 |
| 100+ | ₹129.40 | ₹12,940.00 |
1 × ₹134.56
₹134.56
excl. GST
₹158.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS8820
₹134.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.725nF
- Ciss-Input Capacitance
- 5.315nF
- Pd - Power Dissipation
- 78W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 160A
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 2.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 88nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
This N-Channel MOSFET has been designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on), fast switching speed and body diode reverse recovery performance.
Applications
- VRM Vcore Switching For Desktop And Server
- OringFET / Load Switching
- DC-DC Conversion
Key features
- Max rDS(on)=2.0 mΩ at VGS = 10 Vs , ID = 28 A
- Max rDS(on)=2.4 mΩ at VGS = 4.5 Vz , ID = 25 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- Next generation enhanced body diode technology, engineered for soft recovery
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
