onsemiDatasheet (PDF)

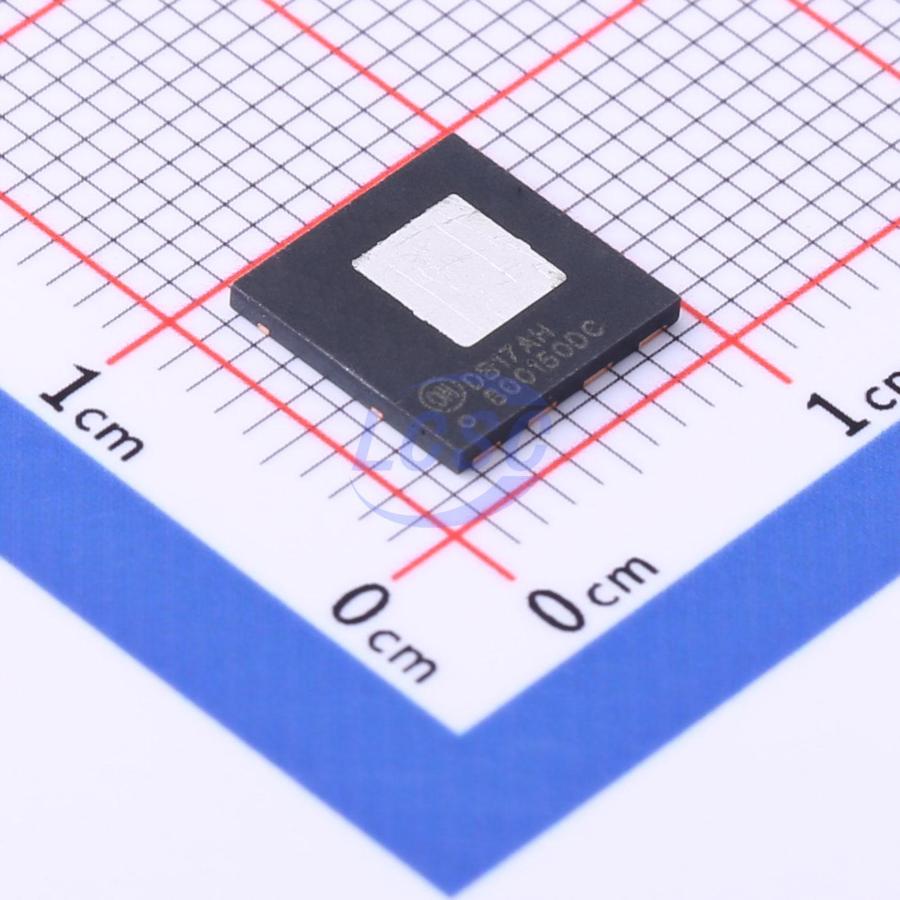

FDMT800150DC
N-Channel 150V 99A 156W Surface Mount DualCool-TM-88
DualCool-TM-88ROHS3 CompliantActive
MOSFET N-CH 150V 99A DualCool-TM-88
- Manufacturer
- onsemi
- Manufacturer part #
- FDMT800150DC
- Store part #
- C891113
- Package / case
- DualCool-TM-88
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C891113
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,090.63 | ₹1,090.63 |
| 10+ | ₹946.26 | ₹9,462.60 |
| 30+ | ₹858.24 | ₹25,747.20 |
| 100+ | ₹784.37 | ₹78,437.00 |
1 × ₹1,090.63
₹1,090.63
excl. GST
₹1,286.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMT800150DC
₹1,090.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 520pF
- Ciss-Input Capacitance
- 8.205nF
- Pd - Power Dissipation
- 156W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 99A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 77nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
This N-channel MOSFET is manufactured using the advanced POWERTRENCH process. The seamless integration of advanced silicon technology and DUAL COOL packaging delivers minimum r<sub>DS(on)</sub> while maintaining superior switching performance through extremely low junction-to-ambient thermal resistance.
Applications
- ORing FET / Load Switch
- Synchronous Rectification
- DC-DC Conversion
Key features
- Maximum rDS(on) = 6.5 mΩ (VGS = 10 V, ID = 15 A)
- Maximum rDS(on) = 8.4 mΩ (VGS = 6 V, ID = 13 A)
- Low rDS(on), advanced silicon packaging for high efficiency
- Next-generation advanced body diode technology, designed for soft recovery
- Thin 8 × 8 mm MLP package
- MSL1 robust package design
- 100% UIL tested
- Lead-free, halogen-free, RoHS compliant
