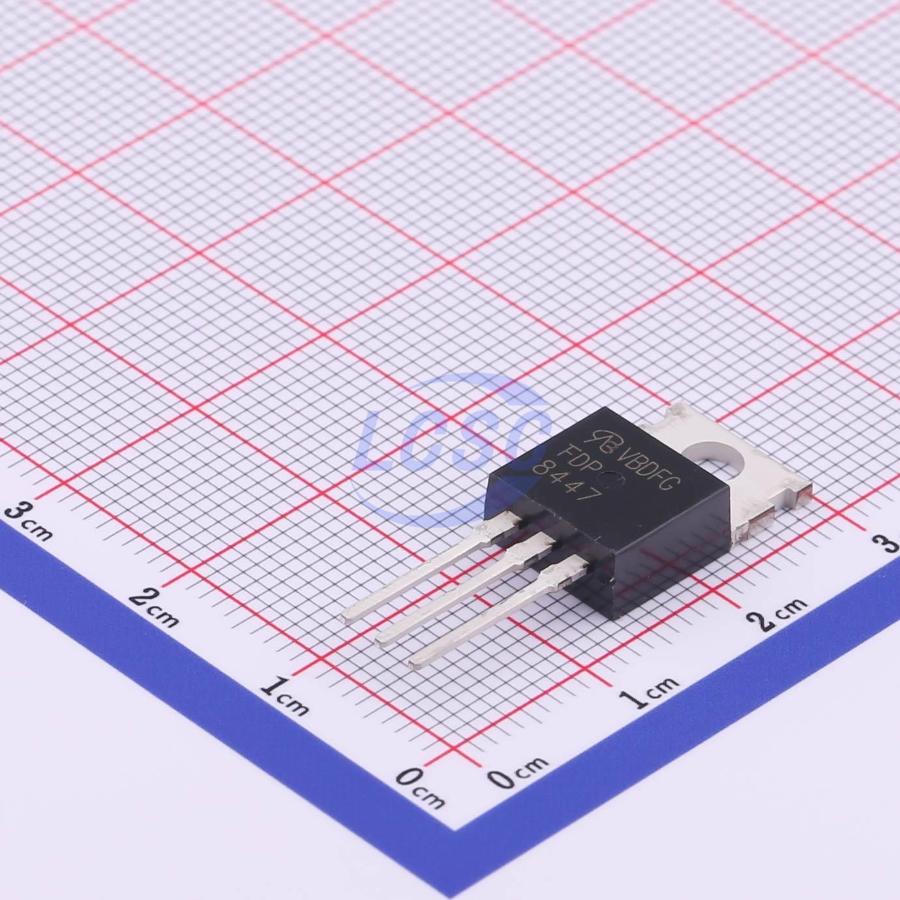

FDP8447L-VB
N-Channel 40V 110A 3.13W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 40V 110A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDP8447L-VB
- Store part #
- C709590
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C709590
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.39 | ₹107.39 |
| 10+ | ₹87.03 | ₹870.30 |
| 50+ | ₹69.87 | ₹3,493.50 |
| 100+ | ₹59.89 | ₹5,989.00 |
| 500+ | ₹53.70 | ₹26,850.00 |
| 1,000+ | ₹50.71 | ₹50,710.00 |
1 × ₹107.39
₹107.39
excl. GST
₹126.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP8447L-VB
₹107.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 750pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 3.13W
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.754 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
