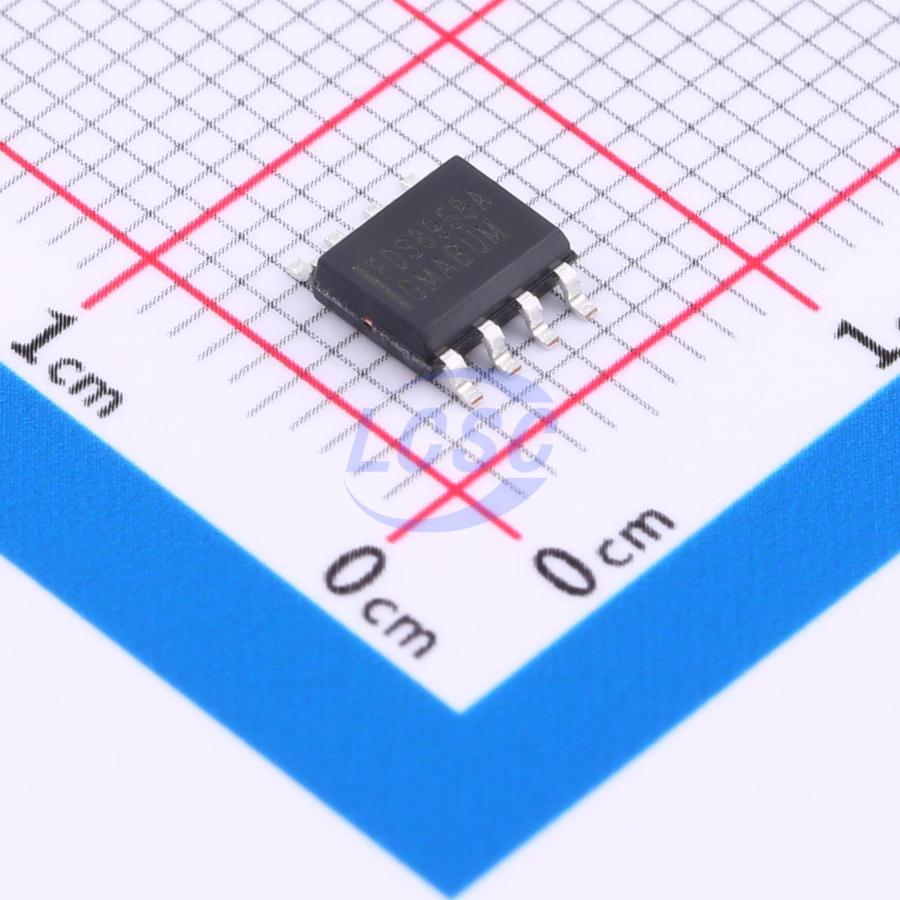

FDS8958A
2W 30V 7A 80mΩ@4.5V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOIC-8 Single FETs, MOSFETs RoHS
SOIC-8ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8958A
- Store part #
- C2931003
- Package / case
- SOIC-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C2931003
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.16 | ₹140.16 |
| 10+ | ₹116.48 | ₹1,164.80 |
| 30+ | ₹103.45 | ₹3,103.50 |
| 100+ | ₹88.67 | ₹8,867.00 |
| 500+ | ₹82.15 | ₹41,075.00 |
| 1,000+ | ₹79.10 | ₹79,100.00 |
1 × ₹140.16
₹140.16
excl. GST
₹165.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS8958A
₹140.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 145pF
- Ciss-Input Capacitance
- 575pF
- Pd - Power Dissipation
- 2W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 7A
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 80mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
These dual N-channel and P-channel enhancement-mode power MOSFETs are fabricated using Fairchild Semiconductor's advanced PowerTrench process, which is specifically optimized to minimize on-resistance while maintaining excellent switching performance. These devices are ideal for low-voltage and battery-powered applications requiring low on-state power dissipation and fast switching.
Applications
- Drivers: relays, solenoids, lamps, hammers, etc.
- Power converter circuits
- Load/power switches for portable devices
Key features
- Q1: N-Channel
- 7.0 A, 30 V, RDS(on) = 0.028 Ω at VGS = 10 V
- RDS(on) = 0.040 Ω at VGS = 4.5 V
- Q2: P-Channel
- -5 A, -30 V, RDS(on) = 0.052 Ω at VGS = -10 V
- RDS(on) = 0.080 Ω at VGS = -4.5 V
- High switching speed
- High power and current handling capability in widely used SMT packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP4606CP8#C22385399Siliup · SOP-8L | Siliup | SOP-8L | 1,830 | ₹14.80 · 1,830 in stock | View |
 | DOS4606H#C41367287DOINGTER · SOP-8D | DOINGTER | SOP-8D | 2,440 | ₹10.28 · 2,440 in stock | View |
 | WSP6067A#C2990868Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 2,790 | ₹40.55 · 2,790 in stock | View |
 | FH4606B#C2929035XIN FEI HONG · SO-8 | XIN FEI HONG | SO-8 | 11,405 | ₹7.92 · 11,405 in stock | View |
 | AP4606B#C2936848ALLPOWER · SOP-8 | ALLPOWER | SOP-8 | 760 | ₹35.43 · 760 in stock | View |
