VBsemi ElecDatasheet (PDF)

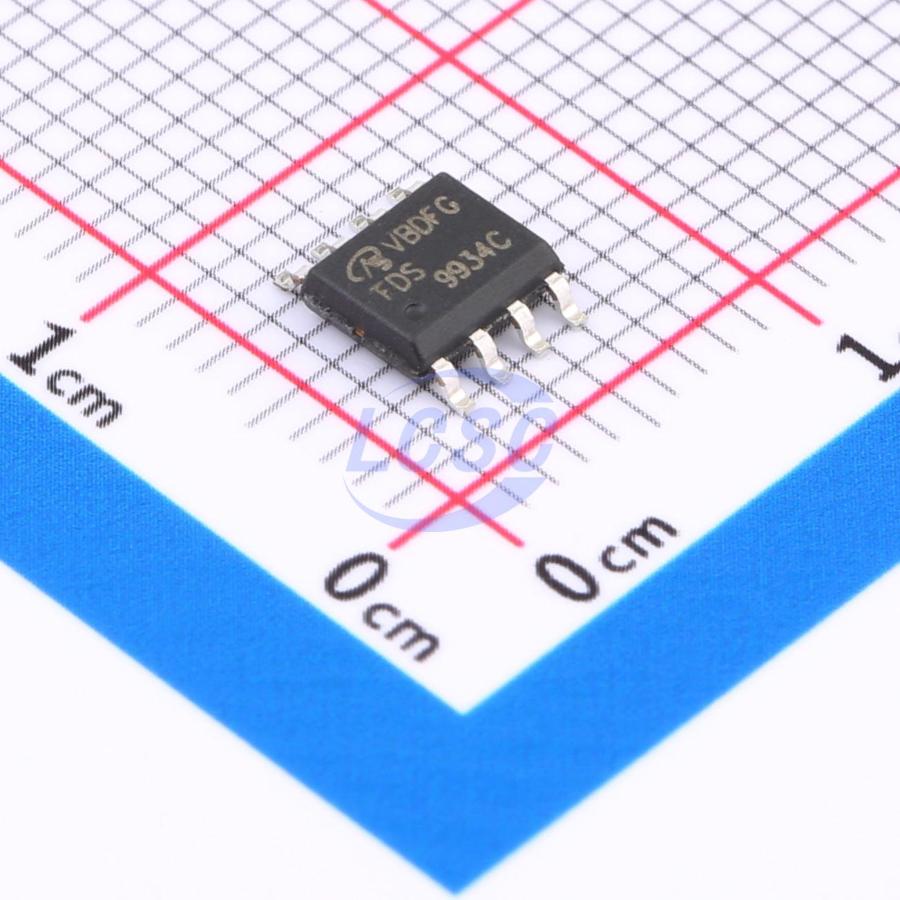

FDS9934C-NL-VB
N-Channel+P-Channel 30V 8A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS9934C-NL-VB
- Store part #
- C2680894
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C2680894
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.70 | ₹57.70 |
| 10+ | ₹46.60 | ₹466.00 |
| 30+ | ₹41.58 | ₹1,247.40 |
| 100+ | ₹35.71 | ₹3,571.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹57.70
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS9934C-NL-VB
₹57.70 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 95pF;115pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 510pF;620pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 33pF;57pF
- RDS(on)
- 18mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6.2nC@10V;18.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.152 g
Overview
Applications
- Motor drive
- Power bank
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STS7C4F30L-VB#C19626772VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹53.56 · 50 in stock | View |
 | SI9939DY-T1-E3-VB#C19632270VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹53.56 · 20 in stock | View |
 | W332-VB#C20417539VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹53.56 · 50 in stock | View |
 | NDS9958-NL-VB#C20417576VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹50.84 · 50 in stock | View |
 | FDS4542-NL-VB#C20626340VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
