onsemiDatasheet (PDF)

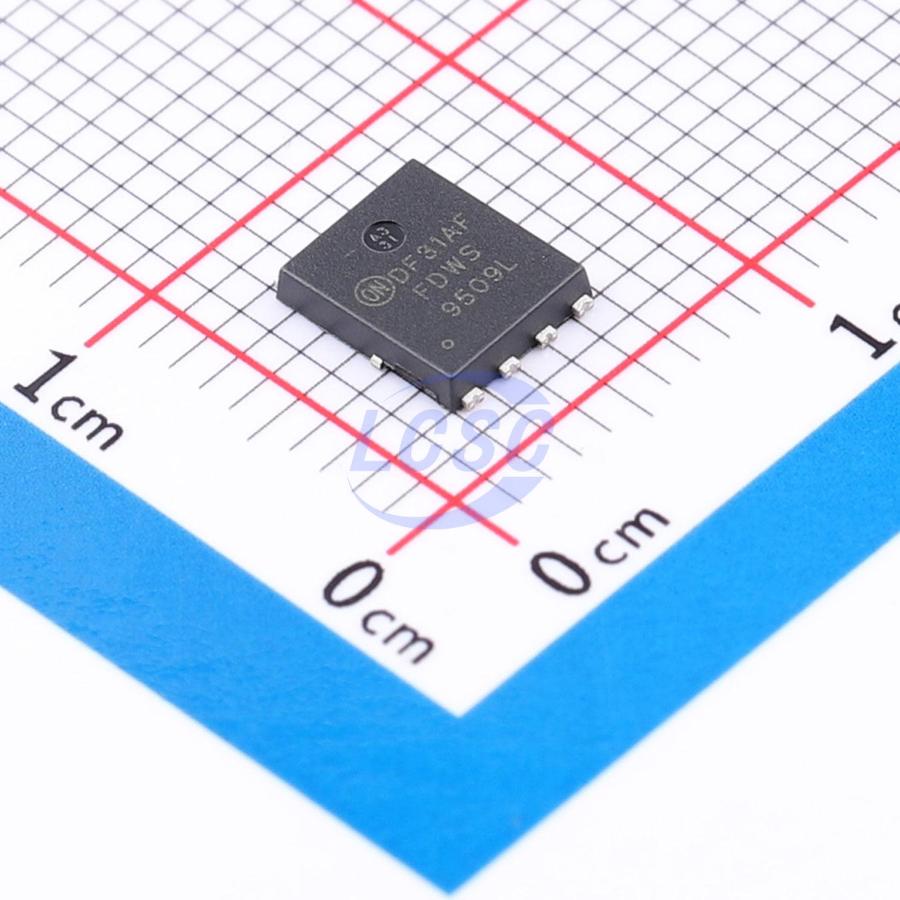

FDWS9509L-F085
107W 40V 65A 6.3mΩ@10V 1 P-Channel P-Channel Power-56 Single FETs, MOSFETs RoHS
Power-56ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDWS9509L-F085
- Store part #
- C605067
- Package / case
- Power-56
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C605067
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹628.33 | ₹628.33 |
| 10+ | ₹554.18 | ₹5,541.80 |
| 30+ | ₹510.18 | ₹15,305.40 |
| 100+ | ₹465.51 | ₹46,551.00 |
| 500+ | ₹444.91 | ₹2,22,455.00 |
| 1,000+ | ₹435.81 | ₹4,35,810.00 |
1 × ₹628.33
₹628.33
excl. GST
₹741.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDWS9509L-F085
₹628.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.23nF
- Ciss-Input Capacitance
- 3.36nF
- Pd - Power Dissipation
- 107W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 65A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.3mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 48nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.248 g
Overview
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Electronic steering systems
- Integrated starter-generators
- Distributed power architectures and VRM
- 12V system main switch
Key features
- Typical R<sub>DS(on)</sub> = 6.3 mΩ at V<sub>GS</sub> = -10 V, I<sub>D</sub> = -65 A
- Typical Q<sub>g(tot)</sub> = 48 nC at V<sub>GS</sub> = -10 V, I<sub>D</sub> = -65 A
- Single-pulse avalanche rated
- RoHS compliant
- AEC Q101 qualified
- Solderable flanks for AOI
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA100P04#C5349153HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2 | ₹76.75 · 2 in stock | View |
 | ND006PG#C55072648DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 380 | ₹40.22 · 380 in stock | View |
 | AGM40P75A#C5297498AGMSEMI · PDFN5x6-8L | AGMSEMI | PDFN5x6-8L | 365 | ₹59.88 · 365 in stock | View |
 | AGM60P90A#C5373095AGMSEMI · PDFN-8(5x6) | AGMSEMI | PDFN-8(5x6) | 1,384 | ₹58.95 · 1,384 in stock | View |
 | HSBA6119#C53244068HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 4 | ₹122.75 · 4 in stock | View |
