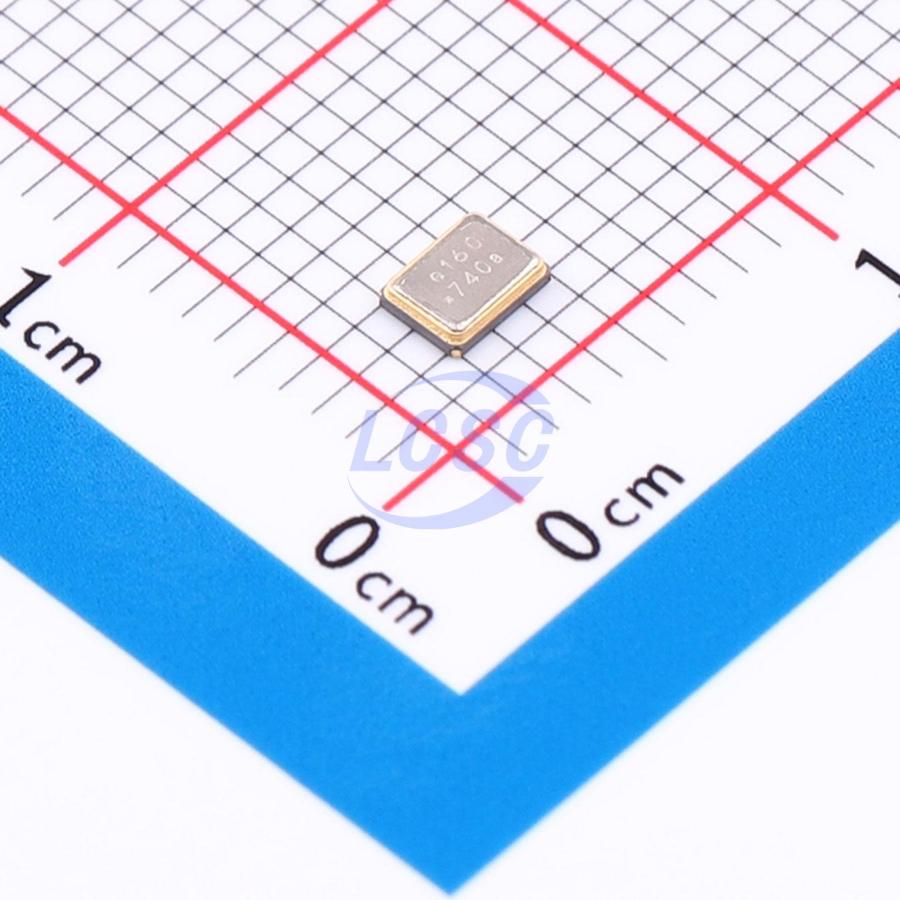

DIODES

FL1600152

Crystal 16MHz ±15ppm 8pF 120Ω SMD3225-4P

SMD3225-4PROHS3 CompliantActive

CRYSTAL 16MHz 8pF SMD

Manufacturer: DIODES
Manufacturer part #: FL1600152
Store part #: C6947917
Package / case: SMD3225-4P
Category: Crystals
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

38 in stock

#C6947917

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹110.96	₹110.96
10+	₹108.59	₹1,085.90
30+	₹106.87	₹3,206.10
100+	₹105.38	₹10,538.00

Quantity (min 1)

1 × ₹110.96

₹110.96

excl. GST

₹130.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FL1600152

₹110.96 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency Stability: ±40ppm
Operating Temperature: -40℃~+110℃
Load Capacitance: 8pF
Normal temperature Frequency Tolerance: ±15ppm
Equivalent Series Resistance(ESR): 120Ω
Frequency: 16MHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.103 g

Overview

The 4-pad FL series seam seal devices incorporate a sub-miniature AT-cut crystal resonator housed in a standard 3.2x2.5mm ceramic package. These compact crystals are ideal for surface mounting in densely populated or small formfactor PCB applications.

Applications

GSM, CDMA, GPRS
PCMCIA Cards
Portable / hand-held PCs
Notebook PC
HDD
GPS
Bluetooth
Wireless LAN
UWB
ZigBee
Digital Tuner

Key features

Rugged AT-cut crystal construction
Miniature 3.2×2.5mm ceramic package
Available on tape & reel; 8mm tape, 3000 units per reel
Pb-free and RoHS/Green compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NX3225SA-16.000M-STD-CRS-2#C2908117NDK · SMD3225-4P	NDK	SMD3225-4P	On request	₹56.19 · 0 in stock	View
NX3225SA-16MHz-STD-CSR-6#C880097NDK · SMD3225-4P	NDK	SMD3225-4P	11,897	₹65.55 · 11,897 in stock	View
TZ3604A#C5360874TST · SMD3225-4P	TST	SMD3225-4P	2,965	₹38.35 · 2,965 in stock	View
M16000B222#C258944ECEC(ZheJiang E ast Crystal Elec) · SMD3225-4P	ECEC(ZheJiang E ast Crystal Elec)	SMD3225-4P	770	₹9.39 · 770 in stock	View
SX3B16.000F0810F30#C41369901SCTF · SMD3225-4P	SCTF	SMD3225-4P	3,195	₹11.54 · 3,195 in stock	View
