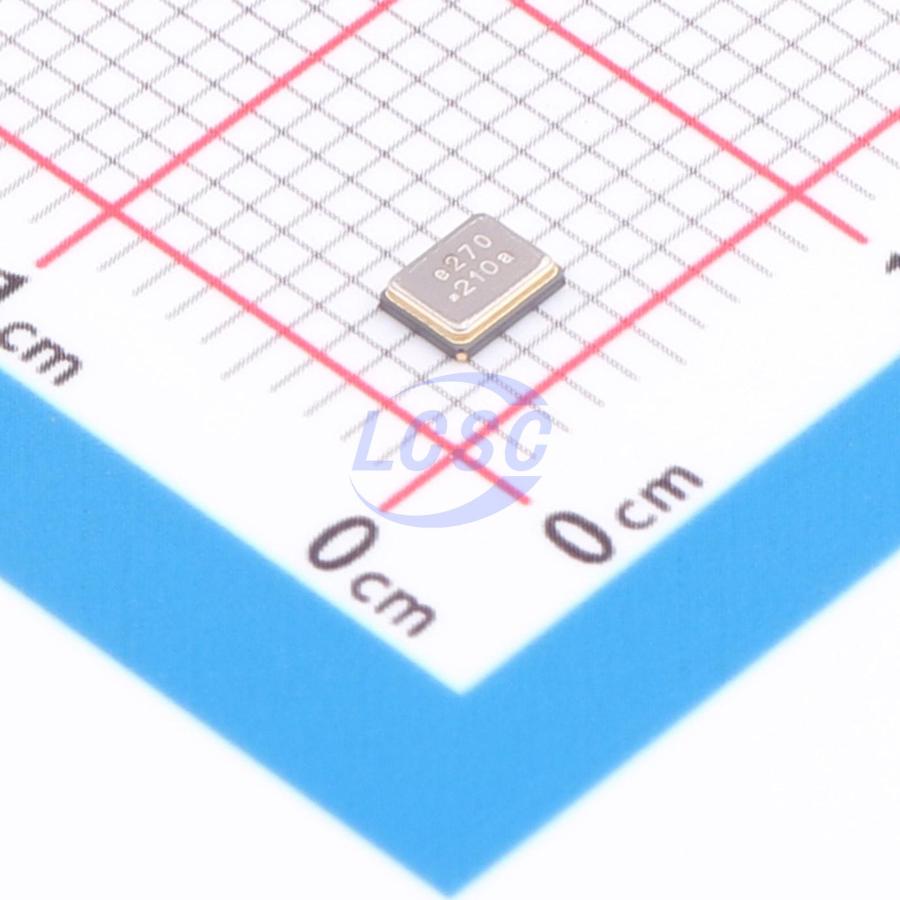

DIODES

FL2700102Z

±30ppm 12pF ±30ppm SMD3225-4P Crystals RoHS

SMD3225-4PROHS3 CompliantActive

Manufacturer: DIODES
Manufacturer part #: FL2700102Z
Store part #: C1986023
Package / case: SMD3225-4P
Category: Crystals
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C1986023

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹114.78	₹114.78
10+	₹111.78	₹1,117.80
30+	₹109.85	₹3,295.50
100+	₹107.92	₹10,792.00

Quantity (min 1)

1 × ₹114.78

₹114.78

excl. GST

₹135.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FL2700102Z

₹114.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency Stability: ±30ppm
Operating Temperature: -20℃~+70℃
Load Capacitance: 12pF
Normal temperature Frequency Tolerance: ±30ppm
Equivalent Series Resistance(ESR): 60Ω
Frequency: 27MHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.308 g

Overview

The 4-pad FL series seam seal devices incorporate a sub-miniature AT-cut crystal resonator housed in a standard 3.2x2.5mm ceramic package. These compact crystals are ideal for surface mounting in densely populated or small formfactor PCB applications.

Applications

GSM, CDMA, GPRS
PCMCIA Cards
Portable / hand-held PCs
Notebook PC
HDD
GPS
Bluetooth
Wireless LAN
UWB
ZigBee
Digital Tuner

Key features

Rugged AT-cut crystal construction
Miniature 3.2×2.5mm ceramic package
Available on tape & reel; 8mm tape, 3000 units per reel
Pb-free and RoHS/Green compliant
