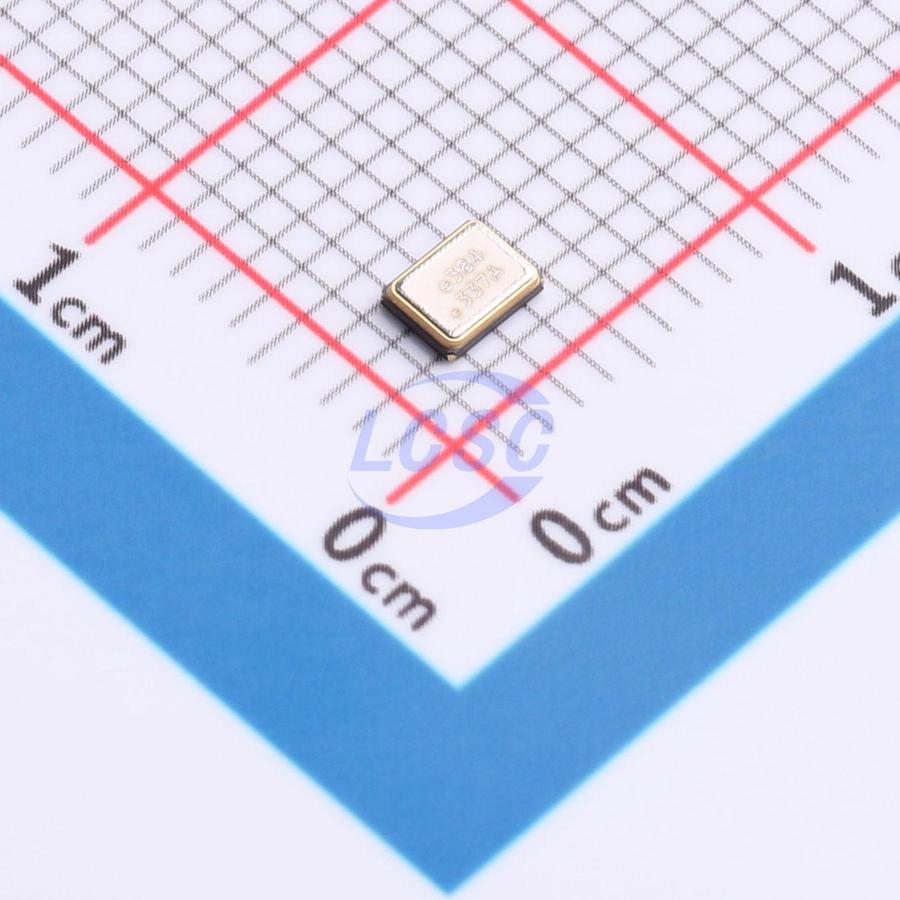

DIODES

FL3840017

Crystal 38.4MHz ±20ppm 10pF 30Ω SMD3225-4P

SMD3225-4PROHS3 CompliantActive

CRYSTAL 38.4MHz 10pF SMD

Manufacturer: DIODES
Manufacturer part #: FL3840017
Store part #: C7192666
Package / case: SMD3225-4P
Category: Crystals
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

27 in stock

#C7192666

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹140.15	₹140.15
10+	₹137.10	₹1,371.00
30+	₹135.07	₹4,052.10
100+	₹133.04	₹13,304.00

Quantity (min 1)

1 × ₹140.15

₹140.15

excl. GST

₹165.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FL3840017

₹140.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency Stability: ±20ppm
Operating Temperature: -40℃~+85℃
Load Capacitance: 10pF
Normal temperature Frequency Tolerance: ±20ppm
Equivalent Series Resistance(ESR): 30Ω
Frequency: 38.4MHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The 4-pad FL series seam seal devices incorporate a sub-miniature AT-cut crystal resonator housed in a standard 3.2x2.5mm ceramic package. These compact crystals are ideal for surface mounting in densely populated or small formfactor PCB applications.

Applications

GSM, CDMA, GPRS
PCMCIA Cards
Portable / hand-held PCs
Notebook PC
HDD
GPS
Bluetooth
Wireless LAN
UWB
ZigBee
Digital Tuner

Key features

Rugged AT-cut crystal construction
Miniature 3.2×2.5mm ceramic package
Available on tape & reel; 8mm tape, 3000 units per reel
Pb-free and RoHS/Green compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
E3SB38E0X1806E#C5241174HOSONIC · SMD3225-4P	HOSONIC	SMD3225-4P	595	₹19.51 · 595 in stock	View
K3A384001010#C368752KYX · SMD3225-4P	KYX	SMD3225-4P	155	₹14.09 · 155 in stock	View
YC384MDBCD2XT#C54422111Yajingxin · SMD3225-4P	Yajingxin	SMD3225-4P	150	₹8.94 · 150 in stock	View
XTM32038400GT00351001#C42464322TOGNJING · SMD3225-4P	TOGNJING	SMD3225-4P	1,950	₹7.37 · 1,950 in stock	View
RL384001449#C19173150TROQ · SMD3225-4P	TROQ	SMD3225-4P	1,840	₹11.14 · 1,840 in stock	View
