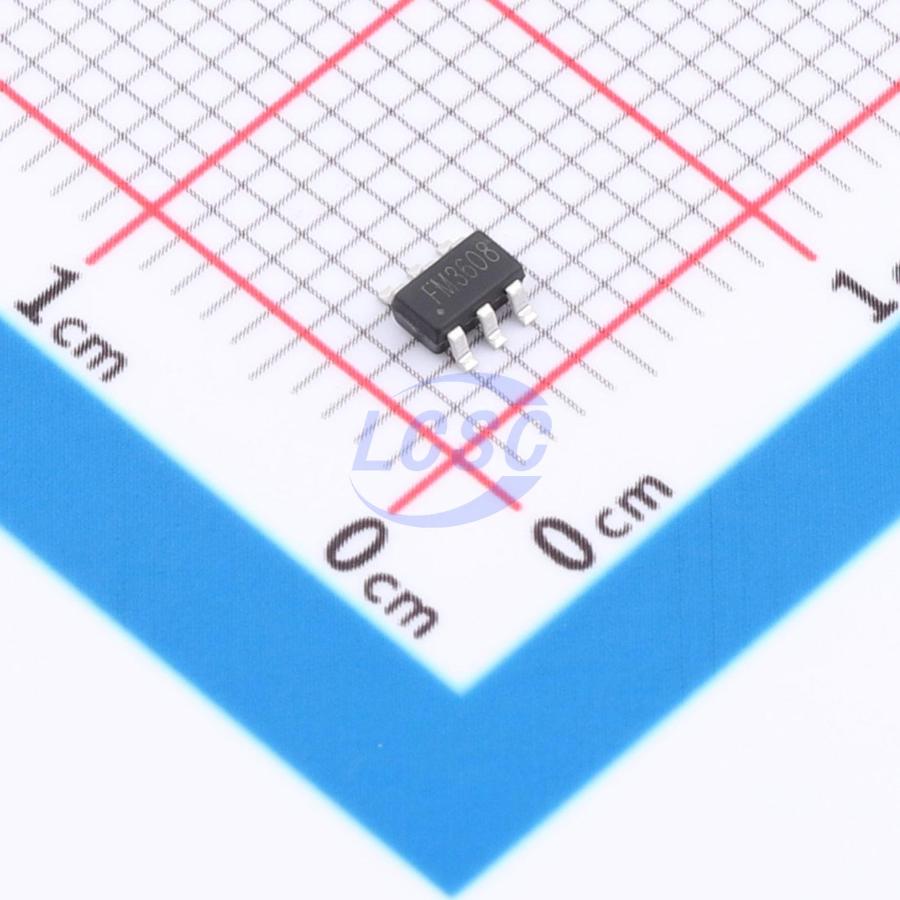

FM3608

Boost Switching Regulator IC Adjustable 1 Output 2A SOT-23-6

SOT-23-6ROHS CompliantActive

Current-mode DC-DC boost converter IC

Manufacturer: FM
Manufacturer part #: FM3608
Store part #: C45662360
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C45662360

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.49	₹94.90
100+	₹7.49	₹749.00
300+	₹6.48	₹1,944.00
3,000+	₹5.74	₹17,220.00
6,000+	₹5.13	₹30,780.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹9.49

₹94.90

excl. GST

₹111.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FM3608

₹94.90 for 10 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.3MHz~1.7MHz
Function: Boost
Number of Outputs: 1
Features: Load disconnect;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~8V
Output Current: 2A
Quiescent Current: 170uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

FM3608 is a current-mode boost DC-DC converter. Its PWM circuit with a built-in 0.2Ω power MOSFET delivers high power efficiency. The internal compensation network also reduces external component count by up to 6. The non-inverting input of the error amplifier is connected to a 0.6V precision reference voltage, and the internal soft-start function minimizes inrush current. The FM3608 is available in a SOT23-6 package, saving PCB space in applications.
