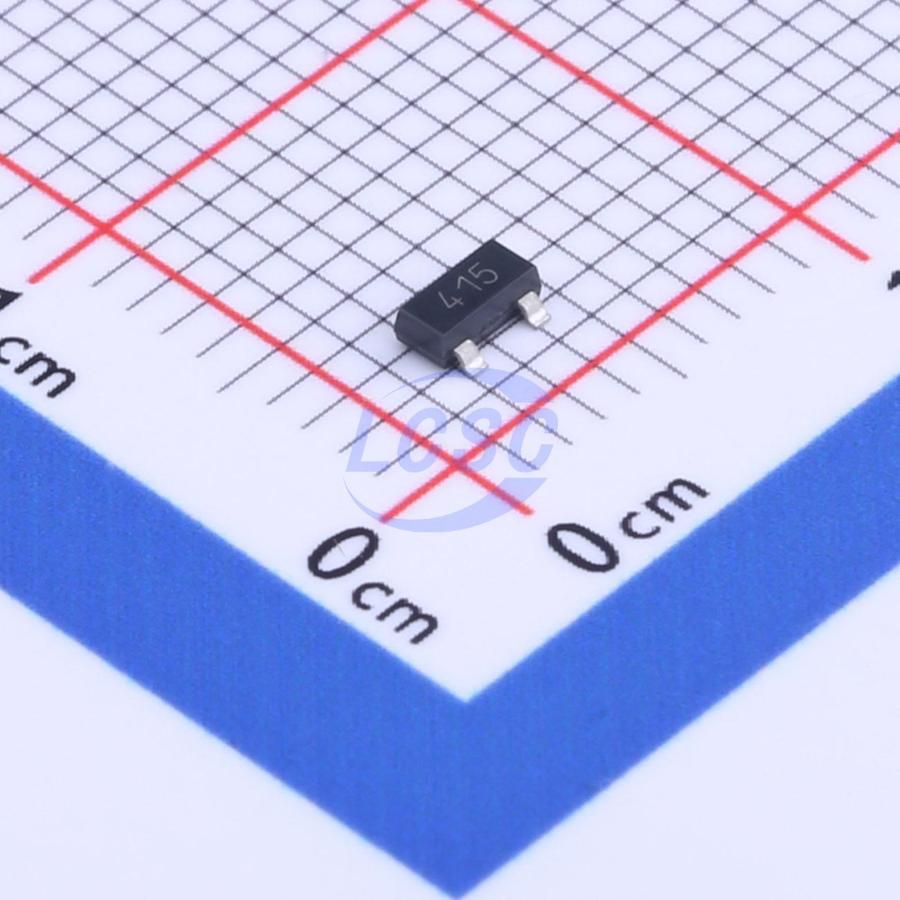

FMMT415TD
Bipolar (BJT) Transistor NPN 100V 500mA 40MHz 500mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 100V 500mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- FMMT415TD
- Store part #
- C460073
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
374 in stock
#C460073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,143.32 | ₹1,143.32 |
| 10+ | ₹973.07 | ₹9,730.70 |
| 30+ | ₹869.34 | ₹26,080.20 |
| 100+ | ₹782.37 | ₹78,237.00 |
1 × ₹1,143.32
₹1,143.32
excl. GST
₹1,349.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
FMMT415TD
₹1,143.32 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 10uA
- Transition frequency(fT)
- 40MHz
- Collector - Emitter Voltage VCEO
- 100V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 25
- Current - Collector(Ic)
- 500mA
- Pd - Power Dissipation
- 500mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The FMMT415/417 are NPN silicon planar bipolar transistors designed for operating in avalanche mode. Tight process control and low inductance packaging combine to produce high-current pulses with fast edges.
Applications
- Laser Diode Drivers for Ranging and Measurement (LIDAR)
- Radar Systems
- Fast Edge Switch Generator
- High Speed Pulse Generators
Key features
- Avalanche Transistor
- 60A Peak Avalanche Current (Pulse width = 20ns)
- BV<sub>CES</sub> > 260V (415) & 320V (417)
- BV<sub>CEO</sub> > 100V
- Specifically designed for Avalanche mode operation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
