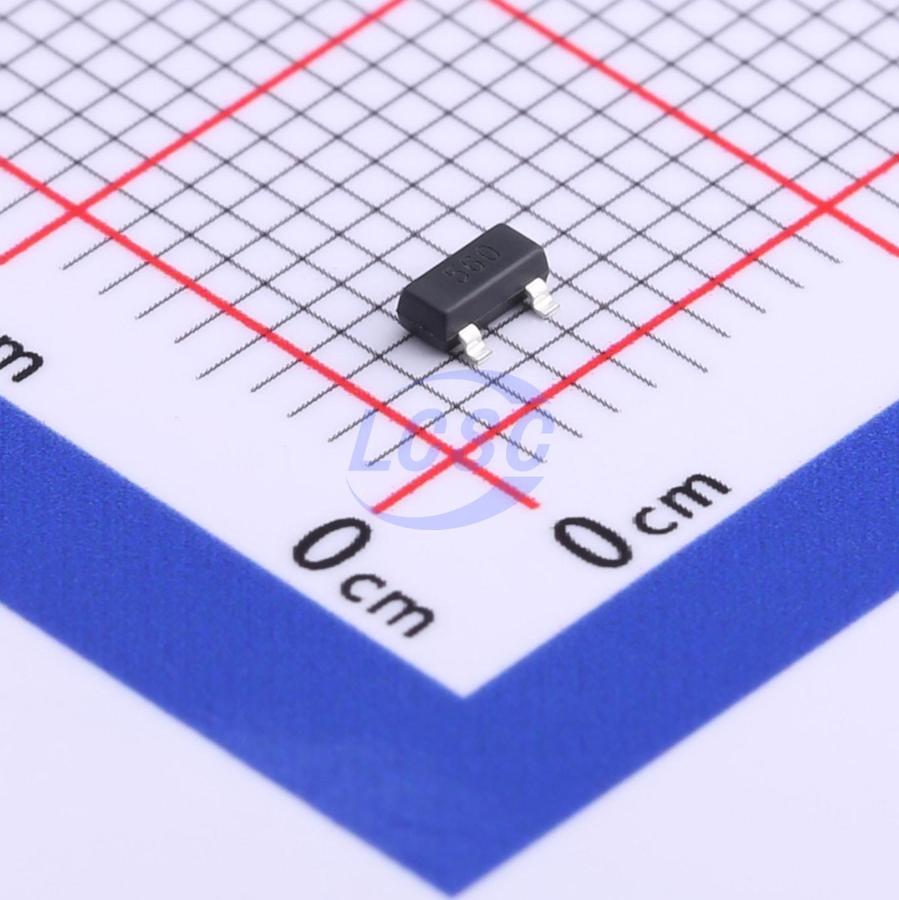

FMMT560QTA
Bipolar (BJT) Transistor PNP 500V 150mA 60MHz 500mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS PNP 500V 150mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- FMMT560QTA
- Store part #
- C526620
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C526620
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.23 | ₹136.15 |
| 50+ | ₹26.79 | ₹1,339.50 |
| 150+ | ₹26.49 | ₹3,973.50 |
| 500+ | ₹26.20 | ₹13,100.00 |
5 × ₹27.23
₹136.15
excl. GST
₹160.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FMMT560QTA
₹136.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 60MHz
- Collector - Emitter Voltage VCEO
- 500V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 80
- Current - Collector(Ic)
- 150mA
- Pd - Power Dissipation
- 500mW
- Configuration
- Standalone
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This bipolar junction transistor (BJT) has been designed to meet the stringent requirements of automotive applications.
Key features
- BVCEO > -500V
- lC = -150mA high Continuous Collector Current
- lCM up to -500mA Peak Pulse Current
- Excellent hFE Characteristics up to lC = -100mA
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities
