Advanced Analog Technology

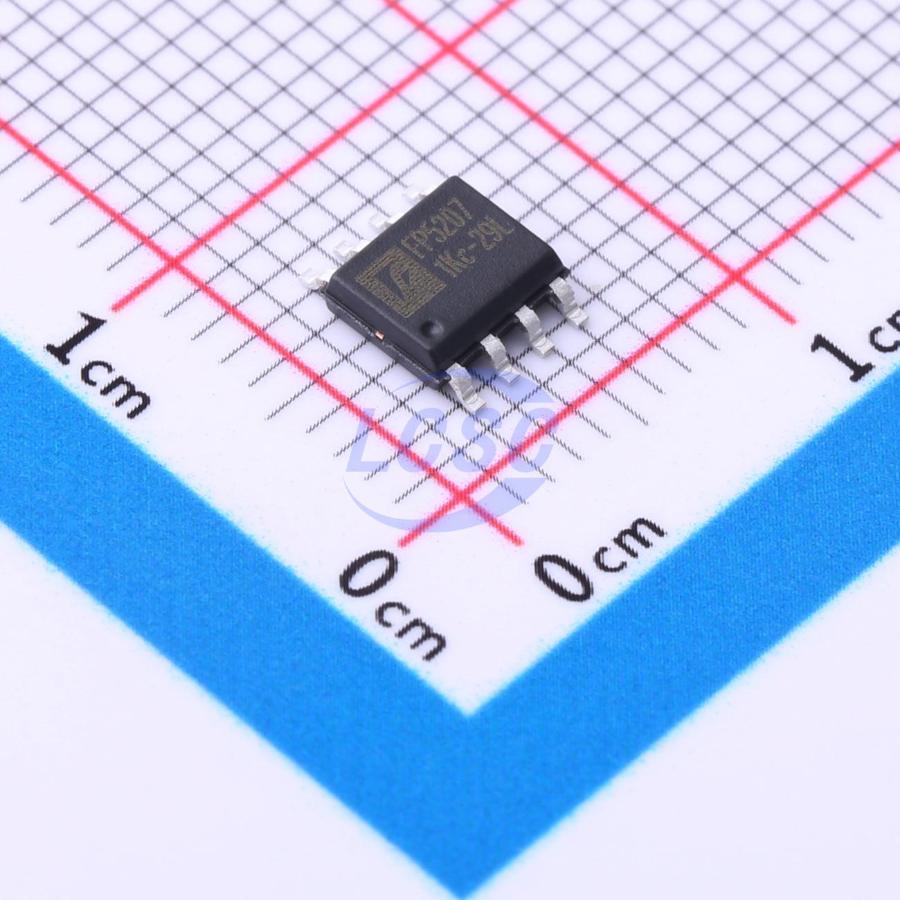

FP5207XR-G1

100kHz~1MHz Boost Adjustable ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

ESOP-8ROHS CompliantActive

Non-Synchronous PWM Boost Controller

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP5207XR-G1
Store part #: C2897211
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,960 in stock

#C2897211

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹80.44	₹80.44
10+	₹64.62	₹646.20
30+	₹57.68	₹1,730.40
100+	₹49.23	₹4,923.00
500+	₹44.45	₹22,225.00
1,000+	₹42.07	₹42,070.00

Quantity (min 1)

1 × ₹80.44

₹80.44

excl. GST

₹94.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP5207XR-G1

₹80.44 for 1 + GST

Specifications

Operating Temperature: -25℃~+85℃
Frequency - Switching: 100kHz~1MHz
Function: Boost
Number of Outputs: 1
Features: Adjustable current limiting;External compensation;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 5V~24V
Switch tube (built-in/external): External
Quiescent Current: 800uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.259 g

Overview

The FP5207 is boost topology switching regulator for wide operating voltage applications. It provides built-in gate driver pin for driving external N-MOSFET. The non-inverting input of error amplifier connects to a 1.2V precision reference voltage. It has programmable switching frequency set by external resistor, and programmable inductor peak current limit connects a resistor from CS to GND. Current mode control and external compensation network make is easy and flexible to stabilize the system. The FP5207 is available in the small footprint SOP-8L(EP) package to fit in space-saving PCB layout for application fields.

Applications

Chargers
LCD Displays
Handheld Devices
Portable Products
Power Bank

Key features

Start-up Voltage: 2.8V
Wide Supply Voltage Operating Range: 5V to 24V
Precision Feedback Reference Voltage: 1.2V (±2%)
Shutdown Current: <3μA
Programmable Switching Frequency: 100KHz~1000KHz
Input Under Voltage Protection(UVP) Switching MOSFET Over Current Protection (OCP) Over Temperature Protection (OTP)
Package: SOP-8L(EP)
