Advanced Analog TechnologyDatasheet (PDF)

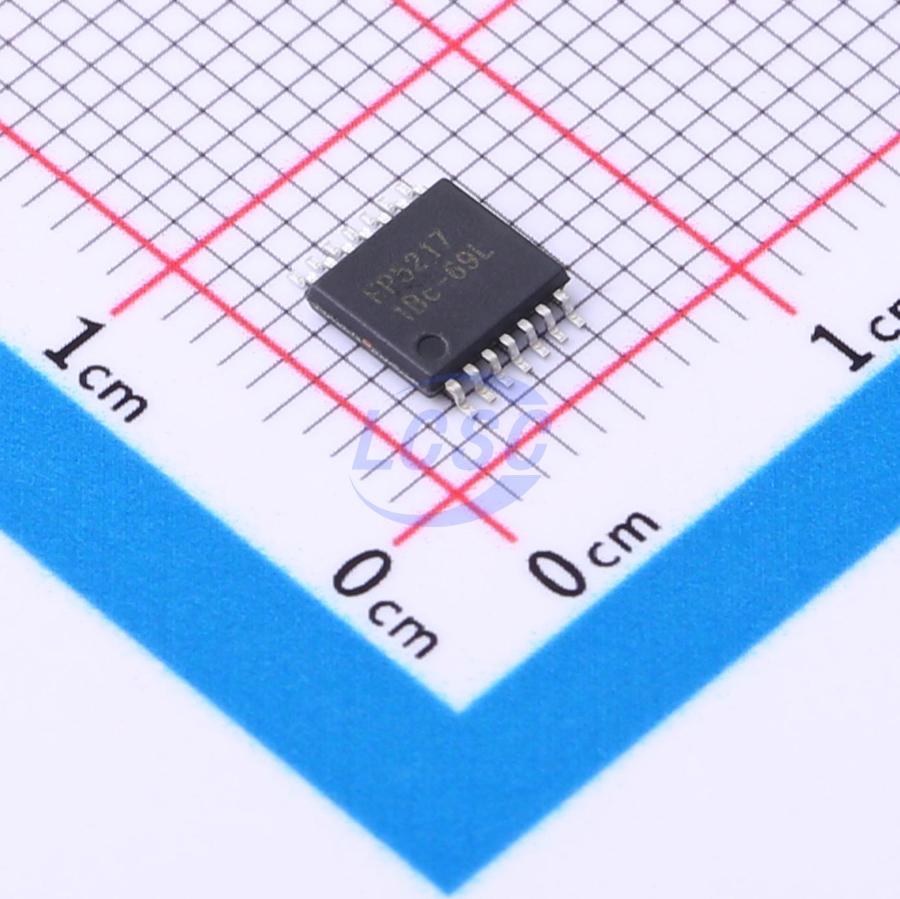

FP5217MR-G1
200kHz~1MHz Boost Adjustable 1.2V~26V 8A TSSOP-14-EP Voltage Regulators - DC DC Switching Regulators RoHS
TSSOP-14-EPROHS CompliantActive
FP5217 Non-Synchronous PWM Boost Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP5217MR-G1
- Store part #
- C2897212
- Package / case
- TSSOP-14-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,761 in stock
#C2897212
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.49 | ₹106.49 |
| 10+ | ₹87.36 | ₹873.60 |
| 30+ | ₹77.58 | ₹2,327.40 |
| 100+ | ₹68.02 | ₹6,802.00 |
| 500+ | ₹57.38 | ₹28,690.00 |
| 1,000+ | ₹54.55 | ₹54,550.00 |
1 × ₹106.49
₹106.49
excl. GST
₹125.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FP5217MR-G1
₹106.49 for 1 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 200kHz~1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Adjustable soft-start;External compensation;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.2V~26V
- Output Current
- 8A
- Quiescent Current
- 800uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
The FP5217 is boost topology switching regulator for wide operating voltage applications. Its built-in 15mΩ power MOSFET makes this regulator highly power efficient. The non-inverting input of error amplifier connects to a 1.2V precision reference voltage. It has programmable switching frequency set by external resistor, and programmable inductor peak current limit connects a resistor from CS to GND. Current mode control and external compensation network make is easy and flexible to stabilize the system. The FP5217 is available in the small footprint TSSOP-14L(EP) package to fit in space-saving PCB layout for application fields.
Applications
- Chargers
- Handheld Devices
- Portable Products
- Power Bank
- Bluetooth Speaker
Key features
- Start-up Voltage: 2.8V
- Wide Supply Voltage Operating Range: 5V to 24V
- Adjustable Output up to 26V
- Precision Feedback Reference Voltage: 1.2V (±2%)
- Shutdown Current: <3μA
- Programmable Switching Frequency: 200KHz~1000KHz
- Programmable Soft Start Function (SS)
- Input Under Voltage Protection(UVP)
- Adjustable Switching MOSFET Over Current Protection (OCP)
- Over Temperature Protection (OTP)
- MOSFET: 30V/8A/15mΩ (peak current 10A)
- Package: TSSOP-14L(EP)
