Advanced Analog TechnologyDatasheet (PDF)

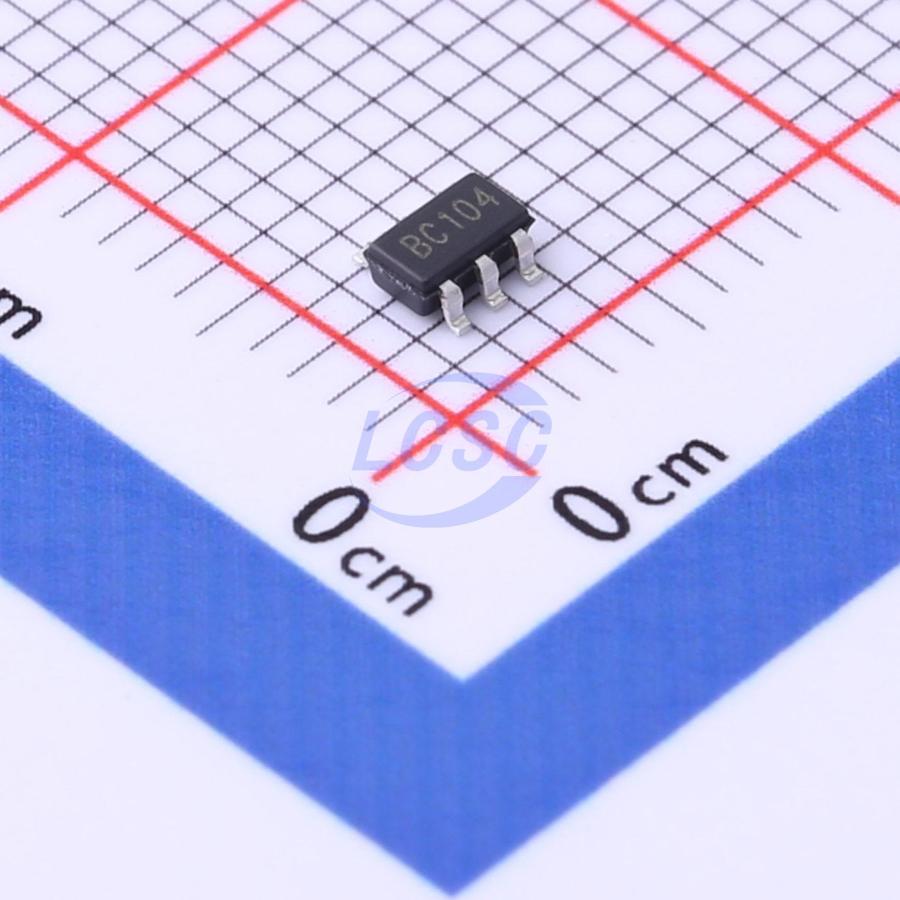

FP6291CLR-G1
500kHz Boost Adjustable 600mV~12V 3A SOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6LROHS CompliantActive
500kHz, 3A Step-Up Current Mode PWM Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP6291CLR-G1
- Store part #
- C2838424
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,965 in stock
#C2838424
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.57 | ₹192.85 |
| 50+ | ₹30.16 | ₹1,508.00 |
| 150+ | ₹26.57 | ₹3,985.50 |
| 500+ | ₹22.07 | ₹11,035.00 |
| 3,000+ | ₹19.75 | ₹59,250.00 |
| 6,000+ | ₹18.55 | ₹1,11,300.00 |
| 9,000+ | ₹18.30 | ₹1,64,700.00 |
| 21,000+ | ₹18.13 | ₹3,80,730.00 |
5 × ₹38.57
₹192.85
excl. GST
₹227.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6291CLR-G1
₹192.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 3A
- Quiescent Current
- 190uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The FP6291C is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.2Ω power MOSFET make this regulator highly power efficient. The internal compensation network also minimizes as much as 6 external component counts. The non-inverting input of error amplifier connects to a 0.6V precision reference voltage and internal soft-start function can reduce the inrush current. The FP6291C is available in the SOT23-6L package and provides space-saving PCB for the application fields.
Applications
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Portable Products
Key features
- Adjustable Output up to 12V
- Internal Fixed PWM frequency: 500kHz
- Precision Feedback Reference Voltage: 0.6V (±2%)
- Internal 0.2Ω, 3A, 16V Power MOSFET
- Shutdown Current: 0.1μA
- Over Temperature Protection
- Over Voltage Protection
- Adjustable Over Current Protection: 0.5A ~ 3A
- Package: SOT23-6L
