Advanced Analog TechnologyDatasheet (PDF)

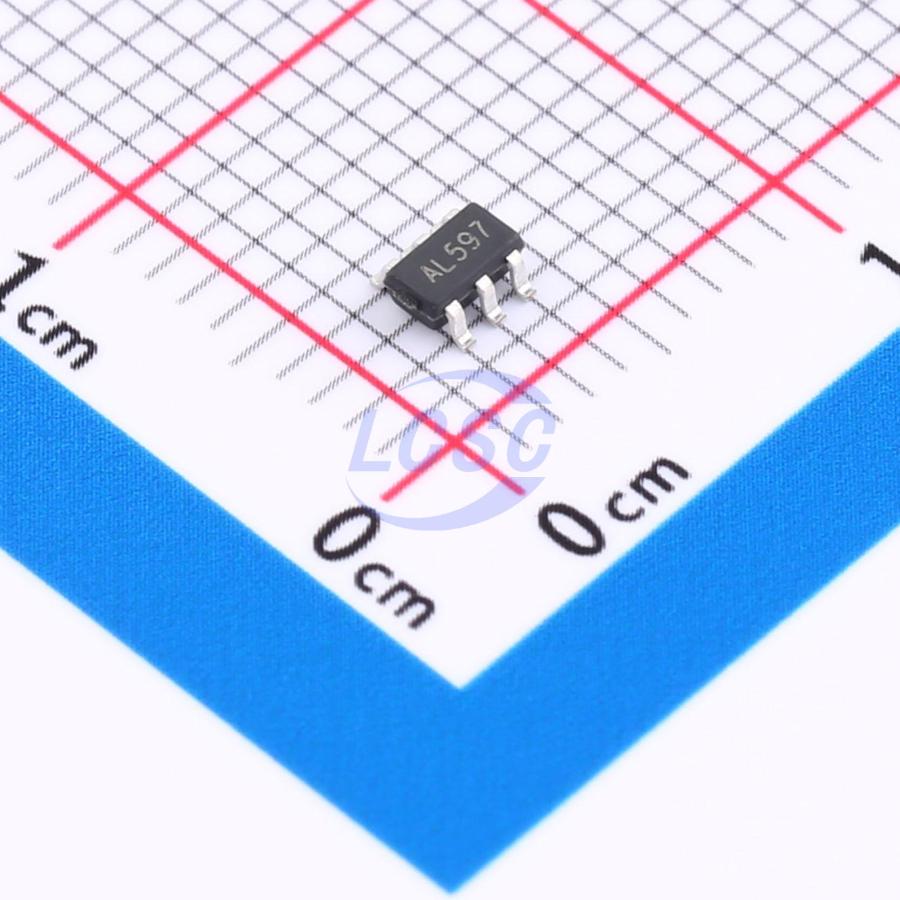

FP6291LR-G12
1MHz Boost Adjustable 600mV~12V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
1MHz, 2A Step-Up Current Mode PWM Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP6291LR-G12
- Store part #
- C18701
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,535 in stock
#C18701
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.35 | ₹81.75 |
| 50+ | ₹12.77 | ₹638.50 |
| 150+ | ₹10.97 | ₹1,645.50 |
| 500+ | ₹9.62 | ₹4,810.00 |
| 3,000+ | ₹8.55 | ₹25,650.00 |
| 6,000+ | ₹8.00 | ₹48,000.00 |
5 × ₹16.35
₹81.75
excl. GST
₹96.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6291LR-G12
₹81.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Quiescent Current
- 190uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The FP6291 is a current mode boost DC - DC converter. Its PwM circuitry with built - in 0.2Ω power MOSFET make this regulator highly power efficient. The internal compensation network also minimizes as much as 6 external component counts. The non - inverting input of error amplifier connects to a 0.6V precision reference voltage and internal soft - start function can reduce the inrush current. The FP6291 is available in the SOT23 - 6L package and provides space - saving PCB for the application fields.
Applications
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Portable Products
Key features
- Adjustable Output up to 12V
- Internal Fixed PwM frequency: 1.0MHz
- Precision Feedback Reference Voltage: 0.6V (±2%)
- Internal 0.2Ω, 2.5A, 16V Power MOSFET
- Shutdown Current: 0.1μA
- Over Temperature Protection
- Over Voltage Protection
- Adjustable Over Current Protection: 0.5A ~ 2.5A
- Package: SOT23 - 6L
