FITIPOWERDatasheet (PDF)

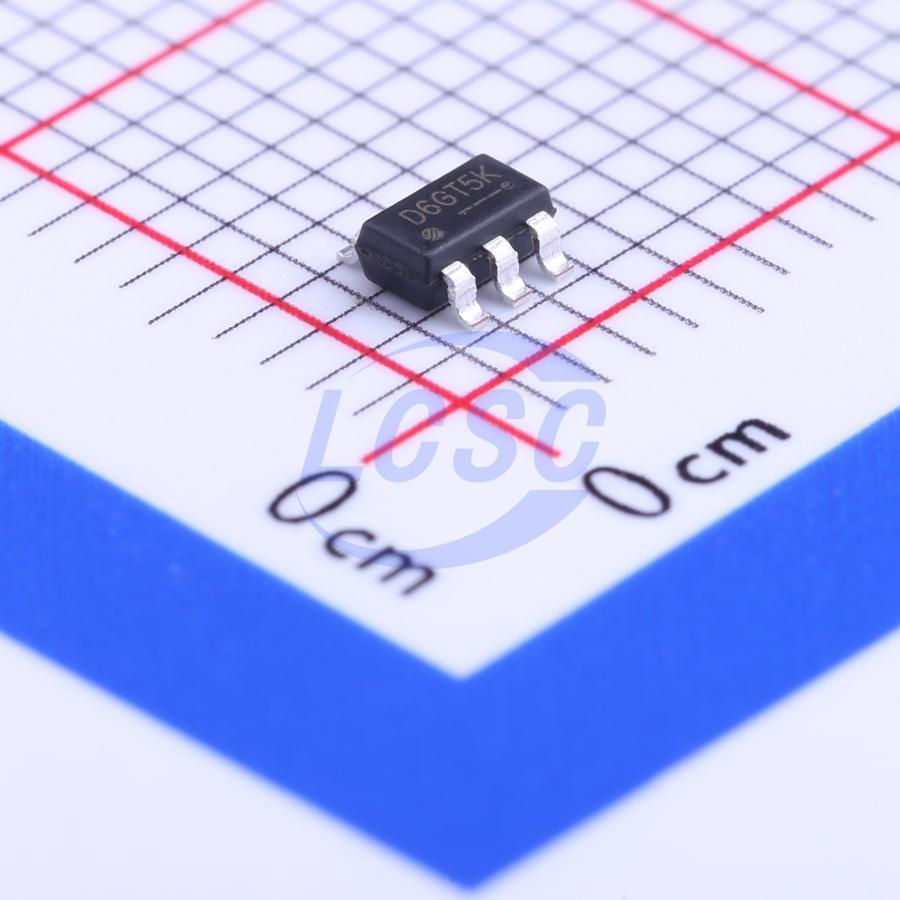

FP6715S6CTR
550kHz Boost Adjustable 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
5V, 2.5A, 550KHz High Efficiency Low Ripple Synchronous Step-Up Converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6715S6CTR
- Store part #
- C128048
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,635 in stock
#C128048
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.50 | ₹157.50 |
| 50+ | ₹24.99 | ₹1,249.50 |
| 150+ | ₹22.20 | ₹3,330.00 |
| 500+ | ₹18.73 | ₹9,365.00 |
| 3,000+ | ₹15.78 | ₹47,340.00 |
| 6,000+ | ₹14.84 | ₹89,040.00 |
5 × ₹31.50
₹157.50
excl. GST
₹185.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6715S6CTR
₹157.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 550kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Load disconnect;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.5A
- Quiescent Current
- 25uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The FP6715 is a high efficiency, fixed frequency 550KHz, current mode PWM boost DC/DC converter which could operate battery such as input voltage down to 2.5V. The converter output voltage can be adjusted to a maximum of 5.25V by an external resistor divider. Besides the converter includes a 0.08Ω N-channel MOSFET switch and 0.12Ω P-channel synchronous rectifier. So no external Schottky diode is required and could get better efficiency near 93%.
Applications
- Portable Power Bank
- Wireless Equipment
- Handheld Instrument
- GPS Receiver
Key features
- High Efficiency up to 93%
- Low RDS(ON) Integrated Power MOSFET
- NMOS 80mΩ / PMOS120mΩ
- Wide Input Voltage Range: 2.5V to 5.5V
- Fixed 550KHz Switching Frequency
- Low-Power Mode for Light Load Conditions
- ±2.0% Voltage Reference Accuracy
- PMOS Current Limit for Short Circuit Protection
- Low Quiescent Current
- Output Ripple under 200mV. (Scope Full Bandwidth)
- Fast Transient Response
- Built-In Soft Start Function
- Over-Temperature Protection with Auto Recovery
- Output Overvoltage Protection
- Space-Saving SOT-23-6 Package
