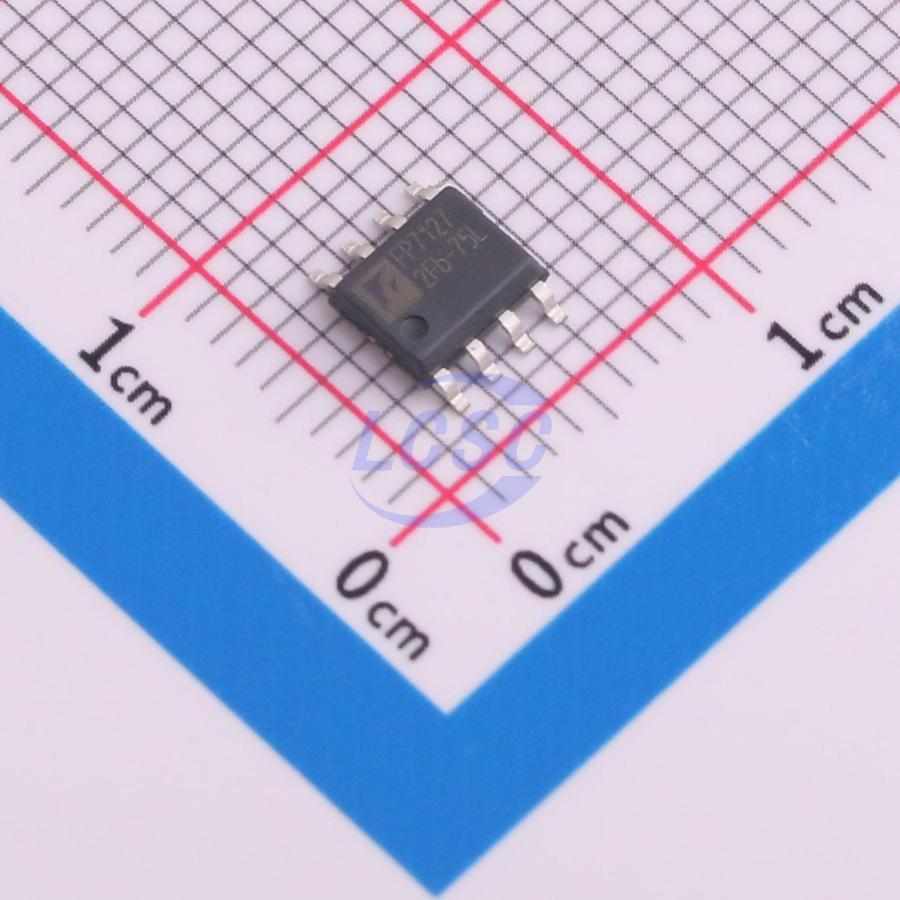

Advanced Analog Technology

FP7127XR-G1

1 DC-DC 8V~12V SOP-8(EP) LED Drivers ICs RoHS

SOP-8(EP)ROHS CompliantActive

LED Driver with Average-Mode Constant Current Control

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP7127XR-G1
Store part #: C6847472
Package / case: SOP-8(EP)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,665 in stock

#C6847472

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹36.48	₹182.40
50+	₹32.10	₹1,605.00
150+	₹30.22	₹4,533.00
500+	₹27.72	₹13,860.00
2,500+	₹26.68	₹66,700.00
5,000+	₹26.05	₹1,30,250.00

Quantity (min 5, multiples of 5)

5 × ₹36.48

₹182.40

excl. GST

₹215.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP7127XR-G1

₹182.40 for 5 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -25℃~+85℃
Number of Channels: 1
Type: DC-DC
Voltage - Input(DC): 8V~12V
Constant Current Accuracy: 2%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.162 g

Overview

The FP7127 is an average current mode control LED driver IC operating in a constant off-time mode. FP7127 does not produce a peak-to-average error, and therefore greatly improves accuracy, line and load regulation of the LED current without any need for loop compensation or high-side current sensing. The output LED current accuracy is ± 2%. PWM dimming input is provided that accepts an external control TTL compatible signal. The output current can be programmed by an internal 250mV reference.
