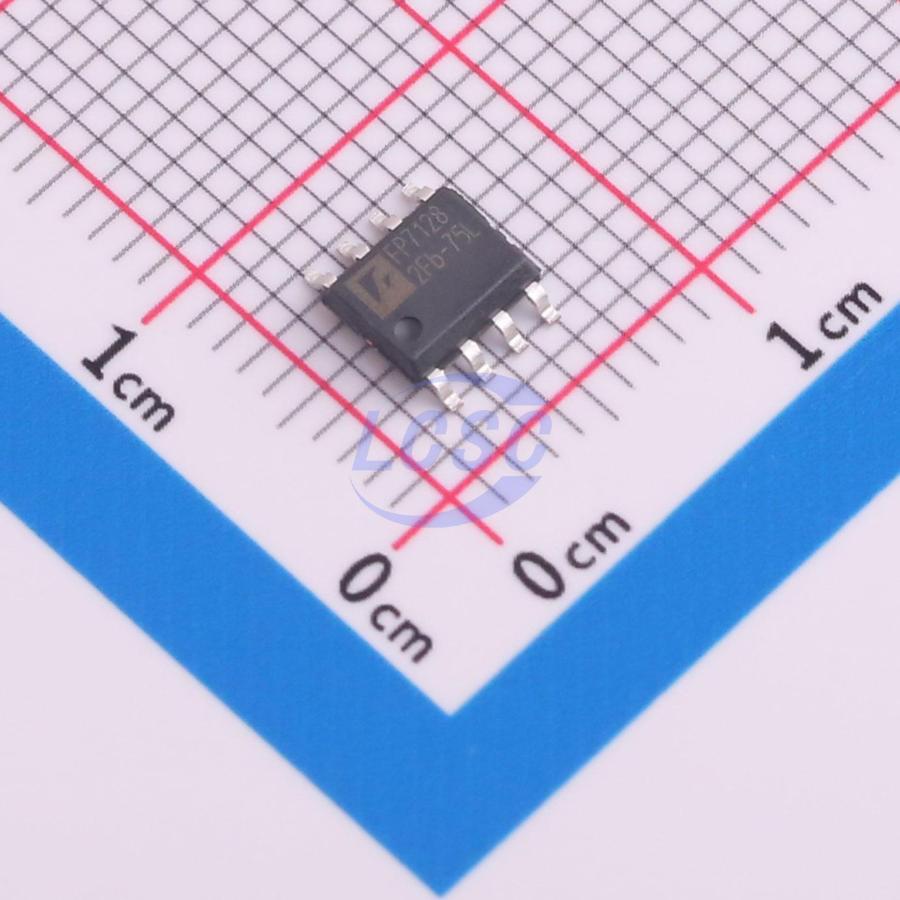

Advanced Analog Technology

FP7128XR-G1

Buck 1 DC-DC 8V~12V SOP-8(EP) LED Drivers ICs RoHS

SOP-8(EP)ROHS CompliantActive

LED Driver with Average-Mode Constant Current Control

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP7128XR-G1
Store part #: C6847471
Package / case: SOP-8(EP)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,190 in stock

#C6847471

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹60.10	₹60.10
10+	₹47.09	₹470.90
30+	₹41.45	₹1,243.50
100+	₹34.28	₹3,428.00
500+	₹31.25	₹15,625.00
1,000+	₹29.29	₹29,290.00

Quantity (min 1)

1 × ₹60.10

₹60.10

excl. GST

₹70.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP7128XR-G1

₹60.10 for 1 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -25℃~+85℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Voltage - Input(DC): 8V~12V
Constant Current Accuracy: 2%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.162 g

Overview

The FP7128 is an average current mode control LED driver IC operating in a constant off-time mode. FP7128 does not produce a peak-to-average error, and therefore greatly improves accuracy, line and load regulation of the LED current without any need for loop compensation or high-side current sensing. The output LED current accuracy is ± 2%. PWM dimming input is provided that accepts an external control TTL compatible signal. The output current can be programmed by an internal 250mV reference.

Applications

DC/DC LED driver applications-LED Street Lighting-Automotive-Desk Lights and room Lighting-MS16 LED spotlight-LED Backlighting-Constant-Current Regulators
