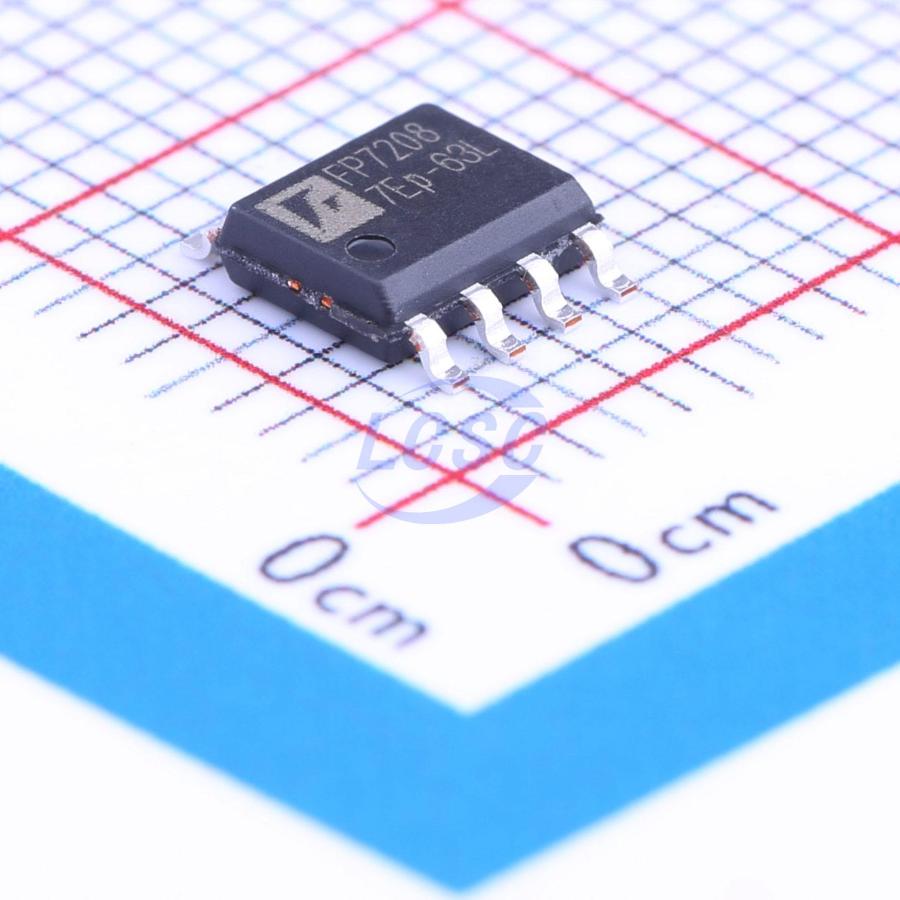

FP7208AXR-G1

The FP7208 and FP7208B are boost topology switching regulator for LED driver. They provide built-in gate driver pin for driving external N-MOSFET. The non-inverting input of error amplifier connects to a 0.1V default reference voltage. They have programmable soft start time set by external capacitors, and over voltage protection set by external resistors. FP7208B has programmable frequency set by external resistor. The LED current can be adjusted by applying an external signal to the EN pin. The EN pin accepts either a DC voltage or a PWM signal. The PWM signal filter components are contained within the chip. The FP7208B is available in the small footprint DFN-10L package to fit in space-saving PCB layout for application fields.

Applications

• LED Module
• Display Backlight
• Car Lighting
• Portable LED Lighting

Key features

• Wide Supply Voltage Operating Range: 2.5V to 24V
• Precision Feedback Reference Voltage: 0.1V (±2%)
• Analog and Digital Dimming Control
• Shutdown Current: <6μA
• Internal Fixed PWM Frequency: 200KHz / FP7208
• Programmable PWM Frequency: 100KHz~1000KHz / FP7208B
• Programmable Soft Start Function (SS)
• Programmable Over Voltage Protection (OVP)
• Over Temperature Protection (OTP)
• Package: SOP-8L(EP) / FP7208, DFN-10L / FP7208B
