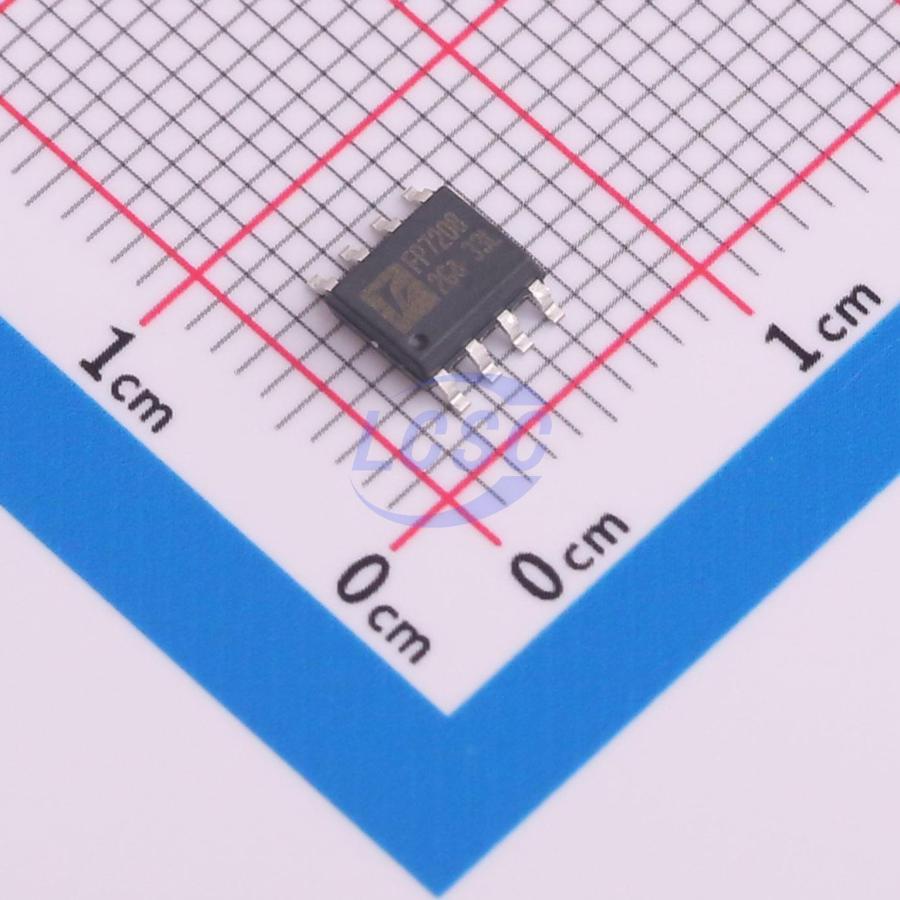

Advanced Analog Technology

FP7208CXR-G1

300kHz 1 Boost 4.5V~24V SOP-8(EP) LED Drivers ICs RoHS

SOP-8(EP)ROHS CompliantActive

Non-Synchronous PWM Boost Controller for LED Driver

Manufacturer: Advanced Analog Technology
Manufacturer part #: FP7208CXR-G1
Store part #: C6847469
Package / case: SOP-8(EP)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,502 in stock

#C6847469

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹73.66	₹73.66
10+	₹57.59	₹575.90
30+	₹50.86	₹1,525.80
100+	₹42.38	₹4,238.00
500+	₹38.68	₹19,340.00
1,000+	₹36.29	₹36,290.00

Quantity (min 1)

1 × ₹73.66

₹73.66

excl. GST

₹86.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FP7208CXR-G1

₹73.66 for 1 + GST

Specifications

Features: Built-in soft-start;Over Voltage Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 300kHz
Switch Tube (Built-In/External): External
Operating temperature: -25℃~+85℃
Number of Channels: 1
Topology: Boost
Voltage - Input(DC): 4.5V~24V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

The FP7208C is boost topology switching regulator for LED driver. It provides built-in gate driver pin for driving external N-MOSFET. The non-inverting input of error amplifier connects to a 0.2V reference voltage. It has programmable soft start time set by external capacitor, and over voltage protection set by external resistor. The LED current can be adjusted by an external signal connecting to the EN pin. EN pin accepts either a DC voltage or a PWM signal. The PWM signal filter components are contained within the chip.
