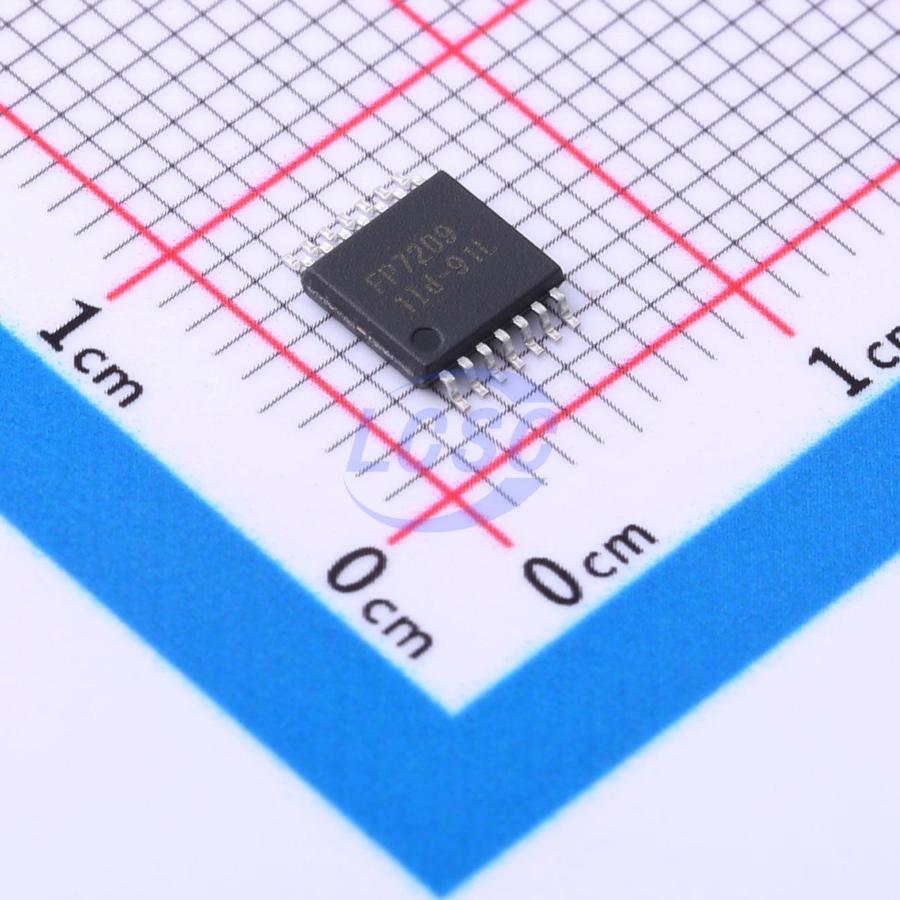

FP7209mR-G1

The FP7209 is boost topology switching regulator for LED driver. It provides built-in gate driver pin for driving external N-MOSFET. The non-inverting input of error amplifier connects to a 0.25V reference voltage. It has programmable soft start time and switching frequency set by external capacitor and resistor. There are four functions to protect system circuit like UVP, OVP, SCP and OCP. The LED current can be adjusted by an external signal connecting to the DIM pin. DIM pin accepts either a DC voltage or a PWM signal. The PWM signal filter components are contained within the chip. Current mode control and external compensation network make is easy and flexible to stabilize the system. The FP7209 is available in the small footprint SOP-8L(EP) and TSSOP-14L(EP) packages to fit in space-saving PCB layout for application fields.

Applications

• LED Module Display
• Backlight
• Car Lighting
• Portable LED Lighting

Key features

• Start-up Voltage: 2.8V
• Wide Supply Voltage Operating Range: 5V to 24V
• Precision Feedback Reference Voltage: 0.25V (Max.)
• Analog and Digital Dimming Control
• Shutdown Current: 6μA (Max.)
• Programmable Switching Frequency: 100KHz~1000KHz
• Programmable Soft Start Function (SS)
• Input Under Voltage Protection (UVP)
• Output Over Voltage Protection (OVP)
• LED Short Circuit Protection (SCP)
• Switching MOSFET Over Current Protection (OCP)
• Over Temperature Protection (OTP)
• Package: SOP-8L(EP), TSSOP-14L(EP)
