onsemiDatasheet (PDF)

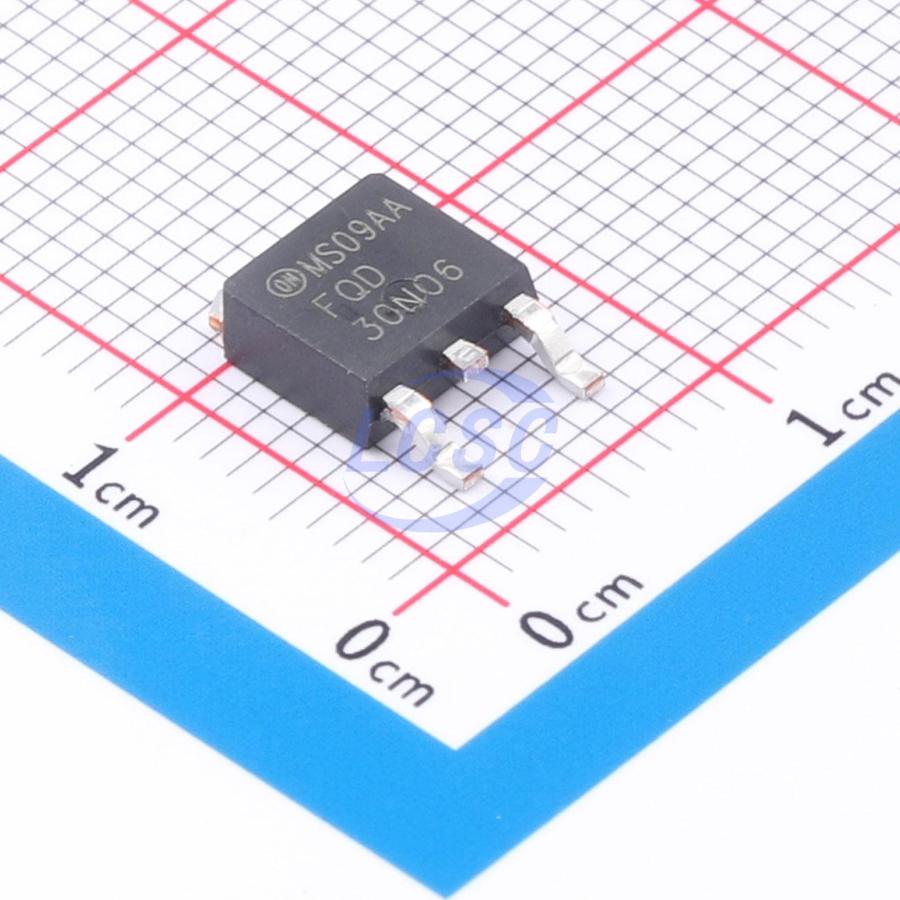

FQD30N06TM
60V 22.7A 45mΩ@10V 1 N-channel N-Channel TO-252AA Single FETs, MOSFETs RoHS
TO-252AAROHS3 CompliantActive
MOSFET N-CH 60V 22.7A TO-252AA
- Manufacturer
- onsemi
- Manufacturer part #
- FQD30N06TM
- Store part #
- C903732
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C903732
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.90 | ₹225.90 |
| 10+ | ₹222.25 | ₹2,222.50 |
| 30+ | ₹219.88 | ₹6,596.40 |
| 100+ | ₹217.53 | ₹21,753.00 |
1 × ₹225.90
₹225.90
excl. GST
₹266.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD30N06TM
₹225.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 945pF
- Pd - Power Dissipation
- 2.5W;44W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 22.7A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 45mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using a proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to minimize on-resistance and provide superior switching performance and high avalanche energy strength. These devices are suitable for switch-mode power supplies, audio amplifiers, DC motor control, and variable switching power supply applications.
Applications
- Switched mode power supplies
- Audio amplifiers
- DC motor control
- Variable switching power applications
Key features
- 22.7 A, 60 V, RDS(on) = 45 mΩ (max) @ VGS = 10 V, ID = 11.4 A
- Low gate charge (typical 19 nC)
- Low Crss (typical 40 pF)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 30N06(XBLW)#C22451420XBLW · TO-252-2L | XBLW | TO-252-2L | 2,225 | ₹16.41 · 2,225 in stock | View |
 | SUD23N06-31L-JSM#C6533554JSMSEMI · TO-252 | JSMSEMI | TO-252 | 205 | ₹48.98 · 205 in stock | View |
 | 30N06-TN3-R#C190978UTC · TO-252 | UTC | TO-252 | 595 | ₹41.48 · 595 in stock | View |
 | HSU20N15A#C701011HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 558 | ₹66.49 · 558 in stock | View |
 | 30N06#C54863563SEP · TO-252 | SEP | TO-252 | 2,400 | ₹11.40 · 2,400 in stock | View |
