VBsemi ElecDatasheet (PDF)

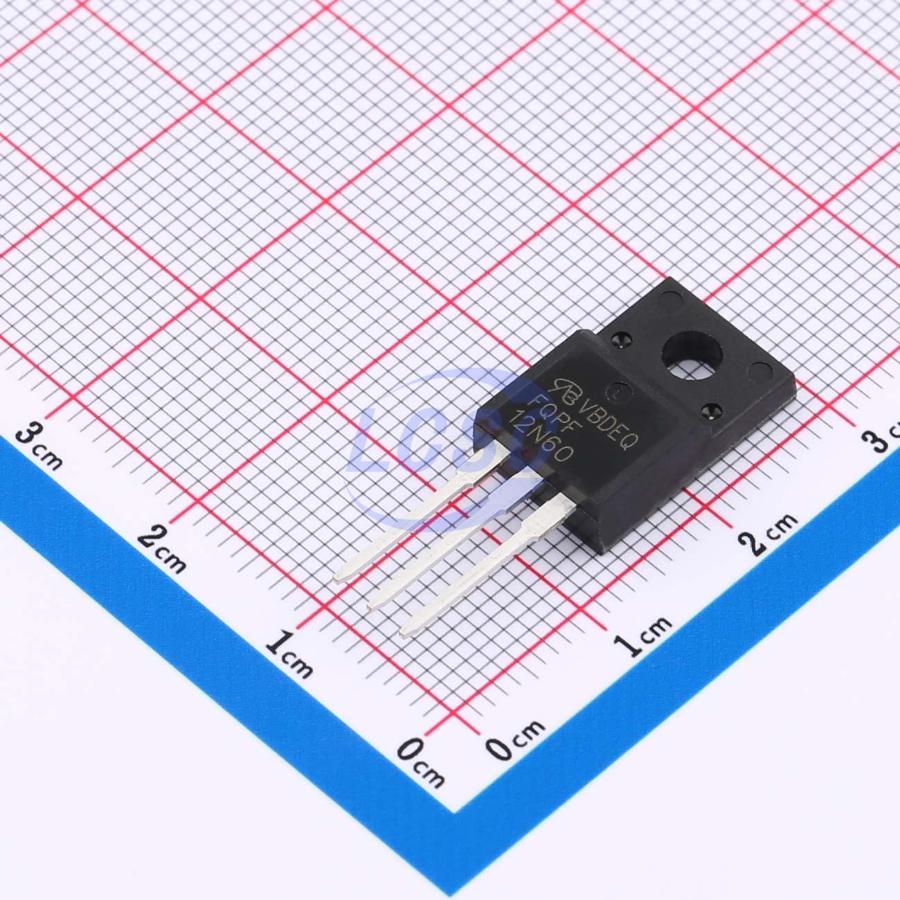

FQPF12N60-VB
N-Channel 650V 12A 106W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQPF12N60-VB
- Store part #
- C20755720
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20755720
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.60 | ₹140.60 |
| 10+ | ₹116.27 | ₹1,162.70 |
| 50+ | ₹103.01 | ₹5,150.50 |
| 100+ | ₹87.79 | ₹8,779.00 |
| 500+ | ₹81.06 | ₹40,530.00 |
| 1,000+ | ₹78.02 | ₹78,020.00 |
1 × ₹140.60
₹140.60
excl. GST
₹165.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF12N60-VB
₹140.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 106W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
