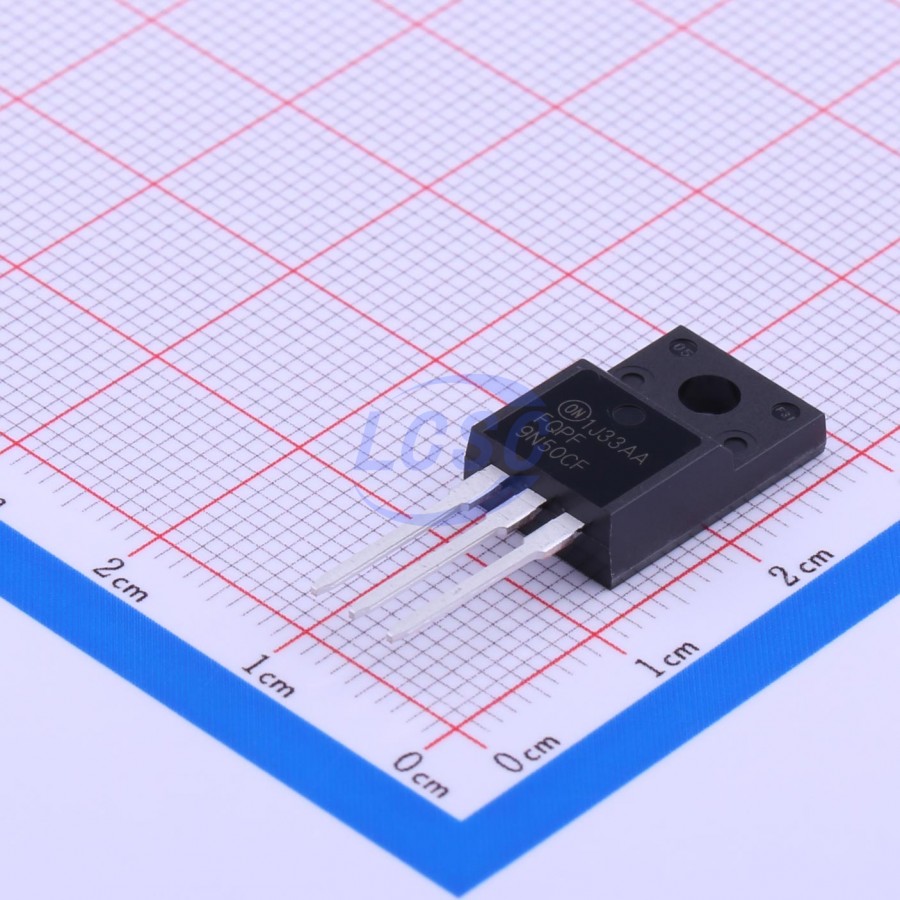

FQPF9N50CF
N-Channel 500V 9A 44W Through Hole TO-220FPAB-3
TO-220FPAB-3RoHSDiscontinued
MOSFET N-CH 500V 9A TO-220FPAB-3
- Manufacturer
- onsemi
- Manufacturer part #
- FQPF9N50CF
- Store part #
- C243116
- Package / case
- TO-220FPAB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C243116
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹300.90 | ₹300.90 |
| 10+ | ₹257.14 | ₹2,571.40 |
| 30+ | ₹229.84 | ₹6,895.20 |
| 100+ | ₹201.72 | ₹20,172.00 |
| 500+ | ₹189.22 | ₹94,610.00 |
| 1,000+ | ₹183.58 | ₹1,83,580.00 |
1 × ₹300.90
₹300.90
excl. GST
₹355.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF9N50CF
₹300.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 1.03nF
- Pd - Power Dissipation
- 44W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 850mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.68 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using proprietary planar stripe and DMOS technology. This advanced MOSFET technology is specifically designed to minimize on-resistance while delivering superior switching performance and high avalanche energy ruggedness. These devices are suitable for switch-mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- Switching Mode Power Supply
- Active Power Factor Correction (PFC)
- Electronic Lamp Ballast
Key features
- 9 A, 500 V, RDS(on) = 850 mΩ (max) @ VGS = 10 V, ID = 4.5 A
- Low gate charge (typical 28 nC)
- Low Crss (typical 24 pF)
- 100% avalanche tested
- Fast recovery body diode (typical 100 ns)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TSF840MR#C382359Truesemi · TO-220F-3 | Truesemi | TO-220F-3 | 85 | ₹50.49 · 85 in stock | View |
 | BCT12N65#C3874046baocheng · TO-220F | baocheng | TO-220F | 3,387 | ₹62.92 · 3,387 in stock | View |
 | CS12N60FA9R#C162373Wuxi China Resources Huajing Microelectronics · TO-220F | Wuxi China Resources Huajing Microelectronics | TO-220F | 990 | ₹81.93 · 990 in stock | View |
 | LND10N65#C439225LONTEN · TO-220F | LONTEN | TO-220F | 35 | ₹108.99 · 35 in stock | View |
 | SMF9N50#C19725786HUAKE · TO-220F | HUAKE | TO-220F | 690 | ₹32.11 · 690 in stock | View |
