FREQCHIP

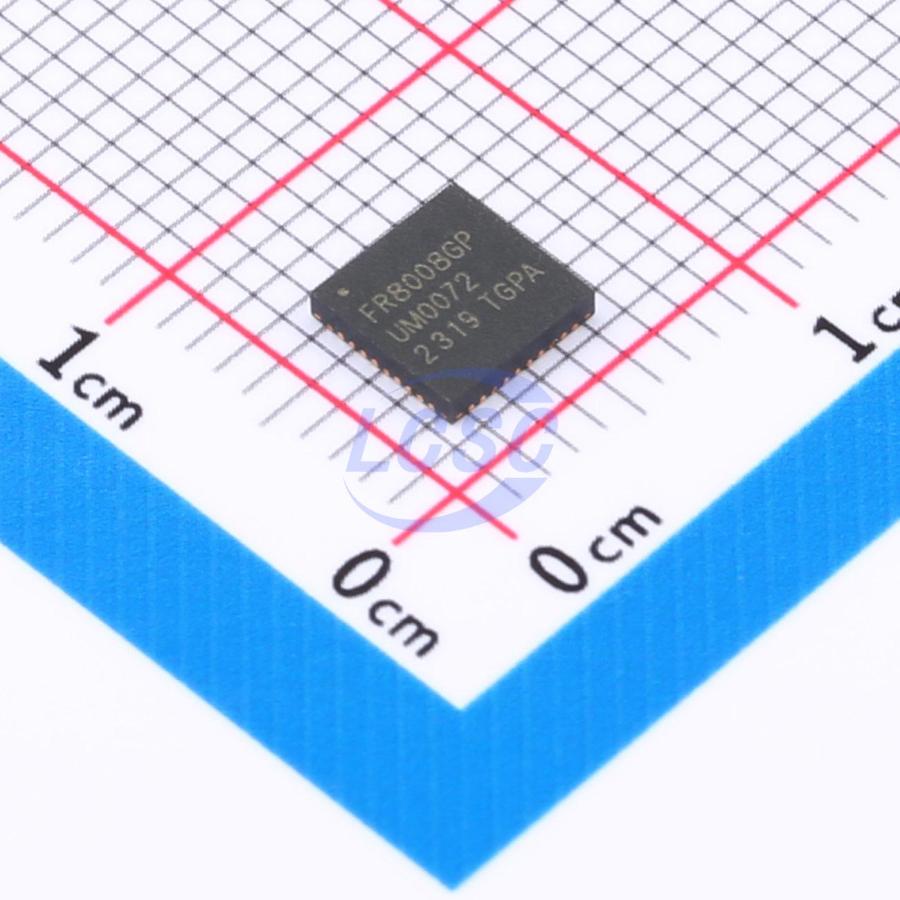

FR8008GP

ARM Cortex-M3 32 Bit 96MHz QFN-40(5x5) Microcontrollers

QFN-40(5x5)RoHSActive

Low-power Bluetooth SOC chip supporting SIG MESH

Manufacturer: FREQCHIP
Manufacturer part #: FR8008GP
Store part #: C19631234
Package / case: QFN-40(5x5)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,640 in stock

#C19631234

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹231.00	₹231.00
10+	₹213.17	₹2,131.70
30+	₹202.09	₹6,062.70
100+	₹190.79	₹19,079.00
500+	₹185.58	₹92,790.00
1,000+	₹183.41	₹1,83,410.00

Quantity (min 1)

1 × ₹231.00

₹231.00

excl. GST

₹272.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

FR8008GP

₹231.00 for 1 + GST

Specifications

ADC (Bit): 10bit
Number of I/O: 28
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~3.6V
Program Memory Type: FLASH
Program Storage Size: 8MB
CPU Core: ARM Cortex-M3
Core Size: 32 Bit
CPU Maximum Speed: 96MHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.162 g

Overview

The FR800x series chips are low-power Bluetooth SoC chips designed for rapid development. Fully supported by Bluetooth Smart firmware and protocol stack, they are fully compatible with Bluetooth V5.1 (LE mode). Users can also develop various applications based on the built-in ARM Cortex-M3 embedded 32-bit high-performance MCU. The Bluetooth Smart firmware includes L2CAP service layer protocol, Security Manager (SM), Attribute Protocol (ATT), Generic Attribute Profile (GATT), and Generic Access Profile (GAP). It also supports application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Blood Glucose, Human Interface Device (HID), and SDK (including drivers, OS-API, etc.). The SDK also integrates SIG Mesh protocol for network applications. Using innovative technology, PMU, QSPI FLASH ROM with XIP mode, I2C, UART, GPIO, ADC, and PWM are integrated into a single chip, providing customers with competitive power consumption, stable Bluetooth connectivity, and extremely low BOM cost.

Applications

Smart keyboard & mouse
Smart wearables
Smart lock
Smart home
IoT
SIG Mesh applications

Key features

Built-in 32-bit CPU, up to 96MHz clock frequency
512KB/1MB/4MB/8MB/16MB Flash
56KB SRAM
4KB Cache
128KB ROMBOOT bootcode
Bluetooth V5.1 LE standard
2M/1M/500K/125K data rate support
Integrated DC-DC, LDO
General-purpose GPIO, Timer ×2, Efuse 128bit, SPIM ×2
SPIS, UART (FIFO depth 16/32), QSPI ×2, I2C (FIFO depth 8/32), PWM ×8, PDM, USB OTG, 8080 parallel interface
8-channel 10-bit SAR ADC
Maximum sampling data rate 1Mbps
FIFO mode
Sampling trigger follows PWM pulse
Operating temperature: -40℃~+85℃
