FREQCHIPDatasheet (PDF)

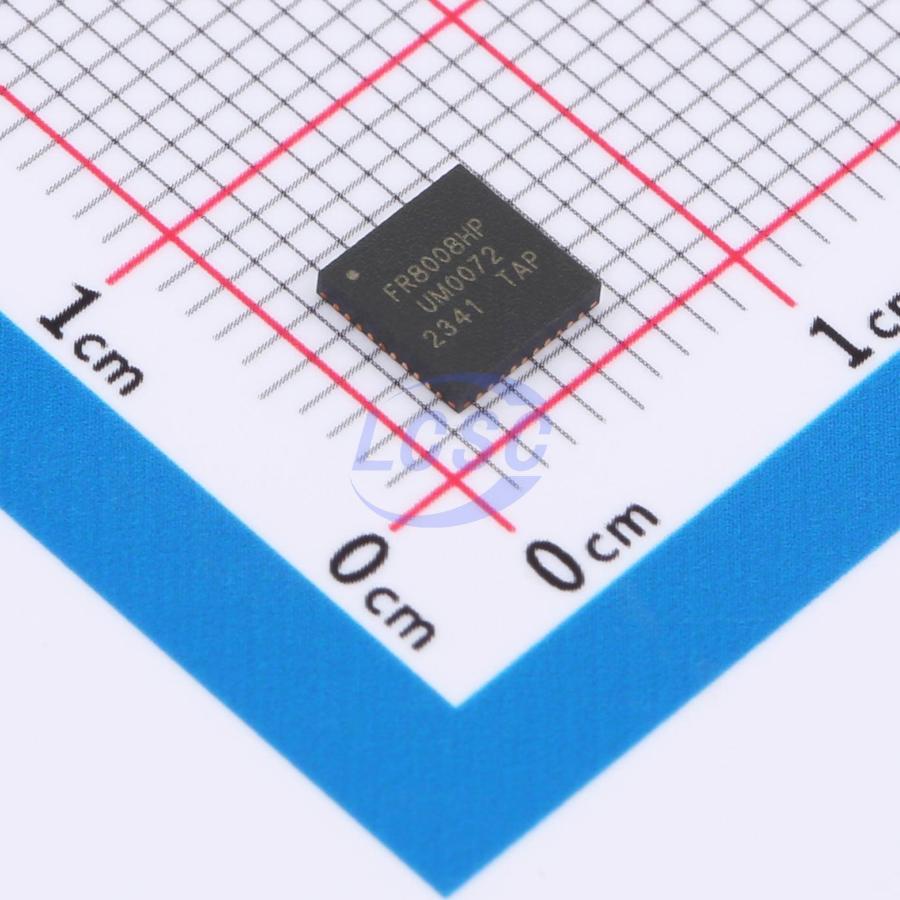

FR8008HP
ARM Cortex-M3 32 Bit 96MHz QFN-40(5x5) Microcontrollers
QFN-40(5x5)RoHSActive
Low-power Bluetooth SoC chip supporting SIG MESH
- Manufacturer
- FREQCHIP
- Manufacturer part #
- FR8008HP
- Store part #
- C7293546
- Package / case
- QFN-40(5x5)
- Category
- Microcontrollers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,645 in stock
#C7293546
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.05 | ₹224.05 |
| 10+ | ₹205.12 | ₹2,051.20 |
| 30+ | ₹193.30 | ₹5,799.00 |
| 100+ | ₹181.04 | ₹18,104.00 |
| 500+ | ₹175.67 | ₹87,835.00 |
| 1,000+ | ₹173.30 | ₹1,73,300.00 |
1 × ₹224.05
₹224.05
excl. GST
₹264.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FR8008HP
₹224.05 for 1 + GST
Specifications
- ADC (Bit)
- 10bit
- Number of I/O
- 34
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 2V~4.3V
- Program Memory Type
- FLASH
- Program Storage Size
- 16MB
- CPU Core
- ARM Cortex-M3
- Core Size
- 32 Bit
- CPU Maximum Speed
- 96MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The FR800x series chips are low-power Bluetooth chips designed for SOC (System-on-Chip) applications, enabling rapid development. Built on Bluetooth Smart firmware and protocol stack support, they are fully compatible with the Bluetooth V5.1 (LE mode) specification. Users can also develop a wide range of applications based on the built-in ARM Cortex-M3 embedded 32-bit high-performance MCU. The Bluetooth Smart firmware includes L2CAP service layer protocol, Security Manager (SM), Attribute Protocol (ATT), Generic Attribute Profile (GATT), and Generic Access Profile (GAP). Additionally, it supports application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Blood Glucose, Human Interface Device (HID), and SDK (including drivers, OS-API, etc.). The SDK also integrates the SIG Mesh protocol for network applications. Leveraging innovative technology, the PMU (Li-battery charger + LDO), QSPI FLASH ROM with XIP mode, I2C, UART, GPIO, ADC, and PWM are all integrated into a single chip, delivering competitive power consumption, stable Bluetooth connectivity, and an ultra-low BOM cost to customers.
Applications
- Smart keyboard & mouse
- Smart wearables
- Smart lock
- Smart home
- IoT
- SIG Mesh applications
Key features
- Built-in 32-bit ARM Cortex-M3 core, supporting up to 96MHz clock frequency
- 512KB/1MB/4MB/8MB/16MB Flash
- 56KB SRAM
- 4KB Cache
- 128KB ROM
- BOOT startup code
- Controller protocol stack
- Bluetooth V5.1 LE standard
- Supports 2M/1M/500K/125K data rates
- Built-in charge management unit
- Integrated DC-DC, LDO
- General-purpose GPIO
- Timer ×2
- eFuse 128-bit
- SPIM ×2
- SPIS
- UART (FIFO depth 16/32)
- QSPI ×2
- I2C (FIFO depth 8/32)
- PWM ×8
- PDM
- USB OTG
- 8080 parallel interface
- 8-channel 10-bit SAR ADC
- Maximum sampling data rate 1Mbps
- FIFO mode
- Sampling trigger follows PWM pulse
- Operating temperature range: -40℃~+105℃
