FREQCHIP

FR8016HA

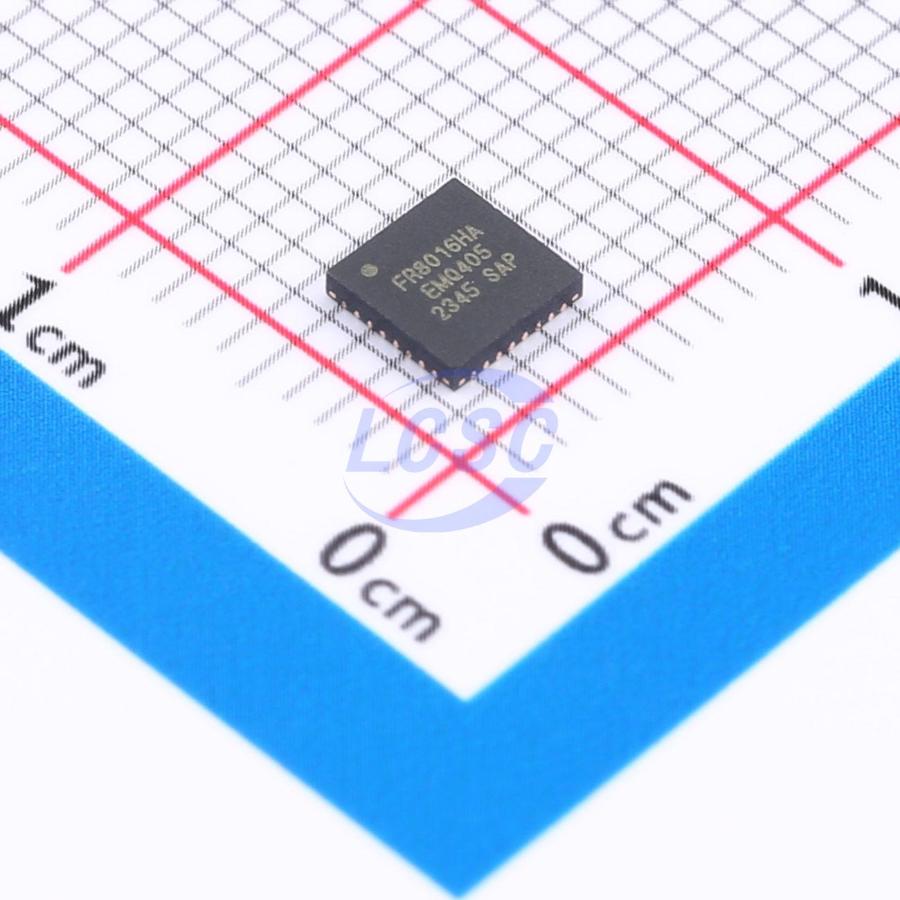

ARM Cortex-M3 32 Bit 48MHz QFN-32(4x4) Microcontrollers

QFN-32(4x4)RoHSActive

Low-power Bluetooth SOC chip supporting SIG MESH

Manufacturer: FREQCHIP
Manufacturer part #: FR8016HA
Store part #: C2688843
Package / case: QFN-32(4x4)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,896 in stock

#C2688843

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹144.42	₹144.42
10+	₹119.85	₹1,198.50
30+	₹106.58	₹3,197.40
100+	₹91.35	₹9,135.00
500+	₹84.62	₹42,310.00
1,000+	₹81.56	₹81,560.00

Quantity (min 1)

1 × ₹144.42

₹144.42

excl. GST

₹170.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

FR8016HA

₹144.42 for 1 + GST

Specifications

DAC (Bit): 20bit
ADC (Bit): 10bit
Number of I/O: 17
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~4.3V
Program Memory Type: FLASH
Program Storage Size: 512KB
CPU Core: ARM Cortex-M3
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

The FR801xH series chips are low-power Bluetooth SoC chips designed for rapid development. Fully compatible with the Bluetooth V5.1 (LE mode) protocol, users can also develop a wide range of applications based on the chip's built-in ARM Cortex-M3 embedded 32-bit high-performance MCU. The Bluetooth Smart firmware includes L2CAP service layer protocol, Security Manager (SM), Attribute Protocol (ATT), Generic Attribute Profile (GATT), and Generic Access Profile (GAP). Additionally, it supports application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Blood Glucose, Human Interface Device (HID), and SDK (including drivers, OS APIs, etc.). The SDK also integrates the SIG Mesh protocol for network applications. Using innovative technology, the PMU (Li-ion battery charger + LDO), QSPI FLASH ROM with XIP mode, I2C, UART, GPIO, ADC, and PWM are all integrated into a single chip, offering customers: - Competitive power consumption - Stable Bluetooth connectivity - Ultra-low BOM cost

Applications

Smart keyboard & mouse
Smart wearables
Smart lock
Smart home
IoT SIG Mesh applications

Key features

CPU with built-in 32-bit ARM Cortex-M3 core, supporting up to 48MHz clock frequency
256KB/512KB/1MB Flash for user software and data storage
48KB SRAM
128KB ROM:
BOOT code
Controller protocol stack
ROM firmware:
BLE Profile & Protocol: GATT, LM, LC
API drivers
SIG MESH protocol stack
Bluetooth V5.1 LE standard
Supports 2M/1M/500K/125K data rates
Integrated DC-DC, LDO
General-purpose GPIO
Timer
Efuse 128bit
SPIM
MSPI
SUART (FIFO depth 16/32)
SPI/QSPI
I2C (FIFO depth 8/32)
PWM
PDM
8-channel 10-bit SAR ADC
Operating temperature: -40℃ ~ +105℃
