FREQCHIP

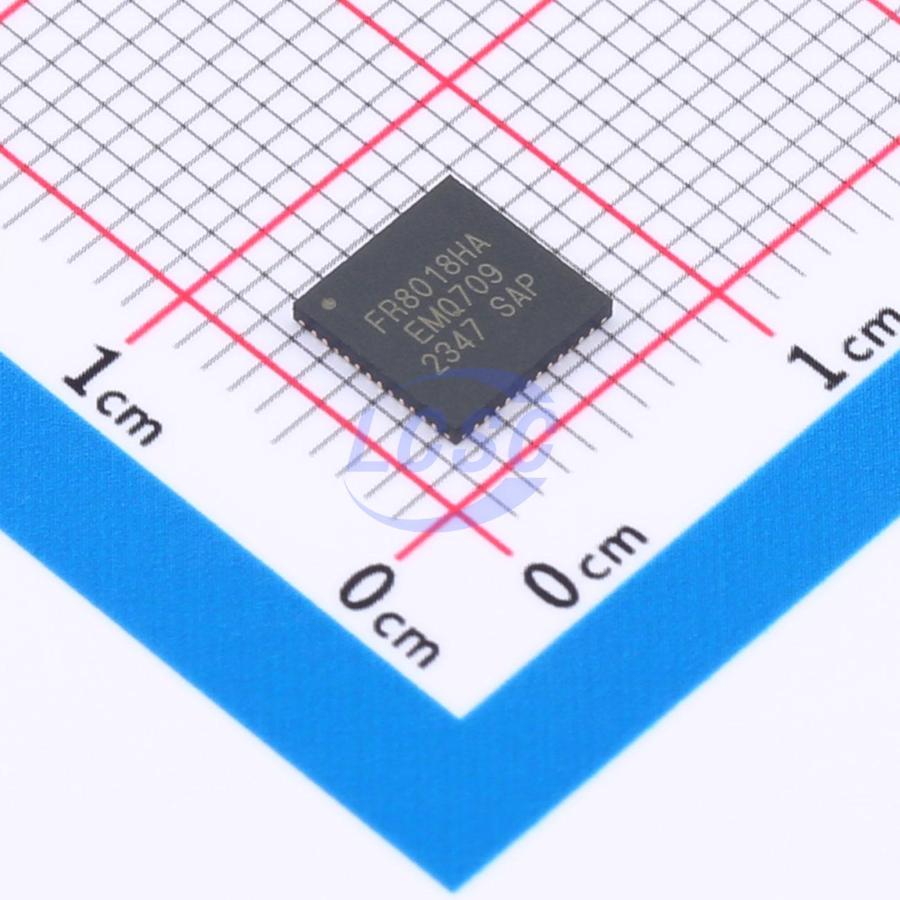

FR8018HA-8-P

32 Bit QFN-48(6x6) Microcontrollers

QFN-48(6x6)RoHSActive

Bluetooth Low Energy SOC with SIG Mesh integrated

Manufacturer: FREQCHIP
Manufacturer part #: FR8018HA-8-P
Store part #: C2844755
Package / case: QFN-48(6x6)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,422 in stock

#C2844755

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹114.52	₹114.52
10+	₹102.78	₹1,027.80
30+	₹96.26	₹2,887.80
100+	₹89.09	₹8,909.00
500+	₹85.84	₹42,920.00
1,000+	₹84.31	₹84,310.00

Quantity (min 1)

1 × ₹114.52

₹114.52

excl. GST

₹135.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

FR8018HA-8-P

₹114.52 for 1 + GST

Specifications

DAC (Bit): 20bit
ADC (Bit): 10bit
Operating Temperature: -20℃~+105℃
Voltage - Supply: 1.8V~4.3V
Program Memory Type: FLASH
Program Storage Size: 512KB
Core Size: 32 Bit
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.195 g

Overview

FR8018H is a SOC (system on chip) for rapid development of Bluetooth Low Energy related products. It contains Bluetooth V5.0 (LE Mode) fully compliant system with Freqchip designed firmware and software stack. Users can develop various applications based on embedded 32-bits high performance MCU. With Freqchip’s innovational technology, FR8018H integrates Audio CODEC, PMU (Li-battery charger + LDO), SPI flashROM with XIP mode, IIC, UART, GPIO, ADC, PWM all in a single chip, which provides customer with: 1. competitive power consumption 2. stable connection 3. low-cost BOM The Bluetooth Smart firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). Furthermore, application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Glucose, Human Interface Device (HID) and SDK (include drivers, OS API, etc.) are supported. The SDK has integrated SIG Mesh for networking application.

Applications

voice remote control
smart toy
led control
SIG Mesh application
smart locks

Key features

Compliant with Bluetooth Specification V5.0 LE, support 2M, 1M, 500K and 125K data rate
Embedded 32-bits Processor
12~48Mhz speed
Internal mask 150KB ROM, up to 48KB SRAM
Uses external SPI flash to store user programs, and supports up to 128Mb memory capacity theoretically
Internal 4Mb Flash ROM for user space software and data
Integrated Battery Charger
Integrated DC-DC Regulator
Mono Audio CODEC
Interface:
GPIO
UART
SPI
I2C
PWM
I2S
LED
ROM Software:
BLE Profile & Protocol: GATT, LM, LC, etc.
Driver API
SIG Mesh
