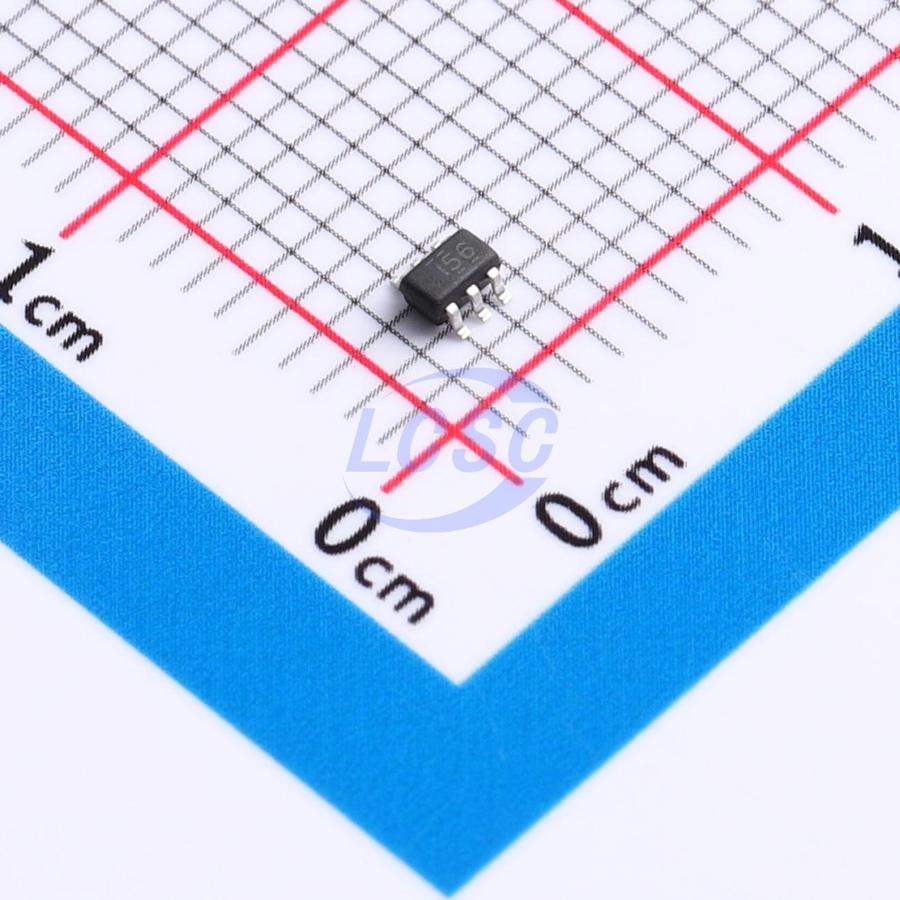

FSA1156P6X-TP

3.9Ω 1.5V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-363ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: FSA1156P6X-TP
Store part #: C49375132
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,395 in stock

#C49375132

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.82	₹99.10
50+	₹17.30	₹865.00
150+	₹16.23	₹2,434.50
500+	₹14.88	₹7,440.00
3,000+	₹14.29	₹42,870.00
6,000+	₹13.93	₹83,580.00

Quantity (min 5, multiples of 5)

5 × ₹19.82

₹99.10

excl. GST

₹116.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FSA1156P6X-TP

₹99.10 for 5 + GST

Specifications

Features: Power-off isolation;Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 3.9Ω
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

This device is a high-performance single-pole single-throw analog switch. It features ultra-low on-resistance and operates over a wide VCC voltage range of 1.65V to 5.5V. The device is fabricated using submicron CMOS technology to achieve fast switching speeds. The select input pin is TTL-level compatible.
