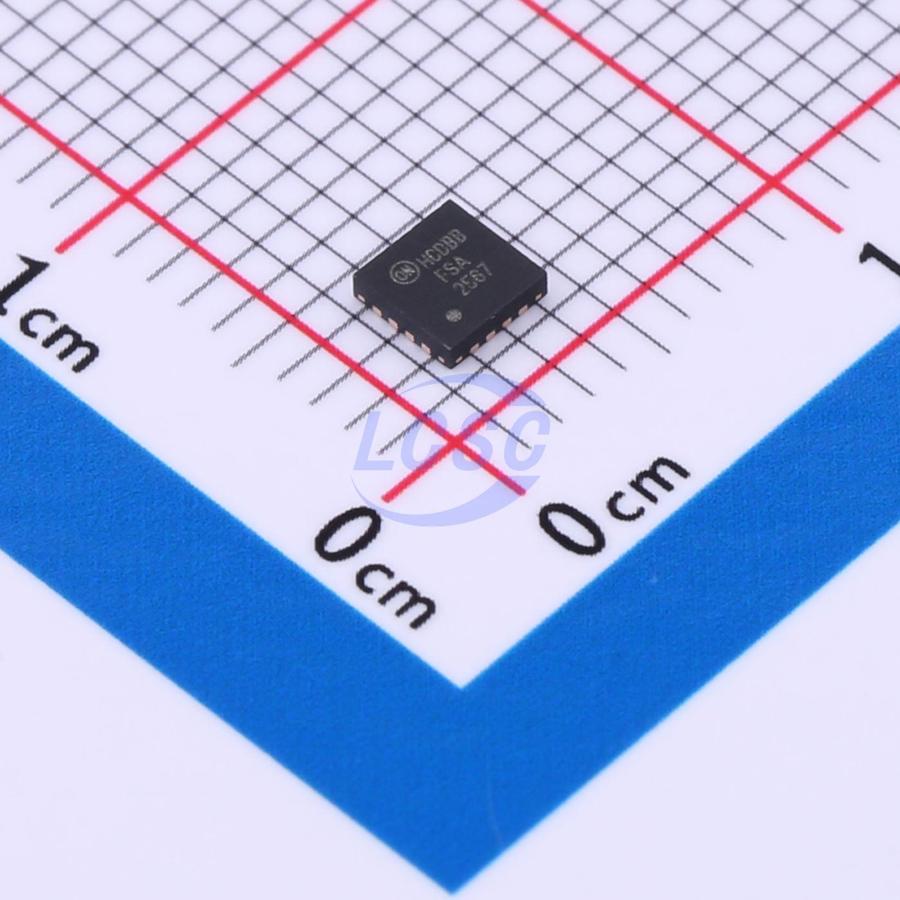

FSA2567MPX

The FSA2567 is a bi-directional, low -power, dual double-pole, double-throw (4PDT) analog switch targeted at dual SIM card multiplexing. It is optimized for switching the WLAN-SIM data and control signals and dedicates one channel as a supply-source switch. The FSA2567 is compatible with the requirements of SIM cards and features a low on capacitance (C_ON) of 10 pF to ensure high-speed data transfer. The V_SIM switch path has a low R_ON characteristic to ensure minimal voltage drop in the dual SIM card supply paths. The FSA2567 contains special circuitry that minimizes current consumption when the control voltage applied to the SEL pin is lower than the supply voltage (V_CC). This feature is especially valuable in ultra-portable applications, such as cell phones; allowing direct interface with the general-purpose I/Os of the baseband processor. Other applications include switching and connector sharing in portable cell phones, PDAs, digital cameras, printers, and notebook computers.

Applications

• Cell phone
• PDA
• Digital Camera
• Notebook LCD Monitor
• TV
• Set-Top Box

Key features

• Low On Capacitance for Data Path: 10 pF Typical
• Low On Resistance for Data Path: 6 Ω Typical
• Low On Resistance for Supply Path: 0.4 Ω Typical
• Wide V_CC Operating Range: 1.65 V to 4.3 V
• Low Power Consumption: 1 μA Maximum - 15 μA Maximum I_CCT Over Expanded Voltage Range (V_IN = 1.8 V, V_CC = 4.3 V)
• Wide -3 dB Bandwidth: > 160 MHz
• Packaged in: - Pb-free 16-Lead MLP & 16-Lead UMLP
• 3 kV ESD Rating, > 2 kV Power/GND ESD Rating
