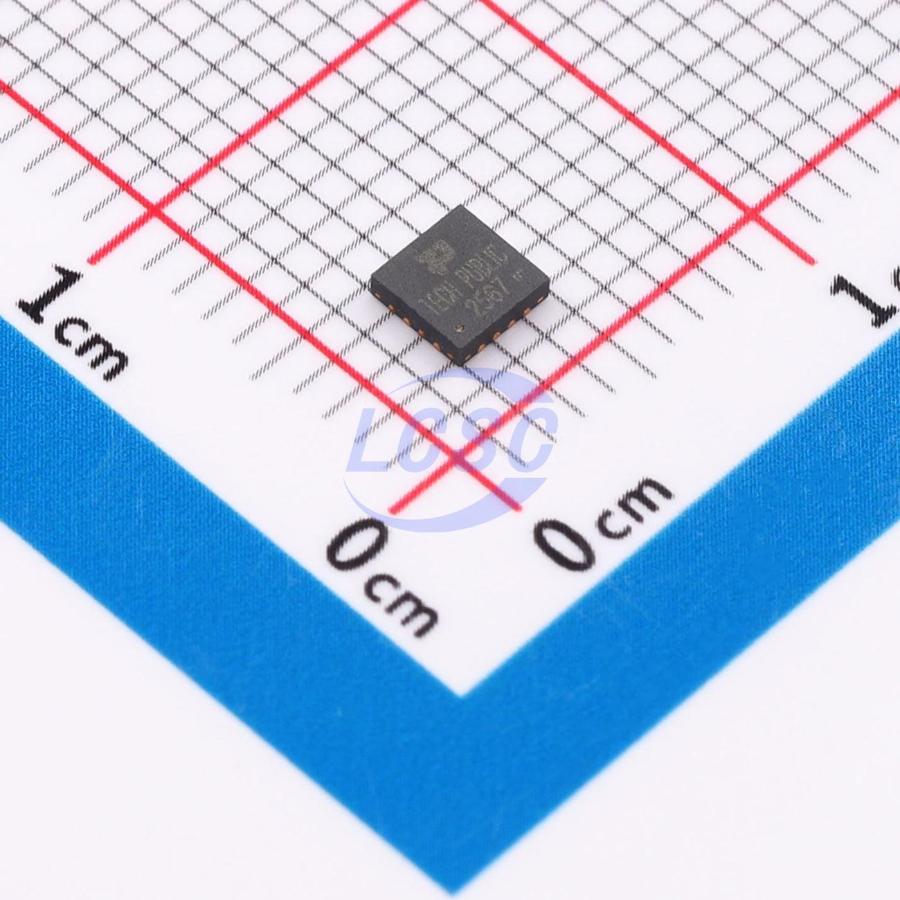

TECH PUBLIC

FSA2567MPX-TP

1.5V~5.5V 4 QFN-16L(3x3) Analog Switches, Multiplexers, Demultiplexers

QFN-16L(3x3)RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: FSA2567MPX-TP
Store part #: C52098294
Package / case: QFN-16L(3x3)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,721 in stock

#C52098294

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹38.90	₹38.90
10+	₹33.90	₹339.00
30+	₹31.73	₹951.90
100+	₹29.12	₹2,912.00
500+	₹27.82	₹13,910.00
1,000+	₹27.16	₹27,160.00

Quantity (min 1)

1 × ₹38.90

₹38.90

excl. GST

₹45.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

FSA2567MPX-TP

₹38.90 for 1 + GST

Specifications

Features: Glitch-free switching;Level shifting
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.5V~5.5V
Number of Channels: 4
Con: 8pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.112 g

Overview

This device is a high-performance quad SPDT analog switch with an ultra-low on-resistance of 1.5Ω (typical) at 4.5V VCC. It operates over a supply voltage range of 1.5V to 5.5V and features a break-before-make design. The select inputs are TTL-level compatible. The device incorporates intelligent circuitry that minimizes VCC leakage current even when the control voltage is below the VCC supply voltage. This feature is well-suited for mobile handheld applications, allowing direct interfacing with the general-purpose I/O of baseband processors while achieving minimum battery consumption. In other words, no additional devices are required in actual applications to level-shift the control signals to match VCC. The device is available in a QFN 3x3-16L package. Standard products are lead-free and halogen-free.

Applications

Audio and video signal routing
Other electronic equipment
LCD monitors, TVs, and set-top boxes
Mobile phones, PDAs, digital cameras, and laptops

Key features

Ultra-low on-resistance: 1.5Ω
Supply voltage: 1.5V ~ 5.5V
3dB bandwidth: 700MHz
Rail-to-rail signal range
Break-before-make switching
Low quiescent current over extended control input range
