TECH PUBLICDatasheet (PDF)

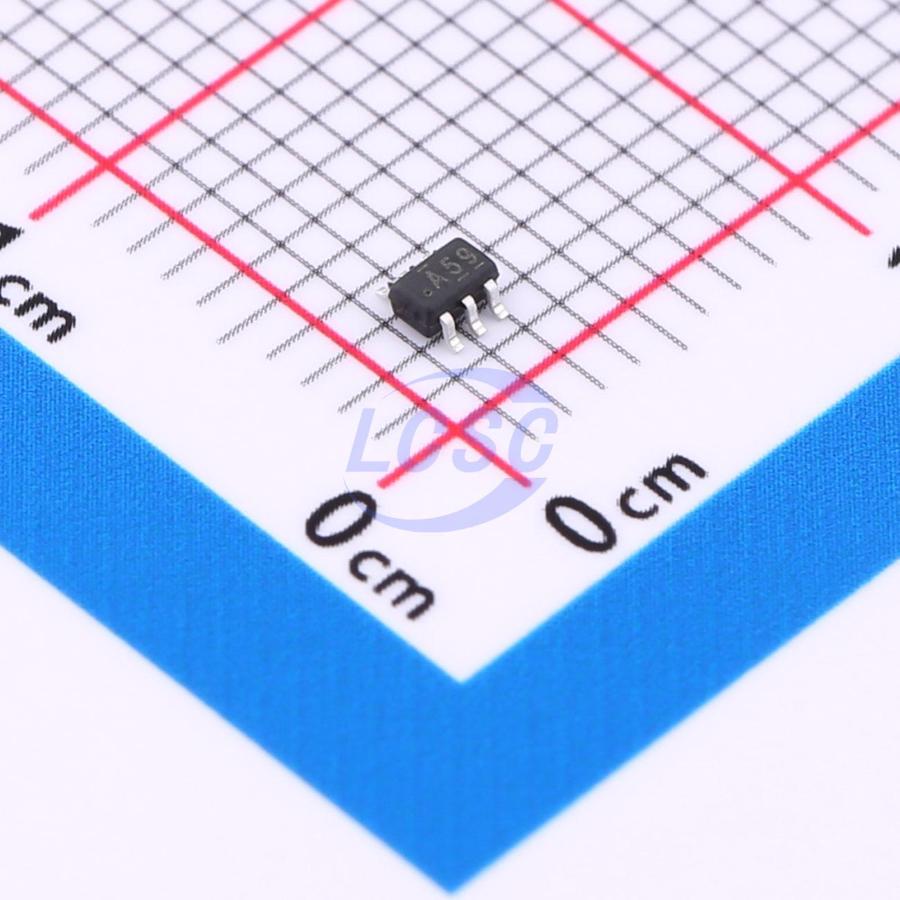

FSA4159P6X-TP
800mΩ 1.5V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers
SOT-363RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FSA4159P6X-TP
- Store part #
- C46472232
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C46472232
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.69 | ₹98.45 |
| 50+ | ₹17.20 | ₹860.00 |
| 150+ | ₹16.13 | ₹2,419.50 |
| 500+ | ₹14.79 | ₹7,395.00 |
| 3,000+ | ₹14.20 | ₹42,600.00 |
| 6,000+ | ₹13.84 | ₹83,040.00 |
5 × ₹19.69
₹98.45
excl. GST
₹116.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FSA4159P6X-TP
₹98.45 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 800mΩ
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, R0n = 0.8Ω (TYP)
- 1.8V Logic Compatible
- Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-Isolation: -100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @200MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2μA)
- With Very Wide Supply Range (1.5V ~ 5.5V)
