Full-Way

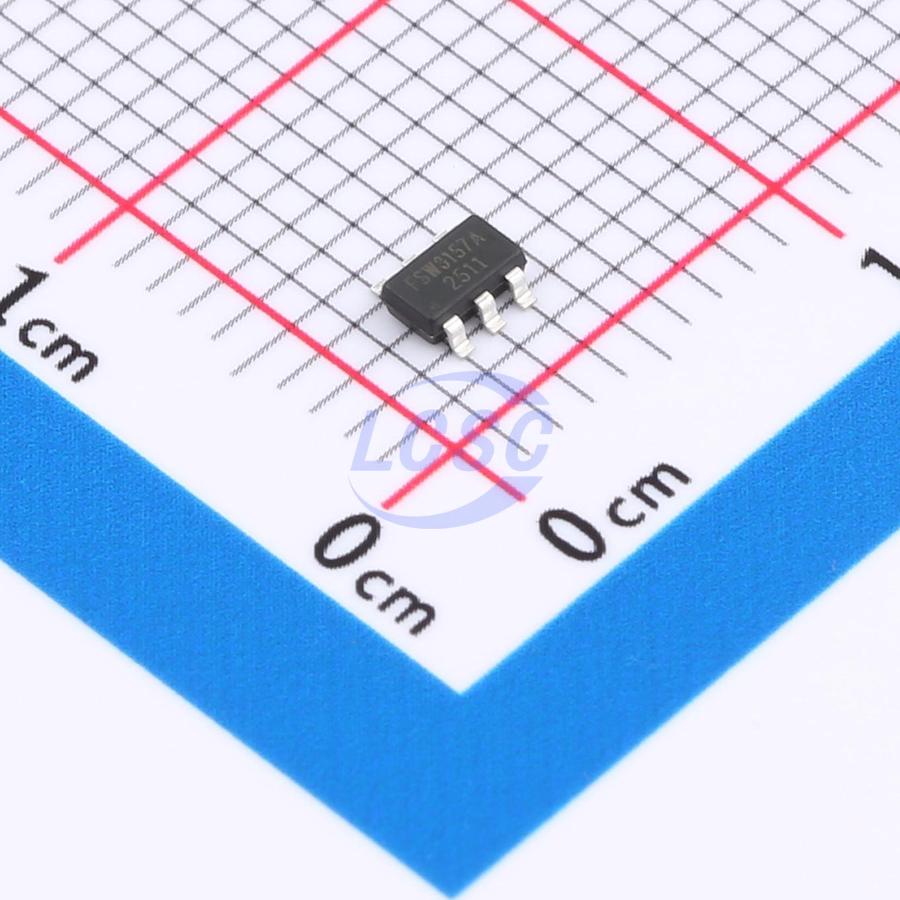

FSW3157AYSOT236G/TR

1 Circuit IC SWITCH 2:1 9.5Ω SOT-23-6

SOT-23-6ROHS CompliantActive

Low-voltage SPDT analog switch

Manufacturer: Full-Way
Manufacturer part #: FSW3157AYSOT236G/TR
Store part #: C48994855
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,430 in stock

#C48994855

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.67	₹66.70
100+	₹5.32	₹532.00
300+	₹4.63	₹1,389.00
3,000+	₹3.96	₹11,880.00
6,000+	₹3.55	₹21,300.00
9,000+	₹3.35	₹30,150.00

Quantity (min 10, multiples of 10)

10 × ₹6.67

₹66.70

excl. GST

₹78.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FSW3157AYSOT236G/TR

₹66.70 for 10 + GST

Specifications

Features: Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 9.5Ω
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.044 g

Overview

The FSW3157A is a single-channel, bidirectional, SPDT CMOS analog switch designed for single-supply operation from 1.8V to 5.5V. It features high bandwidth (-3dB @900MHz) and low on-resistance (typical 9.5Ω), targeting audio signal switching applications. The device guarantees excellent channel-to-channel on-resistance matching and flat on-resistance across the full signal range, delivering superior linearity and low distortion when switching audio signals. This product is available in green SOT23-6 and SOT363 packages.
