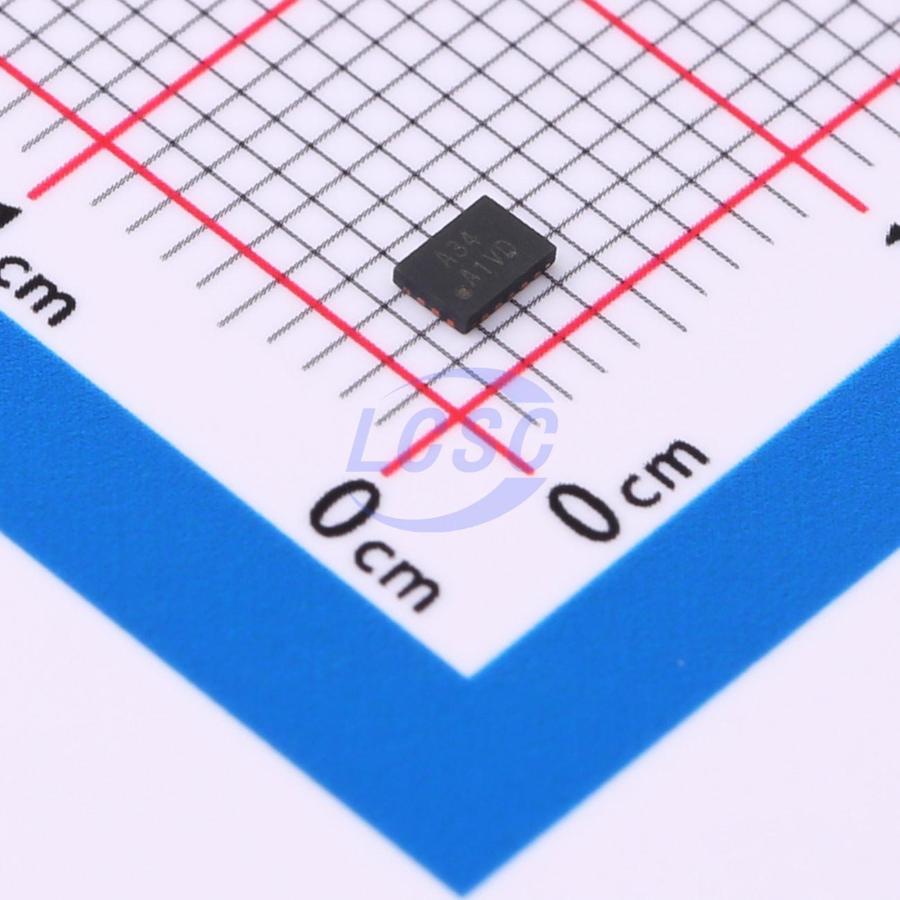

FSW3410YQFN18G/TR
2 10Gbps USB 3.1 QFN-18L(2x2.8) Interface Controllers RoHS
FSW3410 Two Channel Differential 2:1/1:2 USB 3.1 Super Speed 10Gbps Mux/DeMux
- Manufacturer
- Full-Way
- Manufacturer part #
- FSW3410YQFN18G/TR
- Store part #
- C41370613
- Package / case
- QFN-18L(2x2.8)
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,568 in stock
#C41370613
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.05 | ₹71.05 |
| 10+ | ₹57.30 | ₹573.00 |
| 30+ | ₹50.22 | ₹1,506.60 |
| 100+ | ₹43.35 | ₹4,335.00 |
| 500+ | ₹39.28 | ₹19,640.00 |
| 1,000+ | ₹37.14 | ₹37,140.00 |
1 × ₹71.05
₹71.05
excl. GST
₹83.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FSW3410YQFN18G/TR
₹71.05 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Voltage - Supply
- 1.5V~5V
- Number of ports
- 2
- Features
- ESD protection;Low-power mode
- Data Rate
- 10Gbps
- Quiescent Supply Current
- 28uA
- USB Protocol
- USB 3.1
- Current - Supply
- 28uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The FSW3410 is a high-speed bidirectional passive switch configurable as a multiplexer or demultiplexer, designed for USB Type-C applications supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on the state of the SEL control pin, the device switches differential channels between Port A or Port B and the COM port. The FSW3410 is a general-purpose analog differential passive switch suitable for any high-speed interface application requiring a common-mode voltage range of 0 to 2V and differential signal amplitudes up to 1800mVpp. It employs adaptive tracking technology to ensure consistent channel characteristics across the entire common-mode voltage range. The device's excellent dynamic performance enables high-speed switching with minimal eye diagram degradation and negligible added jitter. Operating power consumption is below 2mW, with a shutdown mode accessible via the EN pin that reduces power consumption to below 20µW.
Applications
- USB Type-C ecosystem
- Desktop and laptop PCs
- Server/Storage Area Networks
- PCI Express backplane
- Shared I/O ports
Key features
- 2 differential channel 1:2/2:1 multiplexer/demultiplexer
- USB 3.1 SuperSpeed 10Gbps switch
- High bandwidth: 11GHz @-3dB bandwidth
- Supports AC and DC coupled signals
- Isolation: -40dB @ 5GHz
- Crosstalk: -39dB @ 5GHz
- ESD protection: 2kV HBM
- Low bit-to-bit skew, bidirectional
- Wide VCC operating range: 1.5V ~ 5.5V
