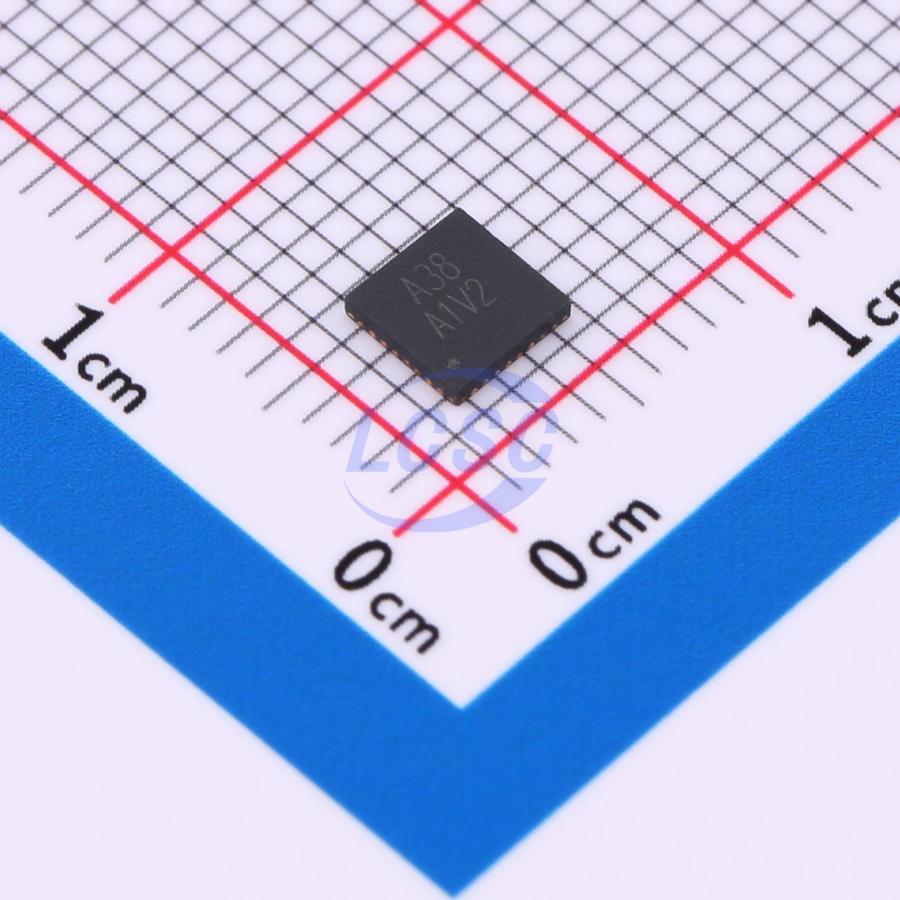

FSW3820YQFN32G/TR

FSW3820 is a high-speed bidirectional passive switch designed for multiplexer or demultiplexer configurations, supporting USB 3.1 Gen 1 data rates and suitable for USB Type-C applications. Depending on the state of the SEL control pin, the device switches differential channels between Port A or Port B and Port COM. FSW3820 is a general-purpose analog differential passive switch for any high-speed interface application requiring a common-mode voltage range of 0 to 2V with differential signal amplitudes up to 1800 mVₚ₋ₚ. It employs adaptive tracking technology to ensure consistent channel characteristics across the entire common-mode voltage range. The device's excellent dynamic performance enables high-speed switching with minimal eye diagram degradation and very low introduced jitter. Operating power consumption is below 2mW, with a shutdown mode enabled via the EN pin that reduces power consumption to below 20μW.

Applications

• USB Type-C ecosystem
• Desktop and laptop computers
• Server/Storage Area Networks
• PCI Express backplane
• Shared I/O ports
• FPD Link II and FPD Link III switching

Key features

• 4 differential channel 2:1 MUX/DEMUX
• USB 3.1 SuperSpeed switch
• High bandwidth: 7.8GHz @ -3dB bandwidth
• Supports AC and DC coupled signals
• Isolation: -31dB @ 5GHz
• Crosstalk: -21dB @ 5GHz
• ESD protection: 2kV HBM
• Low inter-pair skew, bidirectional
