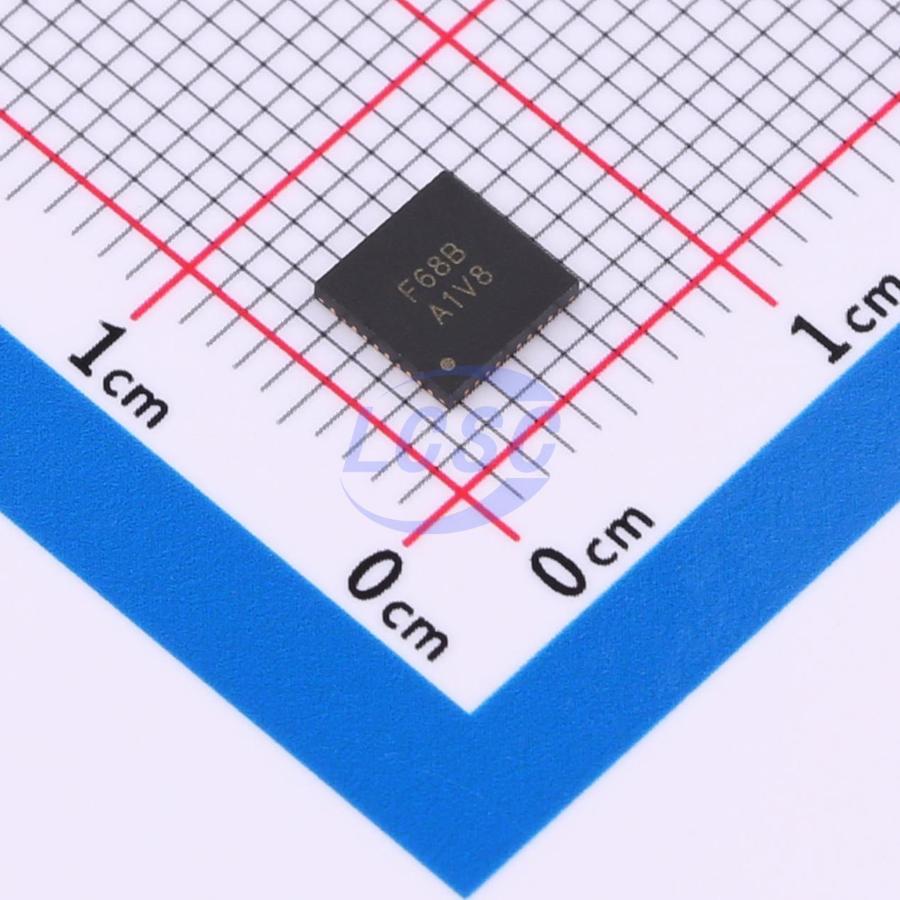

Full-Way

FSW6820YQFN40G/TR

3 Circuit IC SWITCH 4:1 13.4Ω QFN-40L-EP(5x5)

QFN-40L-EP(5x5)ROHS CompliantActive

Three-Channel Differential 4:1 SuperSpeed & USB 2.0 Mux/DeMux

Manufacturer: Full-Way
Manufacturer part #: FSW6820YQFN40G/TR
Store part #: C32713322
Package / case: QFN-40L-EP(5x5)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,609 in stock

#C32713322

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹152.09	₹152.09
10+	₹137.54	₹1,375.40
30+	₹129.50	₹3,885.00
100+	₹120.37	₹12,037.00
500+	₹112.34	₹56,170.00
1,000+	₹110.59	₹1,10,590.00

Quantity (min 1)

1 × ₹152.09

₹152.09

excl. GST

₹179.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

FSW6820YQFN40G/TR

₹152.09 for 1 + GST

Specifications

Features: Bidirectional analog channel;Channel combination connection
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~4.5V
Number of Channels: 3
Ron: 13.4Ω
Propagation Delay: 250ps
Con: 1.5pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

FSW6820 is a high-speed bidirectional passive switch for mux or demux configurations. It is designed for USB Type-C applications, supporting switching among four differential signals such as "USB SuperSpeed + USB High Speed." Based on control pins SEL1 and SEL2, the device provides differential channel switching between Port A, Port B, or Port C and Port COM. FSW6820 is a general-purpose analog differential passive switch suitable for any high-speed interface application requiring a common-mode voltage range of 0 to 2 V and differential signal amplitudes up to 1800 mVpp. It employs adaptive tracking technology to ensure consistent channel characteristics across the entire common-mode voltage range. The device's excellent dynamic performance enables high-speed switching with minimal eye diagram degradation and ultra-low added jitter. Operating power consumption is below 2 mW, with a shutdown mode enabled via the EN pin, reducing shutdown power consumption to below 20 µW.
