Full-Way

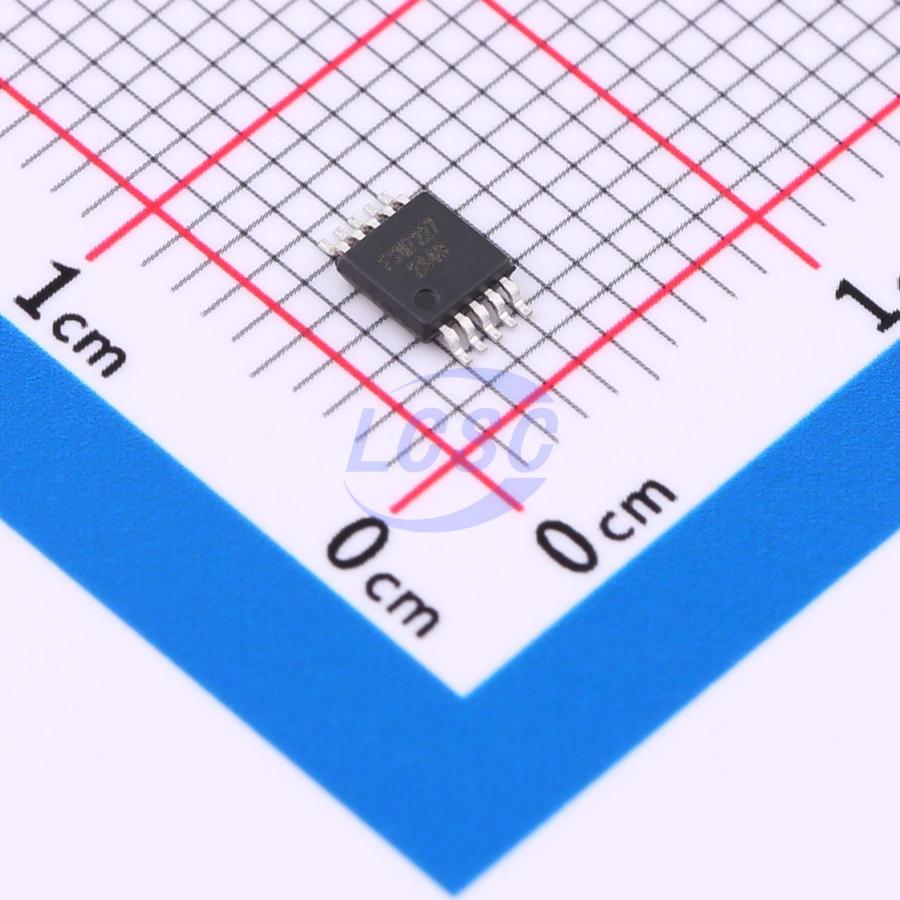

FSW7227YMS10G/TR

IC SWITCH 2:1 10Ω MSOP-10

MSOP-10ROHS CompliantActive

Dual 2:1 USB2.0 Mux/De-Mux With DC 30V Over-Voltage Protection

Manufacturer: Full-Way
Manufacturer part #: FSW7227YMS10G/TR
Store part #: C32713318
Package / case: MSOP-10
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,490 in stock

#C32713318

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.63	₹103.15
50+	₹16.25	₹812.50
150+	₹14.38	₹2,157.00
500+	₹12.04	₹6,020.00
3,000+	₹10.99	₹32,970.00
6,000+	₹10.37	₹62,220.00

Quantity (min 5, multiples of 5)

5 × ₹20.63

₹103.15

excl. GST

₹121.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FSW7227YMS10G/TR

₹103.15 for 5 + GST

Specifications

Features: Fault protection;Power-off isolation;Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 10Ω
Voltage - Supply: 2.5V~5.5V
Propagation Delay: 200ps
Con: 4pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.065 g

Overview

FSW7227 is a bidirectional, low-power, dual-port high-speed USB 2.0 analog switch with integrated protection for USB Type-C systems. The device is configured as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM line use in USB Type-C systems. Integrated D+/D- pin overvoltage protection supports up to DC 30V, with an auto-shutdown circuit to protect downstream system components. GPIO control for SEL and EN is compatible with 1.8V logic levels. The device is available in UQFN 1.4x1.8-10L and MSOP10 packages, is lead-free and halogen-free, and is ideal for mobile and space-constrained applications.

Applications

Any application using USB Type-C or Micro-B connectors
USB 2.0 signal routing
Digital cameras and camcorders
Portable instruments
Set-top boxes
Mobile phones, tablets, and laptops

Key features

Supply voltage range: 2.5 V to 5.5 V
Differential 2:1 or 1:2 switch/multiplexer
D+/D- ports with overvoltage protection up to DC 30V
D+/D- ports with IEC 64000-4-5 surge protection, no external TVS required: ±30 V
System-side clamp voltage pulse less than 9V, duration less than 200 nS
Power-off protection when VDD = 0 V
Typical on-resistance as low as 10 Ω
Insertion loss: -1dB@200MHz, -2dB@650MHz, -3dB@1GHz
On-capacitance: 4.8 pF
Compatible with 1.8V logic input
Standard operating temperature range: -40℃ to 85℃
