JSMSEMIDatasheet (PDF)

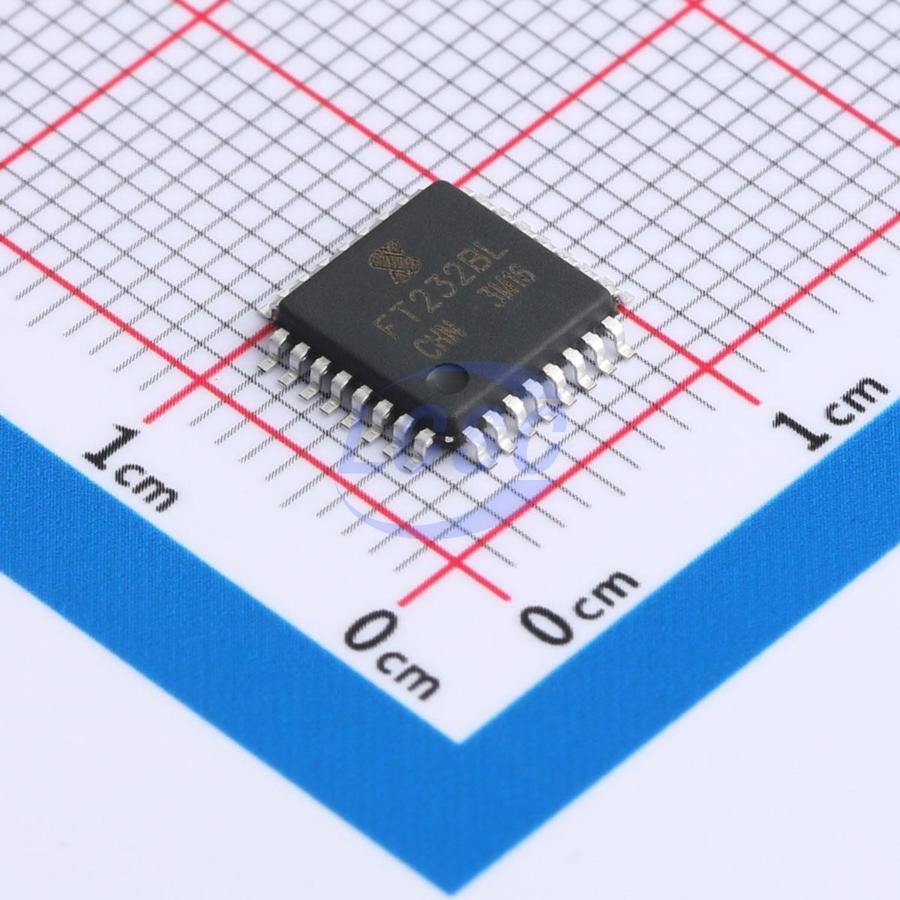

FT232BL-JSM
USB to UART QFP-32(7x7) Interface Controllers RoHS
QFP-32(7x7)ROHS CompliantActive
General USB UART I.C.
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FT232BL-JSM
- Store part #
- C7436405
- Package / case
- QFP-32(7x7)
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,992 in stock
#C7436405
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹258.01 | ₹258.01 |
| 10+ | ₹219.21 | ₹2,192.10 |
| 30+ | ₹194.92 | ₹5,847.60 |
| 100+ | ₹155.68 | ₹15,568.00 |
| 500+ | ₹144.41 | ₹72,205.00 |
| 1,500+ | ₹139.63 | ₹2,09,445.00 |
1 × ₹258.01
₹258.01
excl. GST
₹304.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
FT232BL-JSM
₹258.01 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Voltage - Supply
- 4.35V~5.25V;3V~5.25V
- Features
- Shutdown mode;Hardware flow control support;Programmable baud rate;Power-on reset;FIFO buffer;Built-in clock generator
- Applications Function
- USB to UART
- Quiescent Supply Current
- 200uA
- USB Protocol
- USB 1.1;USB 2.0
- Current - Supply
- 25mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
FT232BL is a general purpose USB UART I.C. - UART with integrated level shifter and control signals for interfacing to 5V and 3.3V logic
Key features
- Integrated 3.3V regulator for USBIO
- Integrated power-on reset circuit
- Integrated 6MHz–48MHz clock multiplier PLL
- UART I/F supports 7/8 data bits, 1/2 stop bits, and odd/even/mark/space/no parity
- USB bulk or isochronous data transfer mode
- 4.35V to 5.25V single supply operation
- Data rate 300 => 3M baud (TTL)
- Data rate 300 => 1M baud (RS232)
- UHCI/OHCI/EHCI host controller compatible
- USB 1.1 and USB 2.0 compatible
- Data rate 300 => 3M baud (RS422/RS485)
- USB VID, PID, serial number, and product string stored in external EEPROM
- 384-byte receive buffer / 128-byte transmit buffer for high data throughput
- EEPROM programmable via USB
- Compact lead-free RoHS-compliant 32-LD LQFP
- Adjustable RX buffer timeout package
- Full hardware or X-On/X-Off handshaking
- Built-in support for event character and line break conditions
- RS485 automatic transmit buffer control
- USB suspend/resume support via SLEEP# and RI# pins
- High-power USB bus-powered device support via PWREN# pin
