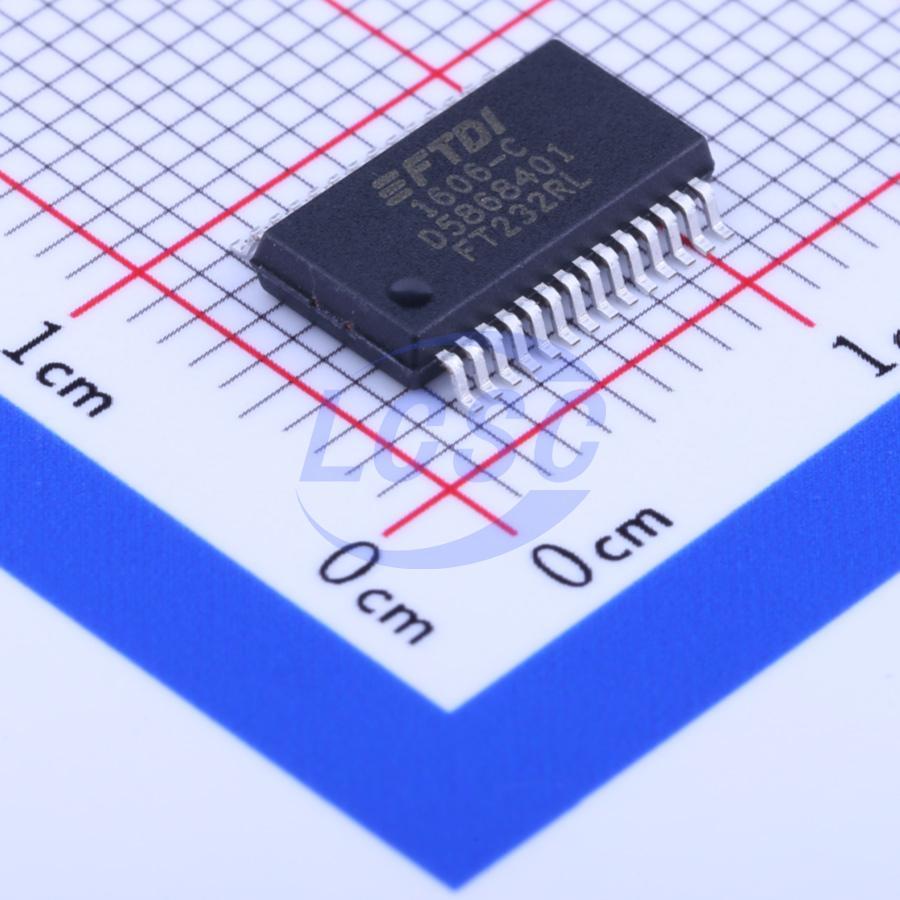

FT232RL-REEL

USB to UART 3Mbps USB 2.0 SSOP-28-208mil Interface Controllers RoHS

PopularSSOP-28-208milROHS3 CompliantActive

USB UART interface integrated circuit device with clock generator output and security dongle function

Manufacturer: FTDI
Manufacturer part #: FT232RL-REEL
Store part #: C8690
Package / case: SSOP-28-208mil
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,583 in stock

#C8690

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹969.15	₹969.15
10+	₹861.15	₹8,611.50
30+	₹791.83	₹23,754.90
100+	₹725.12	₹72,512.00

Quantity (min 1)

1 × ₹969.15

₹969.15

excl. GST

₹1,143.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

FT232RL-REEL

₹969.15 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Voltage - Supply: 3.3V~5.25V
Features: Hardware flow control support;Programmable baud rate;Power-on reset;FIFO buffer;Built-in clock generator
Applications Function: USB to UART
Data Rate: 3Mbps
Quiescent Supply Current: 70uA
USB Protocol: USB 2.0
Current - Supply: 15mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.716 g

Overview

The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device. The FT232R adds two new functions compared with its predecessors, effectively making it a “3-in-1” chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied. The FT232R is available in Pb-free (RoHS compliant) compact 28-Lead SSOP and QFN-32 packages.

Applications

USB to RS232 / RS422 / RS485 Converters
Upgrading Legacy Peripherals to USB
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU / PLD / FPGA based designs to USB
USB Audio and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader / Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
USB Software / Hardware Encryption Dongles

Key features

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
256 byte receive buffer and 128 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.
In-built support for event characters and line break condition.
New USB FTDIChip-ID feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O configuration.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend and resume.
Support for bus powered, self powered, and highpower bus powered USB configurations.
Integrated 3.3V level converter for USB I/O.
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
FT232RNL-REEL#C5246810FTDI · SSOP-28	FTDI	SSOP-28	6,496	₹976.76 · 6,496 in stock	View
HT8232RSZ#C2912226HTCSEMI · SSOP-28-208mil	HTCSEMI	SSOP-28-208mil	694	₹777.79 · 694 in stock	View
FT232RL-REEL-S#C49018905JSMSEMI · SSOP-28	JSMSEMI	SSOP-28	5,901	₹230.56 · 5,901 in stock	View
CY7C64225-28PVXCT#C2952830Infineon/CYPRESS · SSOP-28	Infineon/CYPRESS	SSOP-28	7	₹682.63 · 7 in stock	View
FT232RNL-TUBE#C6950348FTDI · SSOP-28	FTDI	SSOP-28	On request	Price on request	Quote

Questions about FT232RL-REEL

What core interface translation features and integrated peripheral functions define the FT232RL-REEL?

The FT232RL-REEL is a single-chip USB 2.0 Full Speed (12 Mbps) to asynchronous serial data (UART) interface IC. It features a fully integrated 1024-bit internal EEPROM for storing USB VID, PID, serial number, product description strings, and configuration descriptors, an integrated 12 MHz oscillator that eliminates the need for an external crystal, and configurable clock output options of 6 MHz, 12 MHz, 24 MHz, and 48 MHz. The device supports asynchronous data transfer rates from 300 baud up to 3 Mbaud at TTL/CMOS levels and includes a 256-byte receive FIFO buffer and a 128-byte transmit FIFO buffer for high data throughput.

What input supply ranges, power consumption profiles, and flexible logic levels govern IC operation?

The device operates from a single main supply voltage (VCC) of 3.3 V to 5.25 V, with a typical operating current of 15 mA and a typical USB suspend current of 70 μA. An integrated 3.3 V LDO regulator provides up to 50 mA for external circuitry if required and can also supply the VCCIO pin. The UART interface logic level is configurable through VCCIO, which supports supply voltages from 1.8 V to 5.25 V, allowing direct interfacing with a wide range of logic families without external level shifters.

Which physical footprint, terminal count, and mechanical dimensions specify the SSOP-28 package?

The FT232RL is supplied in a 28-pin Shrink Small Outline Package (SSOP-28). The package body measures 10.20 mm × 5.30 mm (approximately 7.80 mm across the leads), has a maximum height of 2.00 mm, and uses a 0.65 mm lead pitch. The package is Pb-free and RoHS compliant.

What does the FT232RL part designation indicate?

The FT232R designates FTDI's USB-to-UART bridge device family with integrated EEPROM and clock circuitry. The "L" suffix identifies the 28-pin SSOP package, while the related FT232RQ version is supplied in a QFN-32 package. The datasheet does not define the meaning of the "-REEL" suffix or specify reel dimensions or packing quantities.

What operating temperature range and solder reflow conditions apply to the FT232RL?

The FT232RL operates over an industrial ambient temperature range of −40°C to +85°C. It is supplied in a Pb-free, RoHS-compliant package and supports standard lead-free solder reflow with a peak temperature of 260°C. The device is MSL 3 compliant in accordance with IPC/JEDEC J-STD-033A. The datasheet does not specify an ESD rating.
