FTDIDatasheet (PDF)

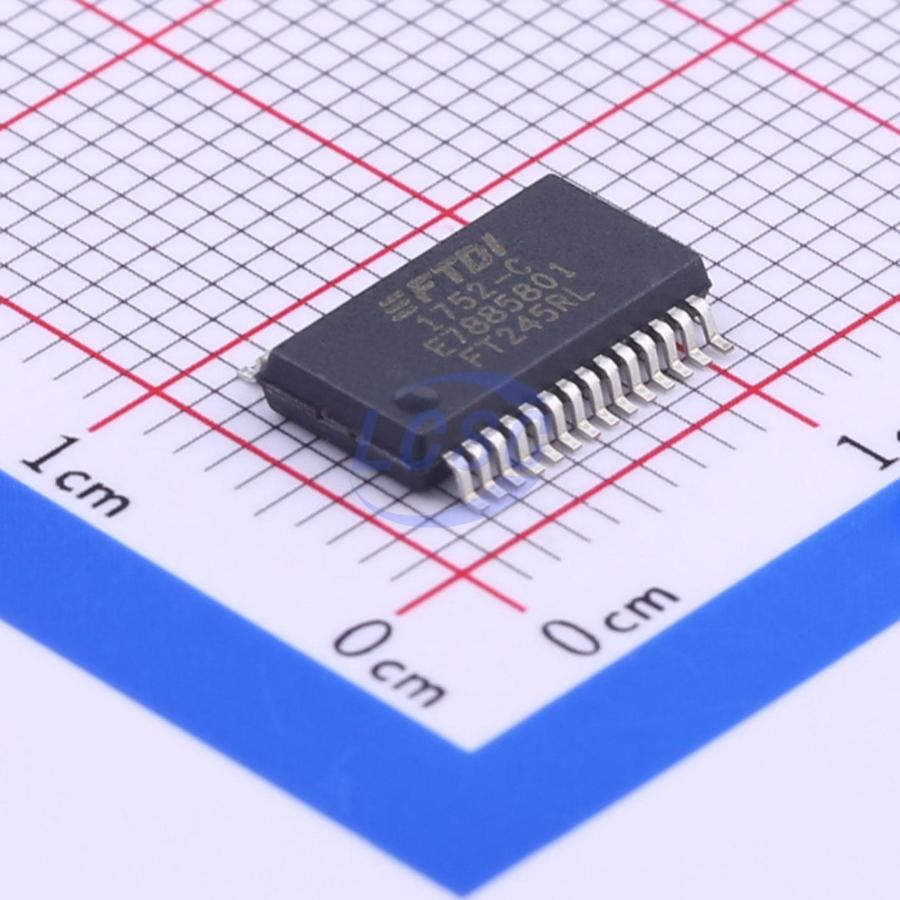

FT245RL-REEL
USB to FIFO USB 2.0 SSOP-28-208mil Interface Controllers RoHS
SSOP-28-208milROHS3 CompliantActive
USB to parallel FIFO data transfer interface
- Manufacturer
- FTDI
- Manufacturer part #
- FT245RL-REEL
- Store part #
- C12633
- Package / case
- SSOP-28-208mil
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,057 in stock
#C12633
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,490.88 | ₹1,490.88 |
| 10+ | ₹1,316.82 | ₹13,168.20 |
| 30+ | ₹1,145.37 | ₹34,361.10 |
| 100+ | ₹1,056.51 | ₹1,05,651.00 |
1 × ₹1,490.88
₹1,490.88
excl. GST
₹1,759.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FT245RL-REEL
₹1,490.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V~5.25V
- Features
- FIFO buffer;Power-on reset;Wake-up function;Built-in clock generator
- Applications Function
- USB to FIFO
- Quiescent Supply Current
- 70uA
- USB Protocol
- USB 2.0
- Current - Supply
- 15mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.558 g
Overview
The FT245R is a USB to parallel FIFO interface.
Applications
- Upgrading Legacy Peripherals to USB
- Cellular and Cordless Phone USB data transfer cables and interfaces
- Interfacing MCU/PLD/FPGA based designs to USB
- USB Audio and Low Bandwidth Video data transfer
- PDA to USB data transfer
- USB Smart Card Readers
- USB Instrumentation
- USB Industrial Control
- USB MP3 Player Interface
- USB FLASH Card Reader and Writers
- Set Top Box PC - USB interface
- USB Digital Camera Interface
- USB Hardware Modems
- USB Wireless Modems
- USB Bar Code Readers
- USB Software and Hardware Encryption Dongles
Key features
- Single chip USB to parallel FIFO bidirectional data transfer interface
- Entire USB protocol handled on the chip
- No USB specific firmware programming required
- Fully integrated 1024 bit EEPROM storing device descriptors and FIFO I/O configuration
- Fully integrated USB termination resistors
- Fully integrated clock generation with no external crystal required
- Data transfer rates up to 1Mbyte / second
- 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput
- FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases
- Unique USB FTDIChip-ID feature
- Configurable FIFO interface I/O pins
- Synchronous and asynchronous bit bang interface options
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O
- Integrated level converter on FIFO interface for interfacing to external logic running at between +1.8V and +5V
- True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input
- Configurable I/O pin output drive strength
- Integrated power-on-reset circuit
- Fully integrated AVCC supply filtering - no external filtering required
- +3.3V (using external oscillator) to +5.25V (using internal oscillator) Single Supply Operation
- Low operating and USB suspend current
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 Full Speed compatible
- -40°C to 85°C extended operating temperature range
- Available in compact Pb-free 28 Pin SSOP and QFN32 packages (both RoHS compliant)
