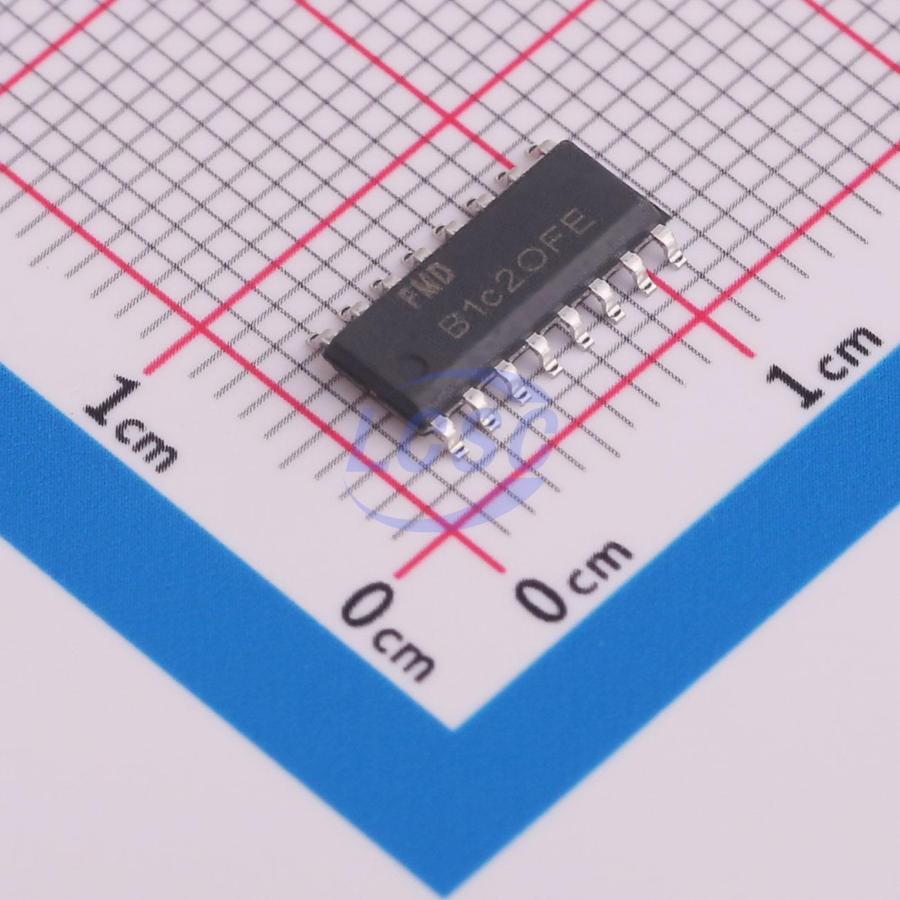

FT60F023-RB

Key features

• PIC16-like instruction set
• 8-level hardware stack x11bit
• 2T or 4T instruction cycle
• 2Kx14b program memory (16bytes/page)
• 256x8b data EEPROM (16bytes/page)
• Data EEPROM in-application programming
• 128x8b SRAM
• 1 x Timer0 with 8-bit prescaler
• 1 x Timer2 with 8-bit prescaler
• WDT with 7-bit prescaler, overflow period approx. 16 - 2048ms
• Power-up timer PWRT
• Low-power mode SLEEP
• Multiple wake-up sources: INT, port change interrupt, WDT, data EEPROM write complete, etc.
• Built-in high-speed 16M RC oscillator
• Built-in low-speed 32K RC oscillator
• External crystal 16M or 32K support, and clock failure detection in external clock mode
• Dual-speed startup mode (crystal or external clock mode)
• 2 built-in high-speed, high-precision comparators
• Programmable on-chip reference voltage
• Comparator output directly available
• Up to 16 general-purpose I/Os, 18 pins
• 7 I/Os with individual pull-up control
• Port change interrupt, RA0 - RA7
• In-circuit serial programming (ICSP) support
• In-circuit debug program space protection support
• Operating voltage range: 2.0V - 5.5V
• Maximum clock frequency: 16MHz
• FSYS := 8MHz: 2.0V - 5.5V
• FSYS := 16MHz: 2.7V - 5.5V
• Package types: SOP8、DIP8、SSOP10、SOP14、DIP14、SOP16、DIP16、SOP18、DIP18、TSSOP20
