FMD(Fremont Micro Devices)

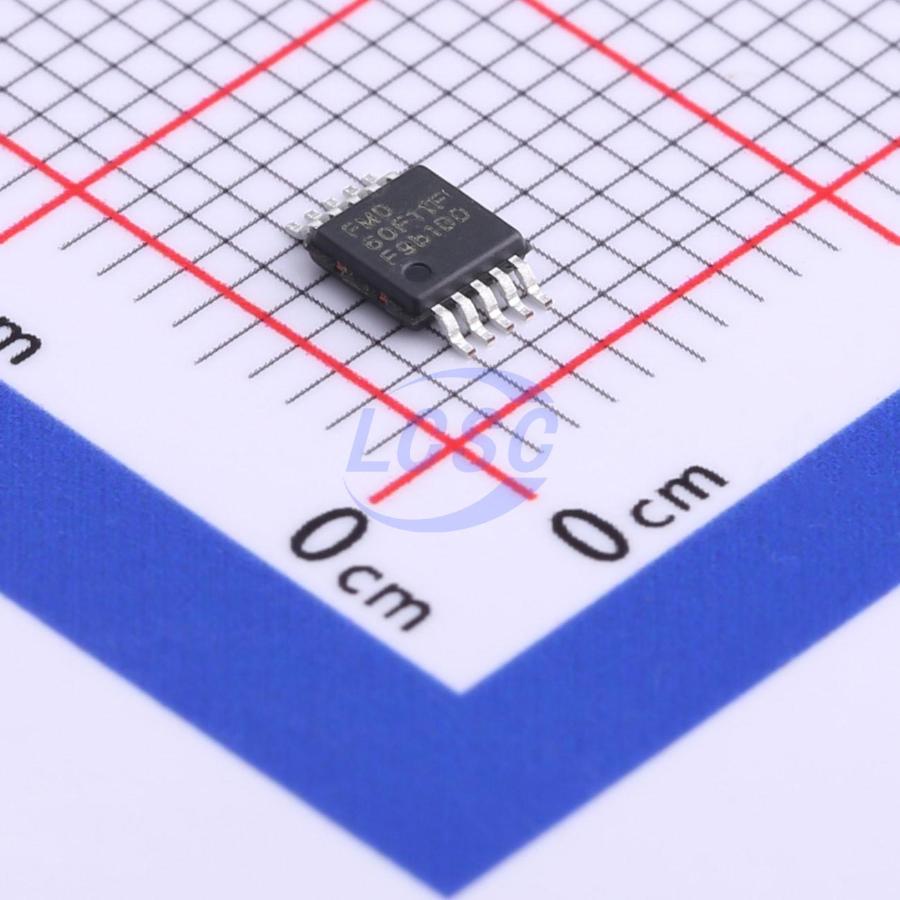

FT60F11F-MRB

RISC 8 Bit 16MHz MSOP-10 Microcontrollers

MSOP-10RoHSActive

High-performance RISC CPU

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT60F11F-MRB
Store part #: C708783
Package / case: MSOP-10
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,985 in stock

#C708783

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.46	₹152.30
50+	₹24.34	₹1,217.00
200+	₹21.74	₹4,348.00
500+	₹18.46	₹9,230.00
2,000+	₹17.01	₹34,020.00
5,000+	₹16.13	₹80,650.00

Quantity (min 5, multiples of 5)

5 × ₹30.46

₹152.30

excl. GST

₹179.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per tube

FT60F11F-MRB

₹152.30 for 5 + GST

Specifications

Number of I/O: 8
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.9V~5.5V
Program Memory Type: FLASH
EEPROM: 256Byte
Program Storage Size: 3.5KB
CPU Core: RISC
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.076 g

Overview

Key features

Only 35 instructions to learn
All single-cycle instructions (except branch/jump)
Selectable instruction cycles: 2T/4T, F_SYS = 16MHz, VDD ≥ 2.7V
8-level hardware stack architecture
Program ROM: 2k x 14bits (FT60F12X)
Data RAM: 128 x 8bits (FT60F12X)
Data EEPROM: 256 x 8bits
Two internal clocks: 16MHz high-speed high-precision HIRC, 32kHz low-speed low-power LIRC
Crystal oscillator and external clock input, max. 20MHz
Crystal clock missing detection
Dual-speed clock startup in crystal clock configuration
Selectable system clock source
16-bit watchdog with 7-bit prescaler
Optional external crystal clock for precise timing
Power-on delay counter
Low-power SLEEP mode
Wide operating voltage range: 1.9V - 5.5V
Industrial temperature range: -40 - 85°C
Maximum clock frequency: 16MHz
VF_SYS = 8MHz: 1.9V - 5.5V
VF_SYS = 16MHz: 2.7V - 5.5V
LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1V
LVD: 2.0, 2.4, 2.8, 3.0, 3.6, 4.0V
External voltage detection when used as comparator
Detection output usable as PWM brake source
ISP and OCD support
3 hardware breakpoints
Software reset, single-step, pause, step-over, etc.
Program ROM protection
Packages: SOP8, SOP14, SOP16, MSOP10, SOT23-6
Up to 14 general-purpose IOs: PORTA and PORTC
Port change interrupt, PA0 – PA7
14 pins with independent pull-up and pull-down, simultaneously enabled for 1/2VDD bias
Programmable sink current (56/79mA) and source current (8/31mA, 4/31mA, 4/8/31mA)
Direct LED segment display driving, eliminates current-limiting resistors
External reset pin: PA5
Timer0 - 8-bit: 8-bit prescaler, selectable clock source
Timer2 - 16-bit: 4-bit prescaler and 4-bit postscaler
Internal slow clock measurement
3-channel PWM with independent polarity and independent duty cycle
Complementary PWM output with dead-band control, mappable to up to 6 IOs
Duty cycle and period register double-buffered
Clock sources: HIRC, crystal clock, 2x HIRC, 2x crystal clock, instruction clock, system clock, LIRC
Operational in sleep mode
Brake input
Buzzer mode
Single-pulse mode
