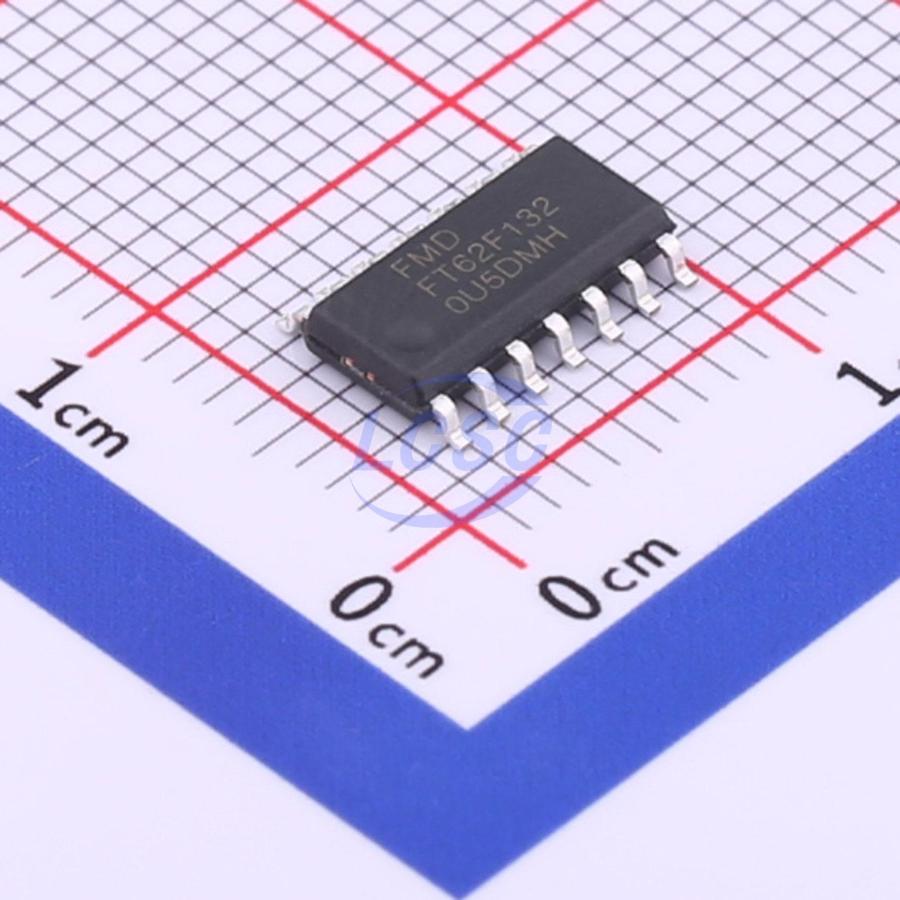

FT62F132-RB

Key features

• Only 35 instructions to learn; all instructions execute in a single cycle (except branch/jump)
• Memory architecture: Program ROM: 3k × 14bits, Data RAM: 256 × 8bits, Data EEPROM: 128 × 8bits
• 8-level hardware stack; selectable instruction cycle: 2T/4T, 125ns @ 2T, 16MHz, VDD ≥ 2.7V
• Operating temperature range: -40℃ ~ 85℃
• Wide operating voltage range: 1.9V ~ 5.5V
• Clock sources: Two internal clocks — 13.5M/16M high-speed, high-accuracy HIRCi with software trimming support (2.5‰ per step); 32k low-speed, low-power LIRC; crystal oscillator and external clock input with crystal clock missing detection; dual-speed clock startup in crystal clock configuration; slow clock cycle measurement
• 16-bit watchdog timer with 7-bit prescaler, selectable clock source
• Power-on reset delay counter
• Low-power SLEEP mode; system clock selectable to remain running or shut down
• Low-voltage reset LVR: 2.0V / 2.2V / 2.5V / 2.8V / 3.1V / 3.6V / 4.1V
• Low-voltage detection LVD: 1.2V / 2.0V / 2.4V / 2.7V / 3.0V / 3.3V / 3.6V / 4.0V, or external input voltage
• ISP and in-circuit debug OCD support: 3 hardware breakpoints, soft reset, single-step, pause, step-over, etc.
• Program ROM partition protection
• Package options: SOP8, MSOP10, SOP14, SOP16, SOP20, TSSOP20, DIP20, QFN20
• 18 general-purpose IOs with individually controlled direction: PORTA, PORTB, PORTC
• 8 wake-up pins: PORTA
• 18 pins with open-drain output, individually controlled
• 18 pins with pull-up, individually controlled
• 18 pins with pull-down, individually controlled
• ADC input channels: AN0–7; 8 programmable source-current pins PC0–1, PB2–7: 3/6/24mA @ 5V; 8 programmable sink-current IOs: max 55mA @ 5V; pin alternate function remapping support
• 1× 12-bit SAR ADC: 8 external channels + 3 internal reference voltage channels; internal reference: VDD, 0.5V, 2V, 3V; external reference: VREFP, VREFN
• Timer0: 8-bit timer with 8-bit prescaler, selectable clock source
• Timer1: 12-bit timer, selectable clock source
• Timer2: 16-bit timer with 4-bit prescaler and 4-bit postscaler; internal slow clock measurement; 4 independent PWM channels with individually configurable polarity and duty cycle; 1 complementary PWM output pair with dead-band control, mappable to up to 6 IOs; double-buffered duty cycle and period registers; clock sources: HIRC, crystal clock, 2× HIRC, 2× crystal clock, instruction clock, system clock, LIRC; operational in sleep mode; brake input; Buzzer mode; single-pulse mode
