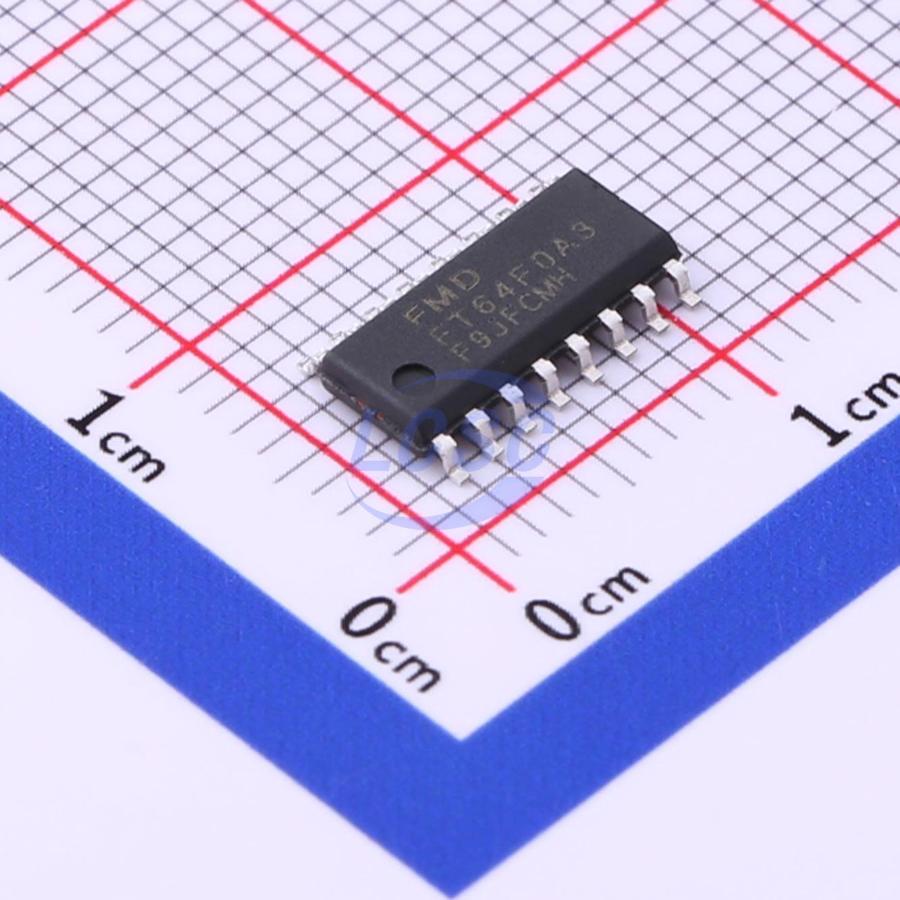

FMD(Fremont Micro Devices)

FT64F0A3-RB

RISC 8 Bit 16MHz SOP-16 Microcontrollers

SOP-16RoHSActive

High-performance RISC CPU microcontroller

Manufacturer: FMD(Fremont Micro Devices)
Manufacturer part #: FT64F0A3-RB
Store part #: C708802
Package / case: SOP-16
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,649 in stock

#C708802

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹67.27	₹67.27
10+	₹53.30	₹533.00
50+	₹47.31	₹2,365.50
100+	₹39.93	₹3,993.00
500+	₹36.53	₹18,265.00
1,000+	₹34.54	₹34,540.00

Quantity (min 1)

1 × ₹67.27

₹67.27

excl. GST

₹79.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

FT64F0A3-RB

₹67.27 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 14
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.9V~5.5V
Program Memory Type: FLASH
EEPROM: 128Byte
Program Storage Size: 17.5KB
CPU Core: RISC
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.298 g

Overview

Key features

Expanded to 49 instructions
Instruction cycle options: 1T / 2T / 4T
8MHz, VDD ≥ 1.9V; 16MHz, VDD ≥ 2.7V
Program ROM: 10k×14 bits
Data RAM: 1×8 bits
Data EEPROM: 128×8 bits
Sector-based program code protection (sector = 1k×14 bits)
IAP supported, VDD ≥ 2.7V
16-level hardware stack
Operating temperature range: -40 - 85°C
Wide operating voltage range: 1.9 - 5.5V
Two internal clocks: 16M high-speed high-accuracy HIRC, 32k low-speed low-power LIRC
Crystal oscillator and external clock input
Crystal clock missing detection
Dual-speed clock startup under crystal clock configuration
Slow clock period measurement
16-bit watchdog with 7-bit prescaler, selectable clock source
Power-on reset delay counter
Low-power SLEEP mode: system clock selectable to remain active or shut down
LVR: 2.0, 2.2, 2.5, 2.8, 3.1, 3.6, 4.1V
LVD: internal voltage: 2.0, 2.4, 2.8, 3.0, 3.6, 4.0V; or external input detection, usable as comparator
ISP and on-chip debug OCD supported, 3 hardware breakpoints
Software reset, single-step, halt, step-over, etc.
Package options: SOP8, MSOP10, SOP16, SOP20, TSSOP20, QFN20
18 pins with independent direction control
18 pins with independent pull-up control
18 pins with independent pull-down control
18 wake-up pins: edge or level detection
ADC input channels: AN0~AN6, OP amp output
External reset pin: PC0
PORTA programmable source current: 4/29mA@5V
PORTB programmable source current: 8/29mA@5V
PORTC programmable source current: 4/8/29mA@5V
18 programmable sink currents: max. 61mA@5V
Pin alternate function remapping supported
2 x UART
1 x I2C, master/slave
1 x SPI, master/slave, RZ modulation supported
1 x 12-bit SAR ADC, 6 external channels + 1 x 1/4VDD channel + OP1OUT
Internal reference voltage: VDD, 0.5V, 2V, 3V
External reference: VREFP, VREFN
Manual and auto trigger modes, delayed trigger supported
1 x integrated op-amp with offset calibration support
TIM1 - 16-bit: 16-bit timer with 16-bit prescaler, auto-reload, clock sources: system clock, HIRC and multiplied clock (2× crystal or HIRC), LIRC; double-buffered period and duty cycle registers; 4 independent capture/compare/PWM channels; edge-aligned, center-aligned, and one-pulse modes supported; 3 pairs of complementary PWM outputs with dead-time control; leading-edge blanking and fault brake control
TIM2 - 16-bit: 16-bit timer with 15-bit prescaler, auto-reload, clock sources: system clock, HIRC and multiplied clock (2× crystal or HIRC), LIRC; double-buffered period and duty cycle registers; 3 independent capture/compare/PWM channels
TIM4 - 8-bit: basic timer with 8-bit prescaler, selectable clock source
