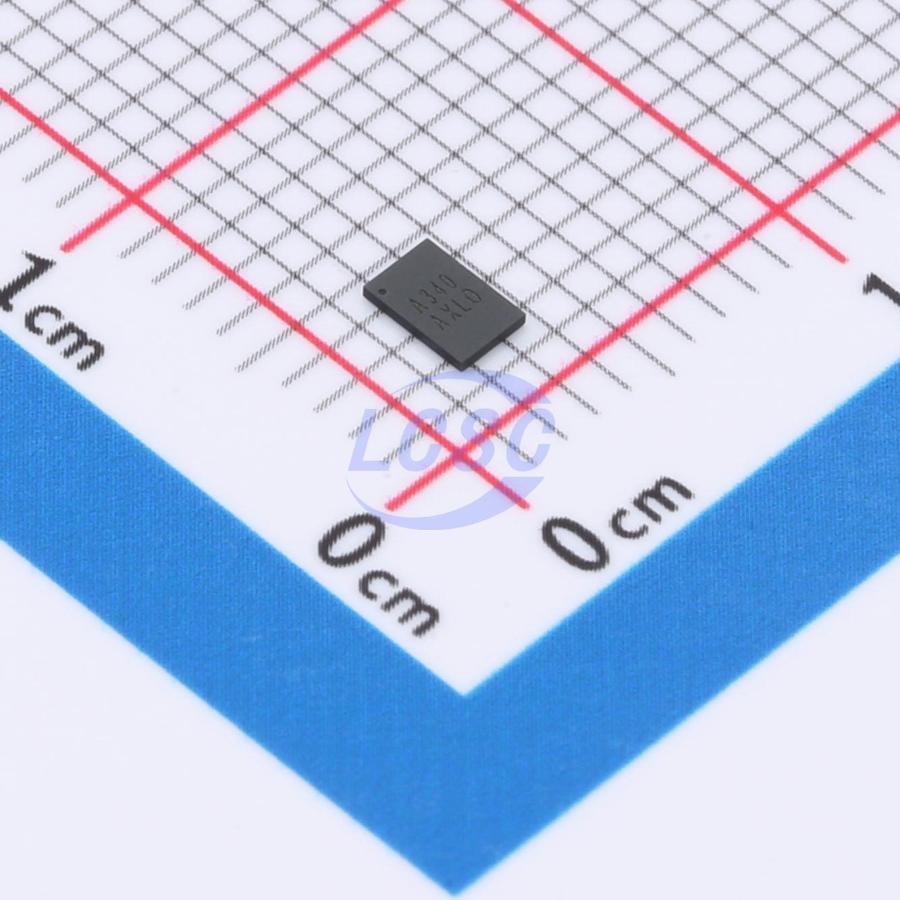

FUSB340TMX-HXY

The FUSB340TMX is a high-speed bidirectional passive switch in a multiplexer or demultiplexer configuration, designed for USB Type-C applications supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on the control pin SEL, the device switches differential channels between port L0 or port L1 and port C0. The FUSB340TMX is a general-purpose analog differential passive switch suitable for any high-speed interface application requiring a common-mode voltage range of 0 to 2V and differential signal amplitudes up to 1.8Vₚ₋ₚ. It employs adaptive tracking technology to ensure consistent channel performance across the entire common-mode voltage range. The device's excellent dynamic characteristics enable high-speed switching with minimal signal eye diagram degradation and very low added jitter. Operating power consumption is less than 2mW, with a shutdown mode accessible via the EN pin that reduces power consumption to less than 20μW. The FUSB340TMX is available in a QFN 2x3 (X2-QFN-18) package that is lead-free and halogen-free, making it ideal for mobile and space-constrained applications.

Applications

• USB Type-C ecosystem
• Desktop and laptop computers
• Server/Storage Area Network
• PCI Express backplane
• Shared I/O ports
• FPD Link II and FPD Link III switching

Key features

• Pin-compatible with ASW3410, D103340, FUSB340
• Wide supply voltage range: 1.5V to 5.5V
• Differential 2:1 or 1:2 switch/multiplexer
• USB 3.1 SuperSpeed 10Gbps switch
• High bandwidth: 5.1GHz at -3dB bandwidth
• Isolation: -24dB at 1.25GHz
• Crosstalk: -34dB at 1.25GHz
• Low inter-pair skew, bidirectional
• ESD protection: 2kV HBM
• Power-off protection when VDD = 0V
• 1.8V compatible logic input
