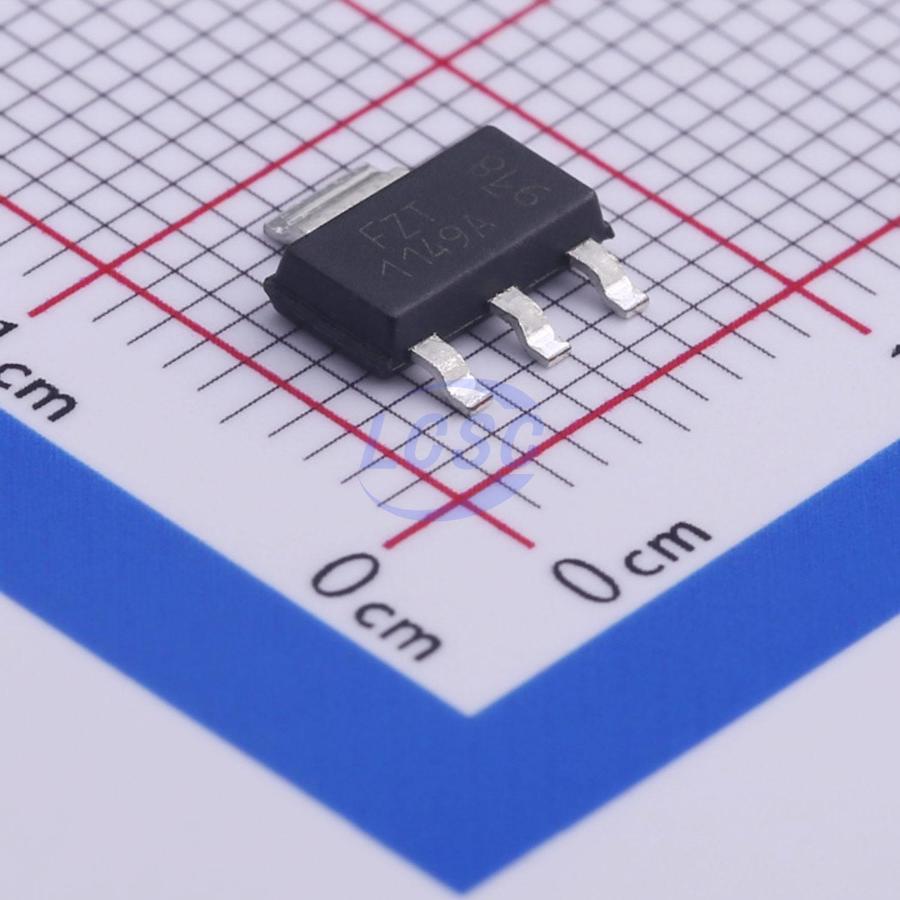

FZT1149ATA
Bipolar (BJT) Transistor PNP 25V 4A 135MHz 1.6W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS PNP 25V 4A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT1149ATA
- Store part #
- C460216
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
135 in stock
#C460216
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.66 | ₹109.66 |
| 10+ | ₹89.28 | ₹892.80 |
| 30+ | ₹79.19 | ₹2,375.70 |
| 100+ | ₹69.11 | ₹6,911.00 |
| 500+ | ₹63.09 | ₹31,545.00 |
| 1,000+ | ₹60.09 | ₹60,090.00 |
1 × ₹109.66
₹109.66
excl. GST
₹129.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
FZT1149ATA
₹109.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 300pA
- Transition frequency(fT)
- 135MHz
- Collector - Emitter Voltage VCEO
- 25V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 195
- Pd - Power Dissipation
- 1.6W
- Current - Collector(Ic)
- 4A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 140mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
Key features
- BVCEO > -25V
- Maximum Continuous Current lC = -4A
- Peak Pulse Current lC = -10A
- High Gain Holds Up hFE > 195 @ lC = -2A
- Very Low Equivalent On-Resistance; RCE(sat) = 130mΩ at -2A
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PBSS4032PZ,115#C551879Nexperia · SOT-223 | Nexperia | SOT-223 | On request | ₹150.03 · 0 in stock | View |
 | PBSS303PZ,135#C456159Nexperia · SOT-223 | Nexperia | SOT-223 | On request | ₹192.17 · 0 in stock | View |
