DIODES

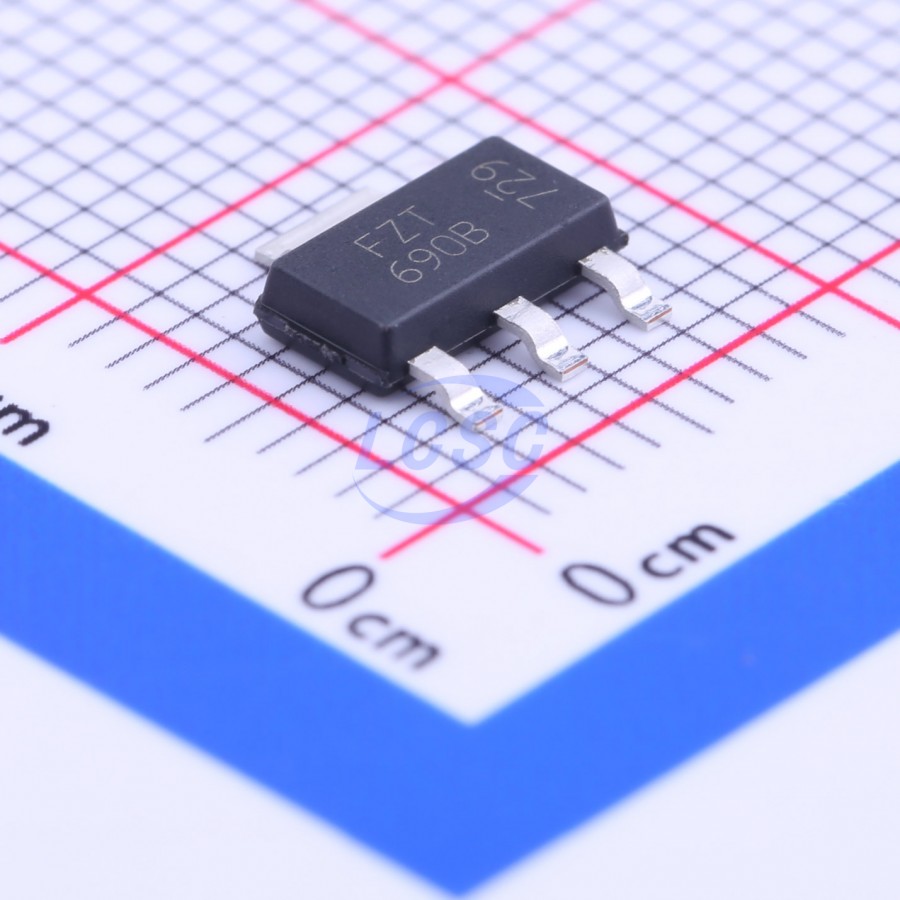

FZT690BTA

Bipolar (BJT) Transistor NPN 45V 3A 150MHz 3W Surface Mount SOT-223

SOT-223ROHS3 CompliantActive

TRANS NPN 45V 3A SOT-223

Manufacturer: DIODES
Manufacturer part #: FZT690BTA
Store part #: C156316
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

140 in stock

#C156316

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹68.31	₹68.31
10+	₹56.37	₹563.70
30+	₹51.17	₹1,535.10
100+	₹44.89	₹4,489.00
500+	₹42.07	₹21,035.00
1,000+	₹40.34	₹40,340.00

Quantity (min 1)

1 × ₹68.31

₹68.31

excl. GST

₹80.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

FZT690BTA

₹68.31 for 1 + GST

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Transition frequency(fT): 150MHz
Collector - Emitter Voltage VCEO: 45V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 150
Current - Collector(Ic): 3A
Pd - Power Dissipation: 3W
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 500mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.232 g
